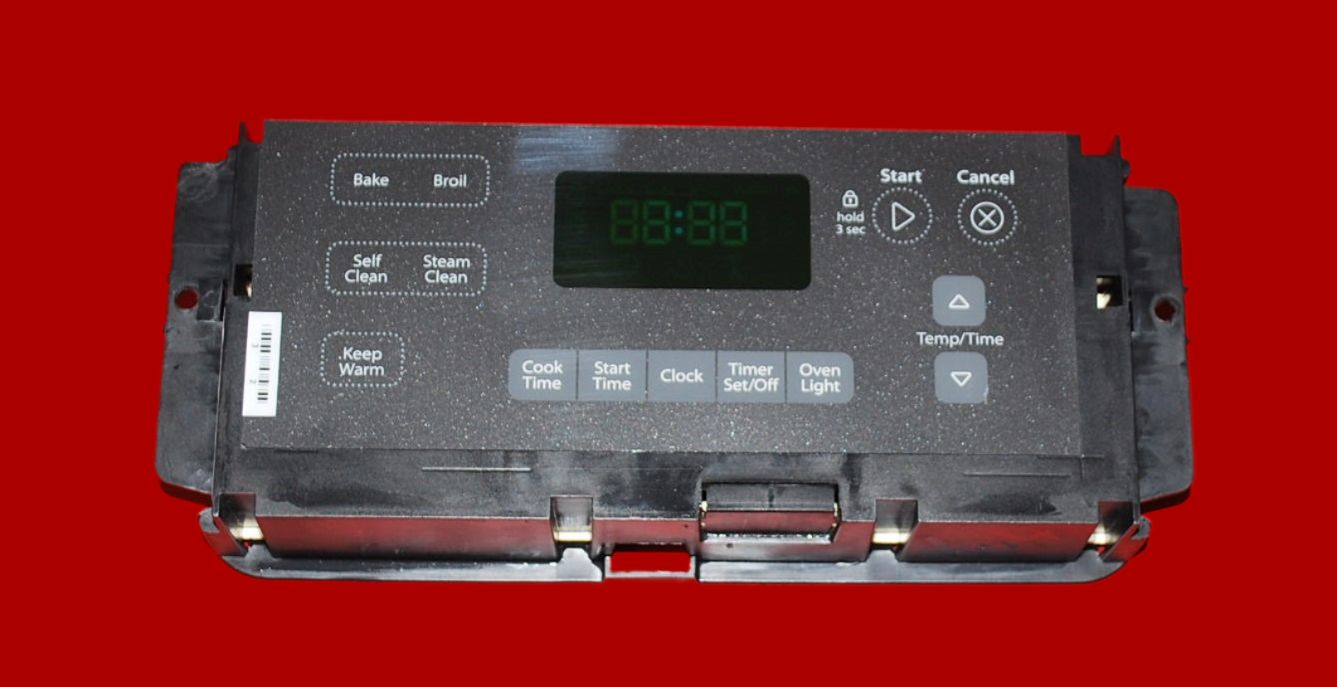

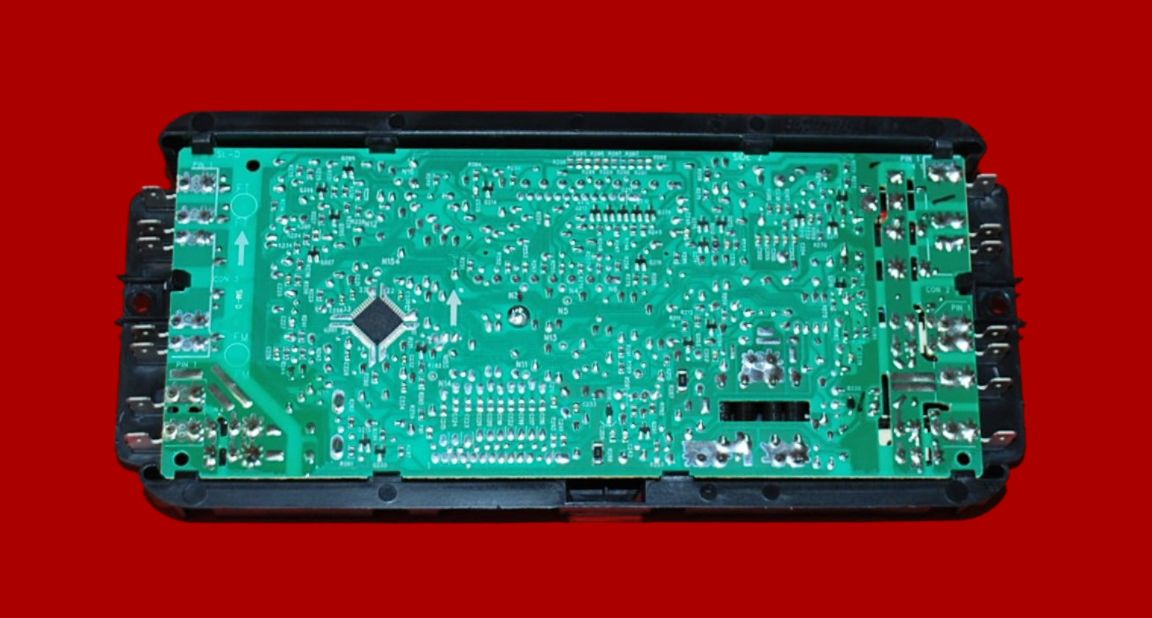

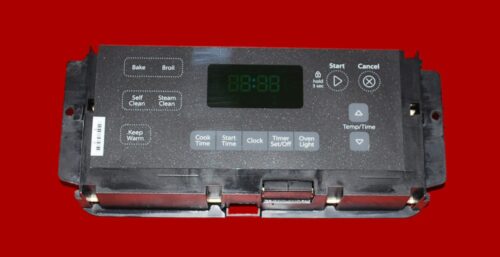

Whirlpool Oven Control Board – Part Numbers WPW10734599 | W10424887 (Pre-Owned / Tested)

This listing is for a genuine oven electronic control board, part numbers WPW10734599 | W10424887. This is a factory original pre-owned part that has been fully tested, cleaned, and inspected to ensure proper operation.

Only boards that pass professional testing and inspection are listed for sale.

Item Condition

Pre-Owned / Used.
Tested and guaranteed to function properly.
Cosmetic wear may be present from normal use.

Condition Description:

Overlay Excellent: This item may show some slight marks or scratches.

Color: Dark Gray

Power: Electric Oven

Common Reasons for Failure

Power surges or electrical spikes damaging sensitive oven control circuitry.
Heat-related stress causing relay or component failure.
Burned or stuck bake/broil relays preventing proper heating operation.
Worn or cracked solder joints from repeated high-temperature cycles.
Failed internal components affecting temperature regulation or timing.

Common Symptoms This Part May Fix

Oven not heating or heating inconsistently.
Oven will not turn on or shuts off unexpectedly.
Bake or broil functions do not work or shut off unexpectedly.
Error codes related to temperature or electronic control faults.

(Symptoms vary by model and application)

Important Fitment Information

⚠️ Please match the part number on your original control board exactly to 8272488 or 6610201 before ordering.

Many control boards look identical but are NOT interchangeable. Appliance model numbers alone are not sufficient to guarantee compatibility.



Cross-Reference Part Number Information:

Compatible Brands Include:



This board fits the following model numbers;

4KMER7685ES0
4KMER7685EW0
4KWFE7685ES0
4KWFE7685EW0
WFE515S0EB0
WFE515S0ED0
WFE515S0ES0
WFE515S0ET0
WFE515S0EW0
WFE520C0AB0
WFE520C0AS0
WFE520C0AW0
WFE524CLAB0
WFE524CLAS0
WFE524CLAW0





What’s Included

1 × Oven Control Board – WPW10734599 | W10424887.
No additional hardware or accessories included.

Warranty & Shipping

6-Month Warranty included for peace of mind.
Carefully packaged for safe delivery.
Fast and Free shipping options available at checkout.
