Whirlpool Gas Oven Control Board and Touchpad 9762794 | 9761566 | 9762774 | OEM Used Tested (overlay fair – Black)
$179.00

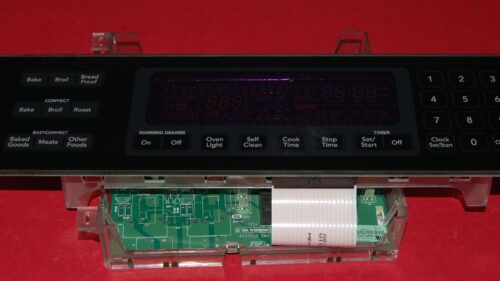

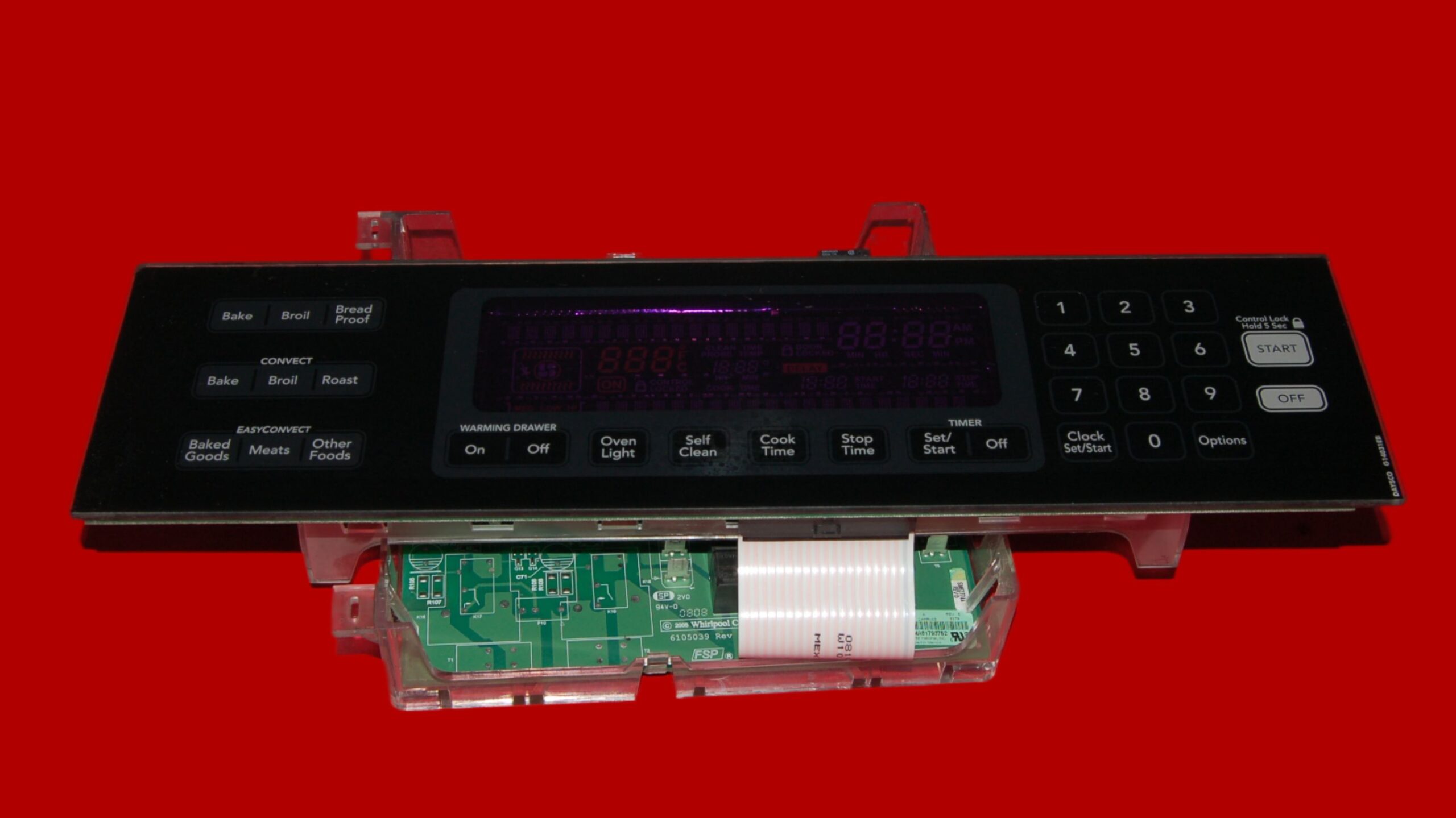

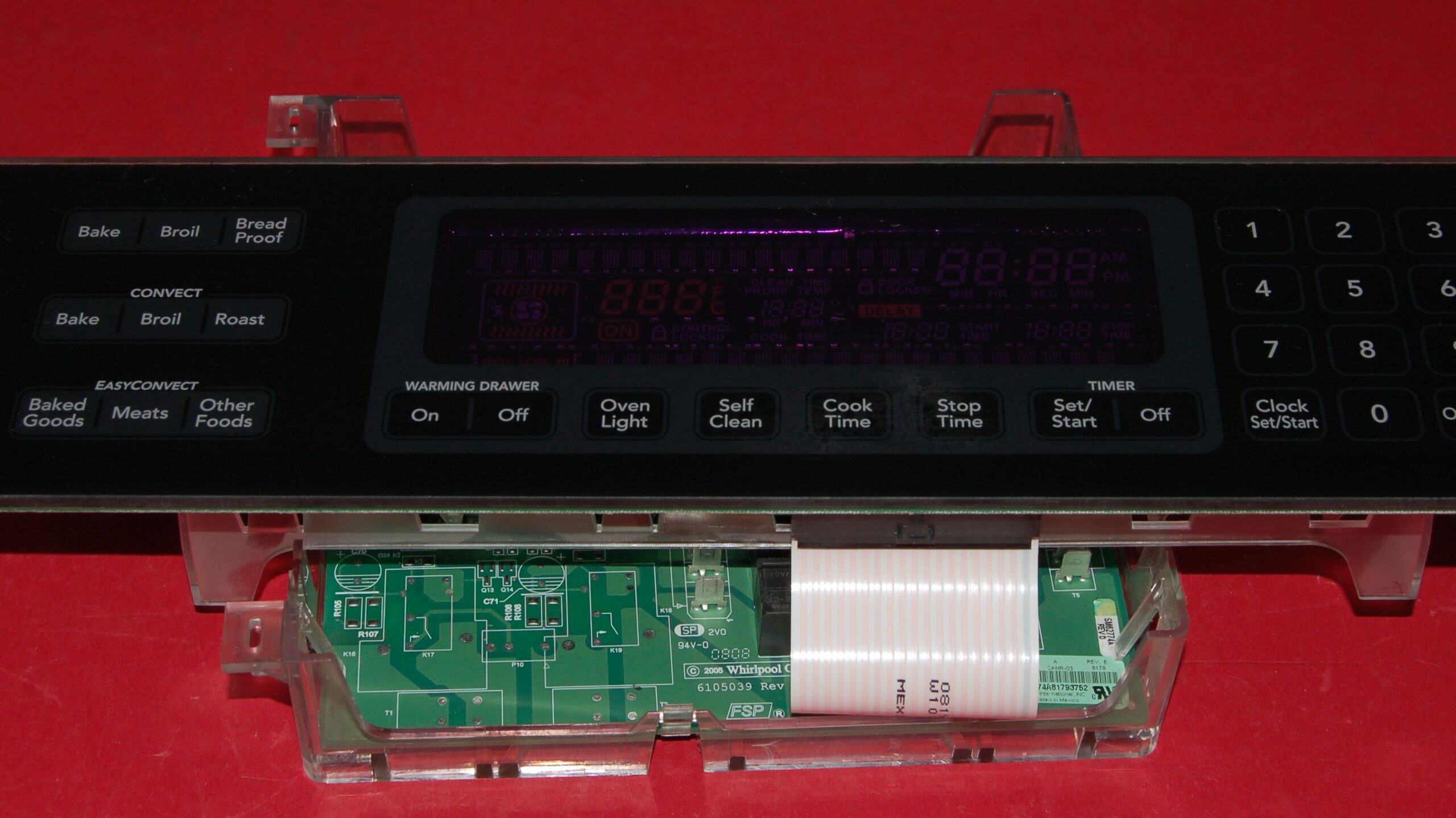

Kitchen-Aid, Whirlpool Oven Control Board – Part Number 9762794 | 9761566 | 9762774 (Pre-Owned / Tested)
This is a genuine factory original pre‑owned oven control board, expertly tested, cleaned, and fully inspected to ensure proper operation.
Only units that meet our performance standards are offered for sale.
Cross-Reference Part and Model Number Information:
Alternate / Compatible Part #: WP9762794 replaces AP6014136, 9762794, 1201919, PS11747371
Compatible Model Numbers:
KGSS907SBT00
KGRS807SBL01
KGRS807SBT01
KGRS807XSP00
KGSS907SBL01
KGSS907SBL02
KGSS907SBL03
KGSS907SBT01
KGSS907SSS01
KGSS907SSS03
KGSS907SWH01
KGSS907XSP00
Item Condition
Pre-Owned / Used.
Condition: Overlay Fair: This item does show noticeable wear; it will have marks, scratches, cracks, small nicks, or dings.
Color: Black
Power: Gas Appliance
Important Fitment Information
⚠️ Match the part number on your original oven control board exactly to 9762794 | 9761566 | 9762774 before ordering — many oven control boards look identical but are NOT interchangeable, and model numbers alone don’t guarantee compatibility.
What’s Included
1 × Oven Electronic Control Board – 9762794 | 9761566 | 9762774
No additional hardware or accessories included.
Common Reasons for Failure
- Power surges or electrical spikes can damage the oven control circuitry.
- Heat-related stress causes relay or component failure.
- Burned or stuck bake/broil relays are preventing proper heating operation.
- Worn or cracked solder joints from repeated high-temperature cycles.
- Failed internal components affecting temperature regulation or timing.
Common Symptoms This Part May Fix
- Oven not heating or heating inconsistently.
- Oven shutting off unexpectedly or fails to turn on.
- No display or partial display on the control board.
- Unresponsive buttons or keypad inputs (when the keypad is separate).
- Error codes related to temperature or electronic control faults.
(Symptoms vary by model and application)
BEFORE YOU BUY – VERIFY:
- Check your appliance’s model number – from the list of compatible Model Numbers provided.

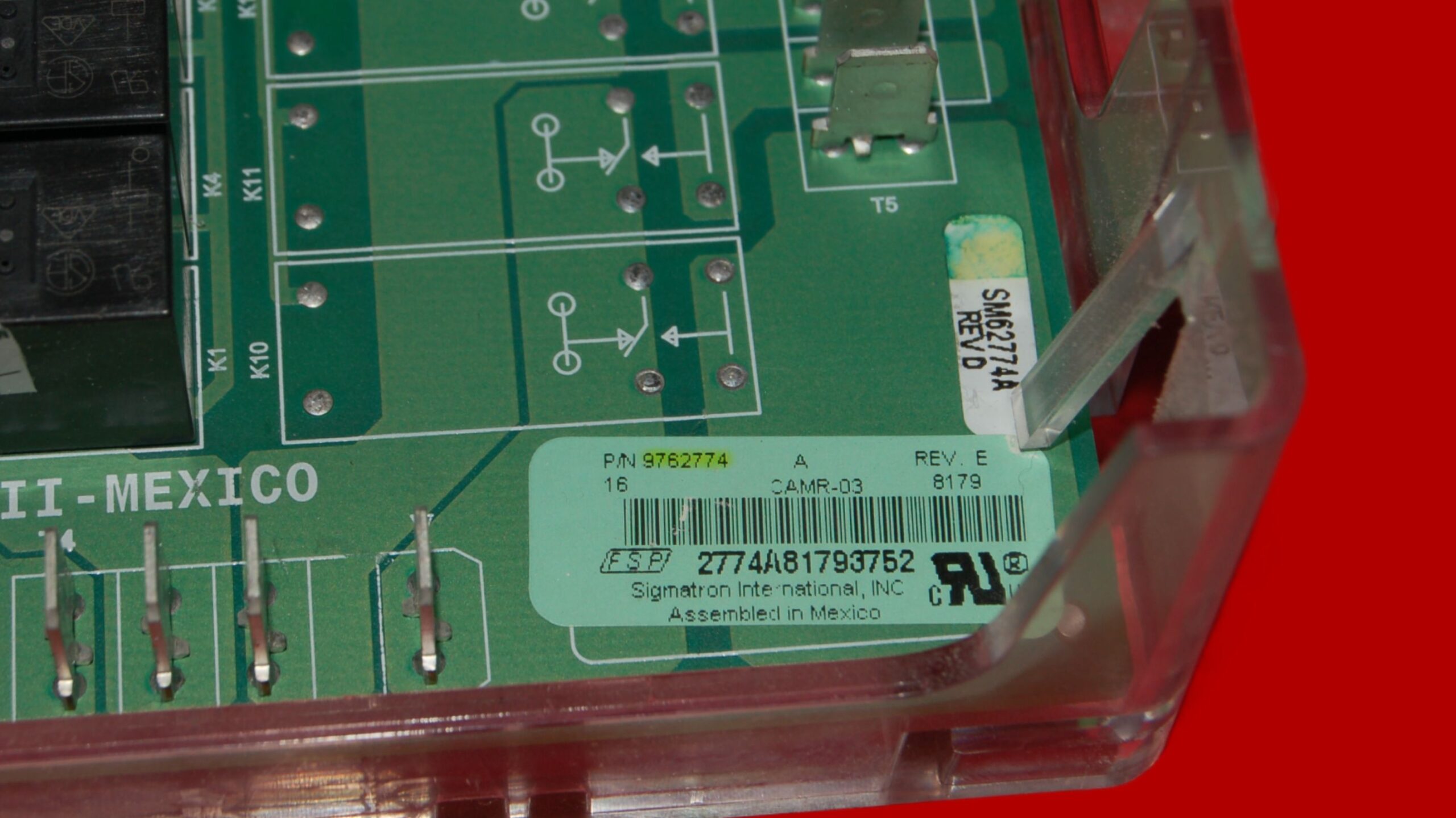

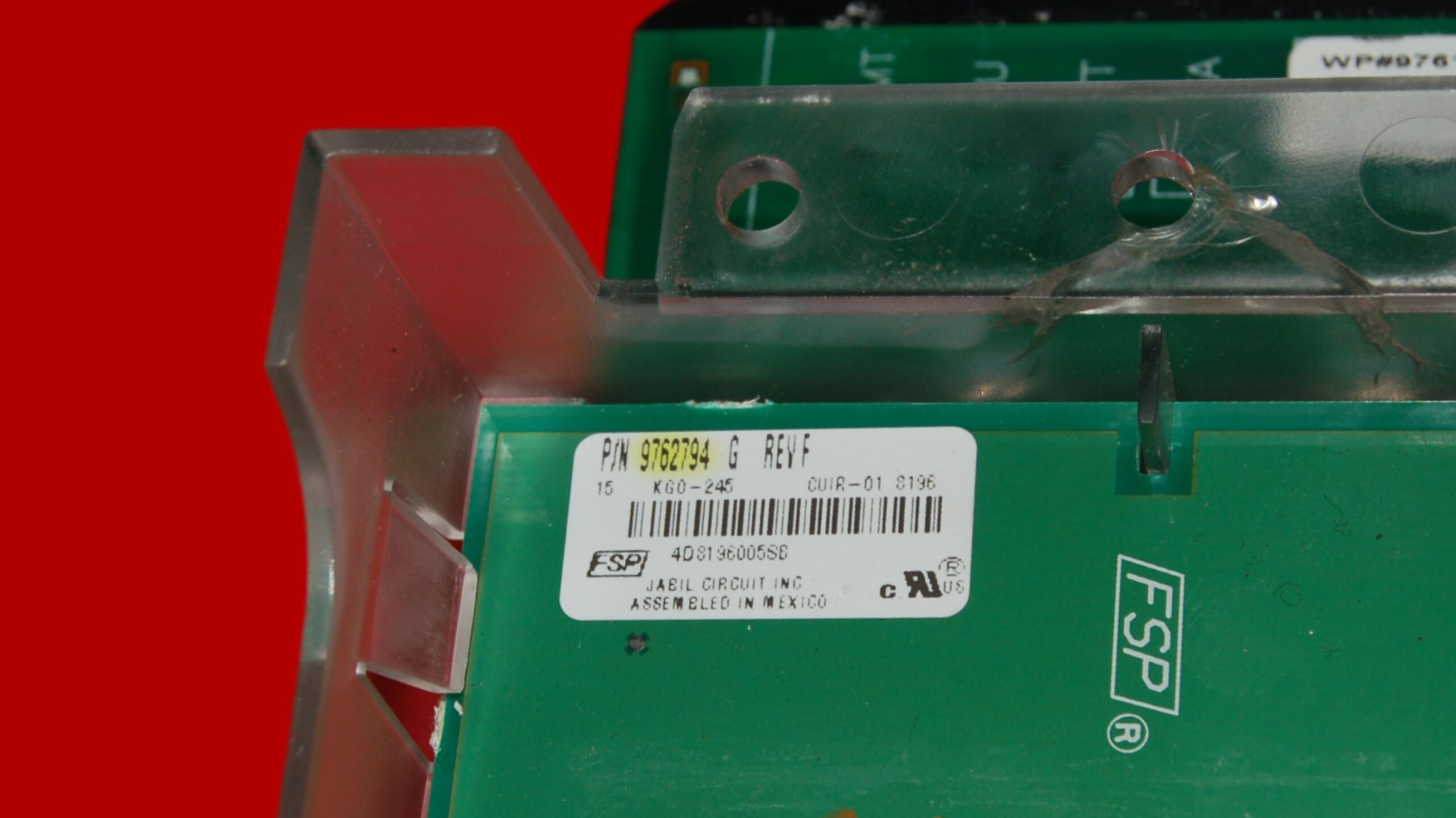

- Compare our Part Number EXACTLY to your failed board – must match 100% – removal of your control board is required to find part number sticker.

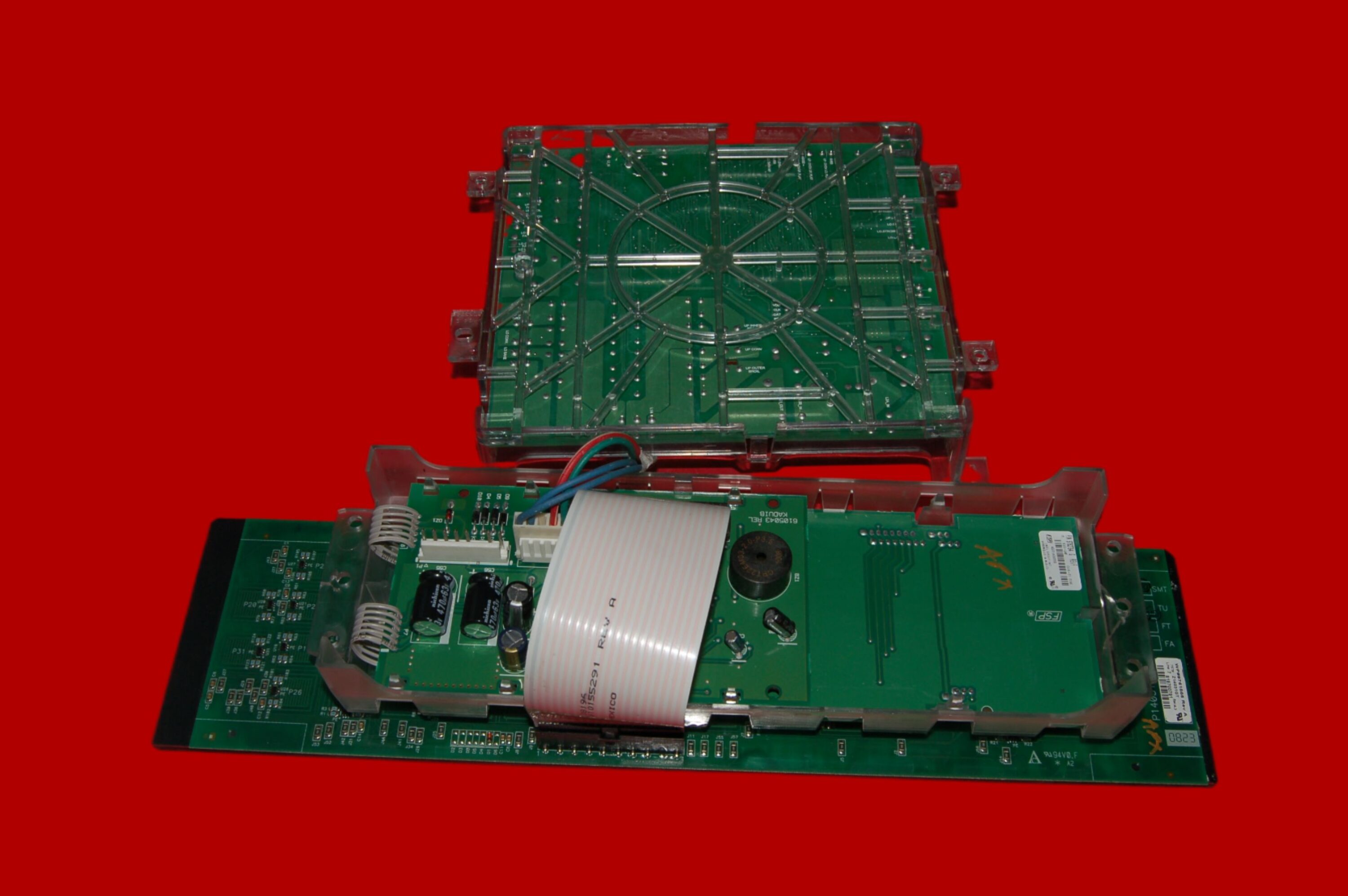

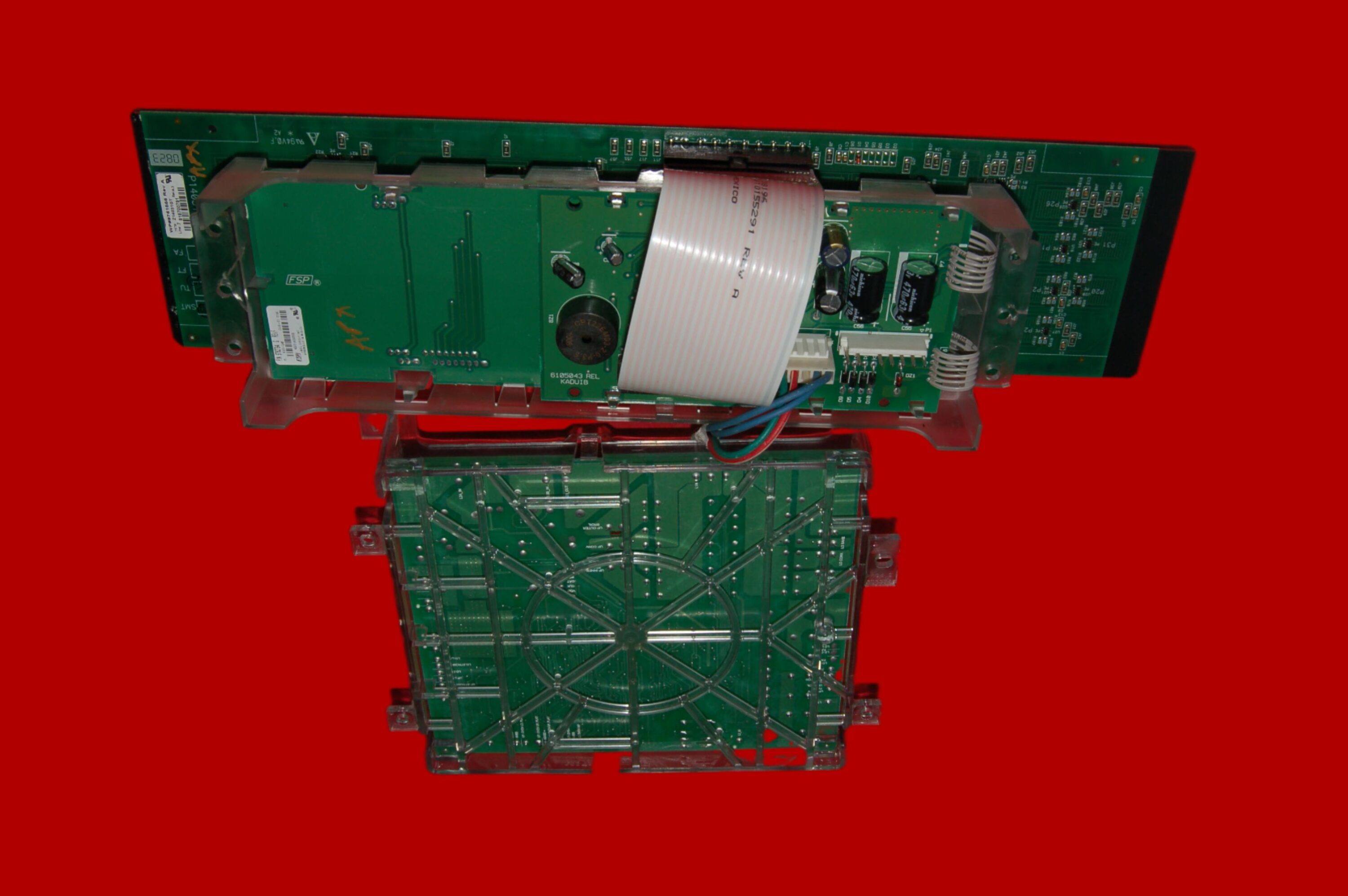

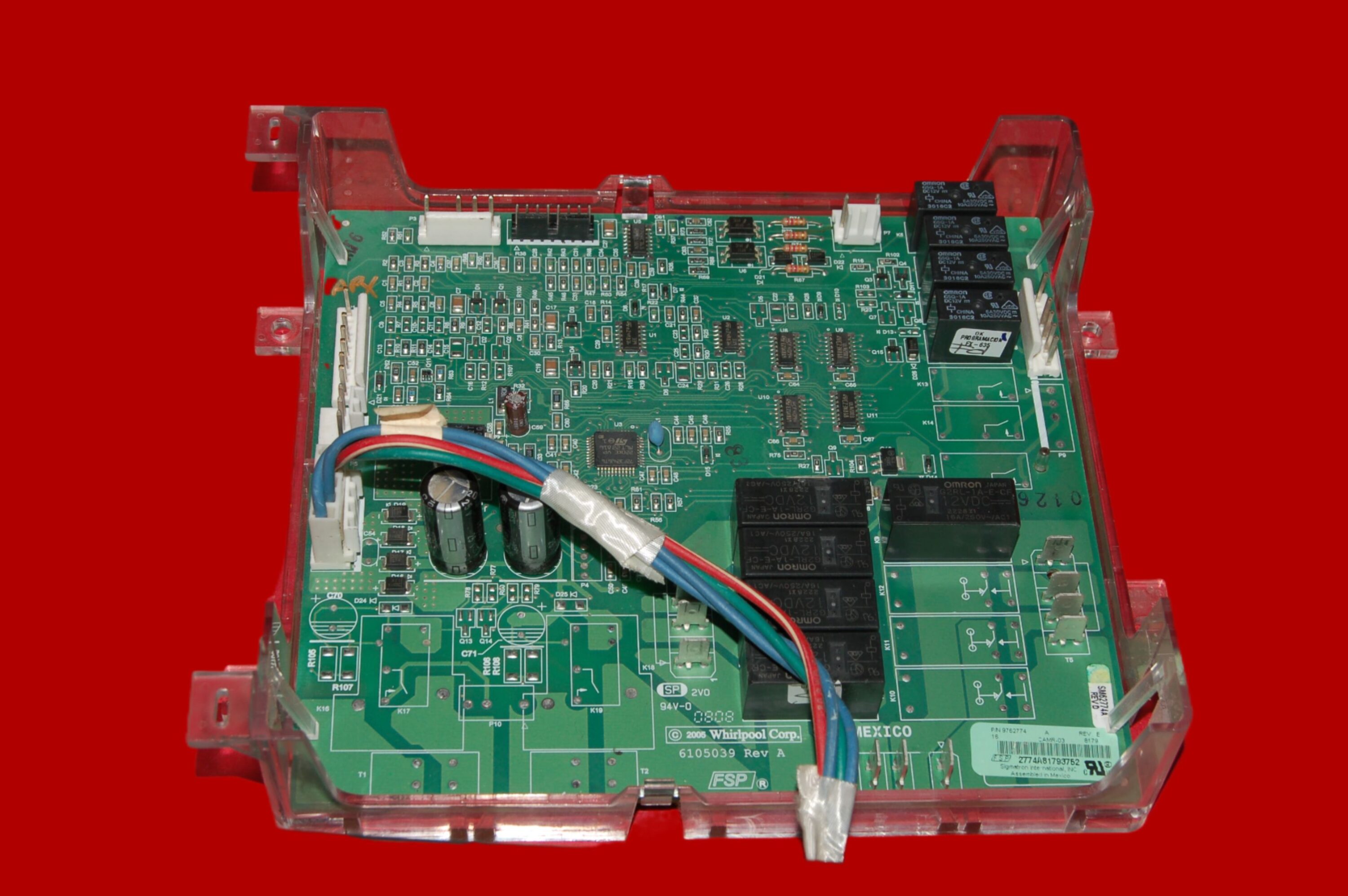

- Verify board appearance matches our photos front AND back – wiring ports can differ even when the front looks identical – check both sides.
- Not sure? Message us your model # before purchasing – we’ll confirm compatibility.
Shipping Options
Fast and free shipping options are available at checkout.
Warranty And Assurance
6-Month Warranty included for peace of mind.
Specializing in appliance control boards since 2014.
All orders are carefully packaged for safe delivery.
A+ Accredited Business with the BBB.
