Whirlpool Refrigerator Control Board | W10200659 | OEM Used Tested
$98.99
Whirlpool Refrigerator Control Board – Part Number W10200659 (Pre-Owned/Used Tested)
This is a genuine factory original pre-owned refrigerator control board, expertly tested, cleaned, and fully inspected to ensure proper operation.
Only units that meet our performance standards are offered for sale.
Cross-Reference Part and Model Number Information:
Compatible Control Board Part #: WPW10200659 replaces AP6016892, W10200659, 4442237, PS11750185
Compatible Model Numbers:
DYF42BIWS00
DYF42BNDI00
DYF48BIWS00
DYF48BNDI00
JB36NXFXLW00
JB36NXFXLW01
JB36NXFXLW02
JB36NXFXLW03
JB36NXFXLW04
JB36NXFXLW05
JB36NXFXRW00
JB36NXFXRW01
JB36NXFXRW02
JB36NXFXRW03
JB36NXFXRW04
JB36NXFXRW05
JF42NXFXDW00
JF42NXFXDW01
JF42NXFXDW02
JF42NXFXDW03
JF42NXFXDW04
JF42NXFXDW05
JS42NXFXDE00
JS42NXFXDE01
JS42NXFXDW00
JS42NXFXDW01
JS42NXFXDW02
JS42NXFXDW03
JS42NXFXDW04
JS42NXFXDW05
JS42NXFXDW10
JS42PPDUDE00
JS42PPDUDE01
JS42SSDUDE00
JS42SSDUDE01
JS48NXFXDE00
JS48NXFXDE01
JS48NXFXDW00
JS48NXFXDW01
JS48NXFXDW02
JS48NXFXDW03
JS48NXFXDW04
JS48NXFXDW05
JS48NXFXDW10
JS48PPDUDE00
JS48PPDUDE01
JS48SSDUDE00
JS48SSDUDE01
KBSD602ESS00
KBSD602ESS01
KBSD606ESS00
KBSD606ESS01
KBSD608EBS00
KBSD608EBS01
KBSD608ESS00
KBSD608ESS01
KBSD612ESS00
KBSD612ESS01
KBSD618ESS00
KBSD618ESS01
KBSN602EBS00
KBSN602EBS01
KBSN602EPA00
KBSN602EPA01
KBSN602ESS00
KBSN602ESS01
KBSN608EBS00
KBSN608EBS01
KBSN608EPA00
KBSN608EPA01
KBSN608ESS00
KBSN608ESS01
Important Fitment Information
⚠️ Match the part number on your original control board exactly to W10200659 before ordering — many refrigerator control boards look identical but are NOT interchangeable, and model numbers alone don’t guarantee compatibility.
What’s Included
1 × Refrigerator Control Board – W10200659
No additional hardware or accessories included.
Common Reasons for Failure
- Power surges or electrical spikes can damage the refrigerator’s control circuitry.
- Failed relays affecting compressor, evaporator fan, or defrost heater operation.
- Moisture intrusion or condensation causes corrosion on connectors or components.
- Worn or cracked solder joints from repeated cooling cycles and vibration.
- Failed internal components are impacting temperature regulation or defrost timing.
Common Symptoms This Part May Fix
- Refrigerator not cooling or cooling inconsistently.
- The freezer is too warm or too cold.
- No response from the control panel or intermittent display issues.
- Frost buildup due to a failed defrost cycle.
- Error codes or intermittent operation.
(Symptoms vary by model and application)
BEFORE YOU BUY – VERIFY:
- Check your appliance’s model number – from the list of compatible Model Numbers provided.

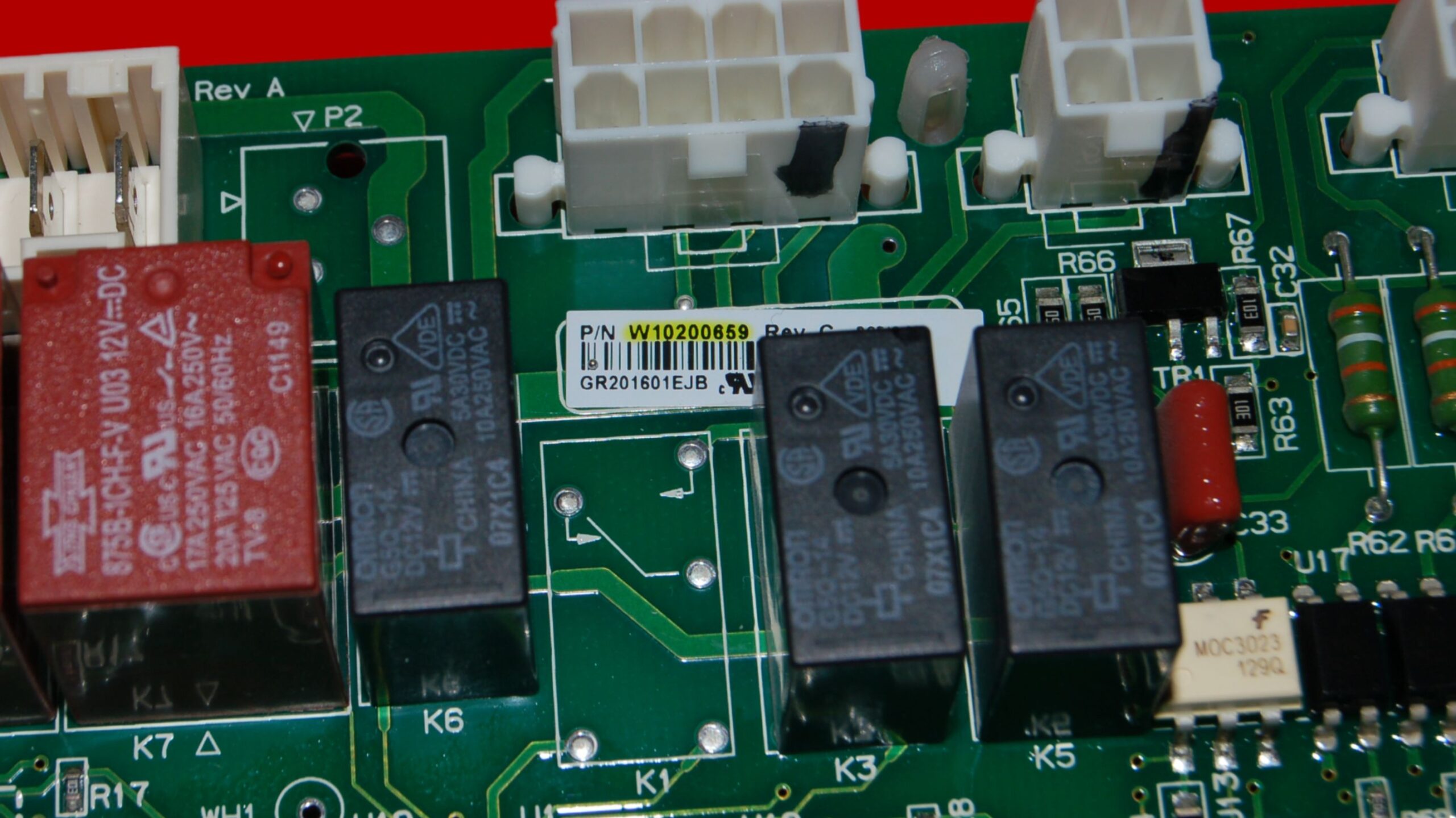

- Compare our Part Number EXACTLY to your failed board – must match 100% – removal of your control board is required to find part number sticker.

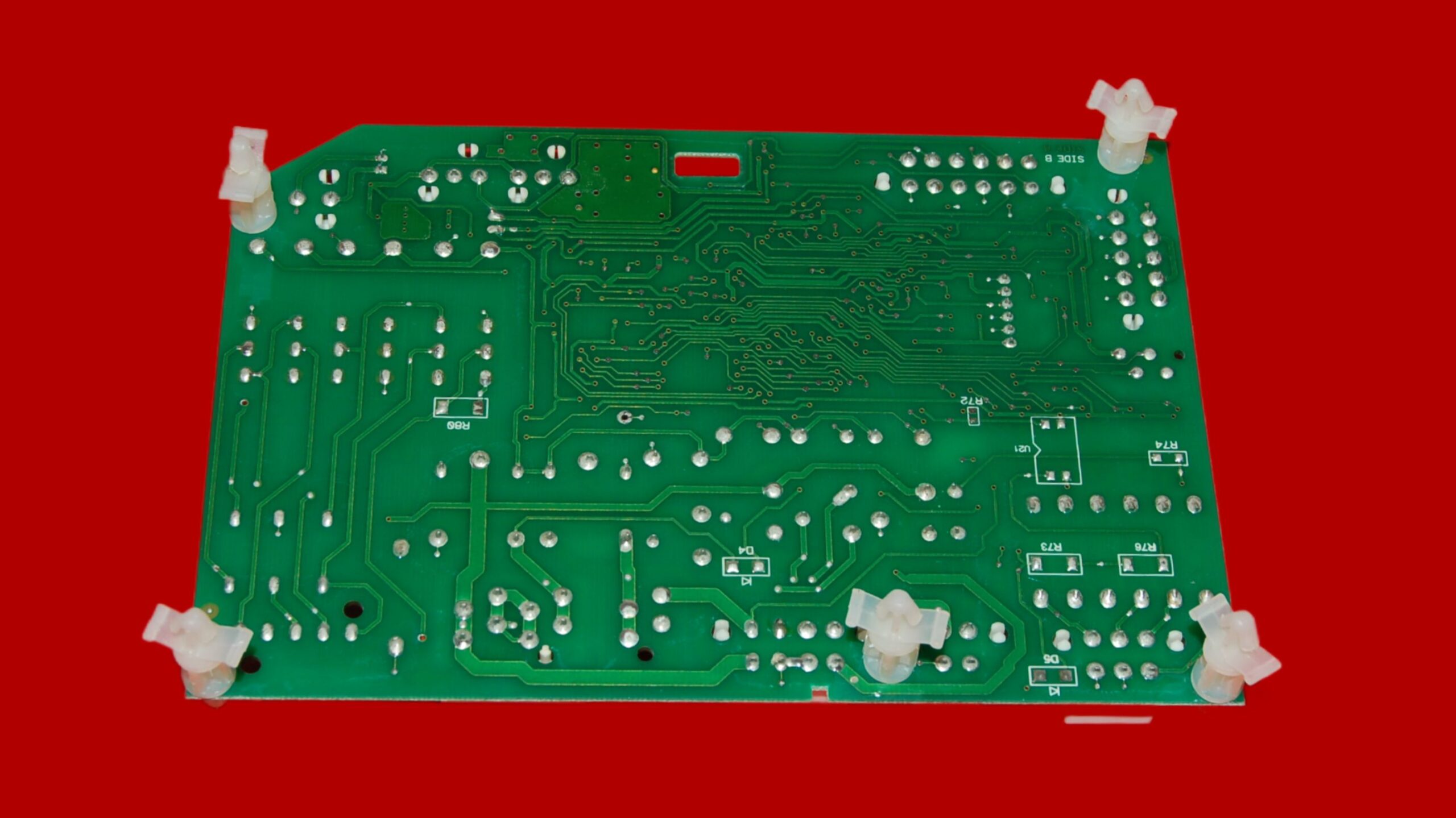

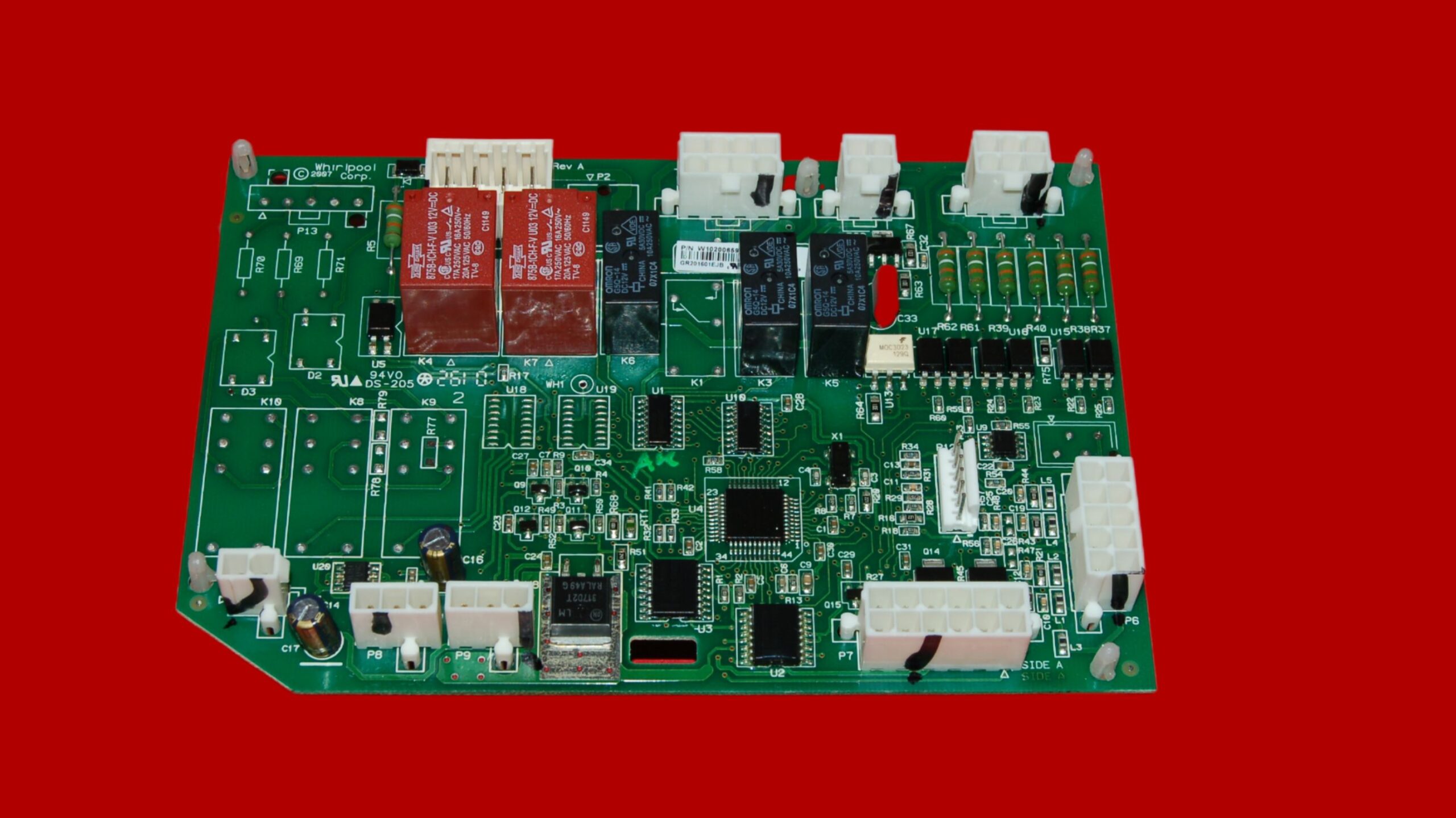

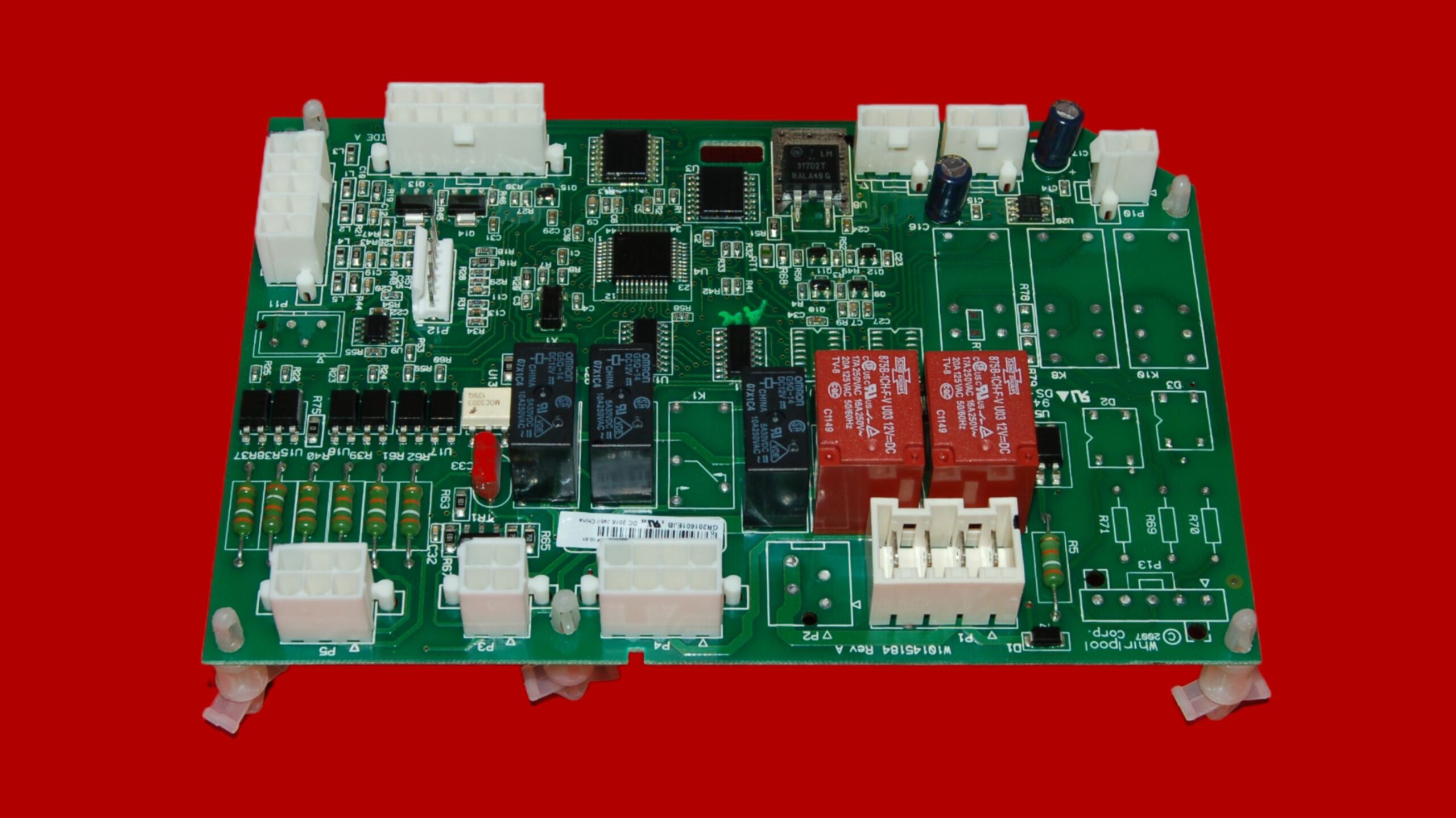

- Verify board appearance matches our photos front AND back – wiring ports can differ even when the front looks identical – check both sides.
- Not sure? Message us your model # before purchasing – we’ll confirm compatibility.
Shipping Options
Fast and free shipping options are available at checkout.
Warranty And Assurance
6-Month Warranty included for peace of mind.
Specializing in appliance control boards since 2014.
All orders are carefully packaged for safe delivery.
A+ Accredited Business with the BBB.
Shop with Confidence. All of our pre-owned appliance electronic control boards have been tested, cleaned, and are guaranteed to work. Every part comes with our standard 6-month warranty.
Model numbers and cross-reference part numbers were obtained from AppliancePartsPros.com.
