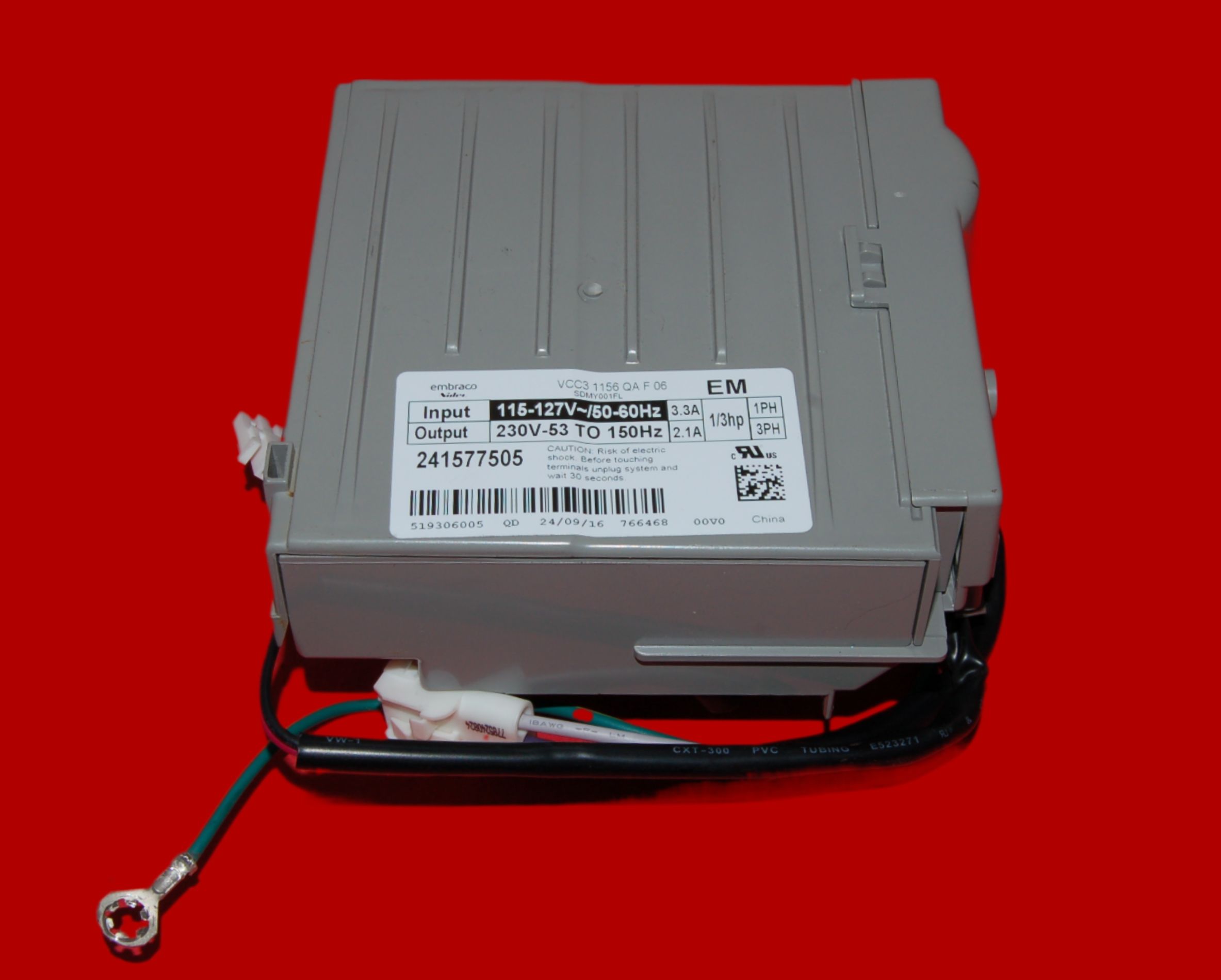

Frigidaire Refrigerator Compressor Control Unit VCC3 1156 QA F 06 | 241577505 | OEM Used Tested
$72.99
Crosley, Electrolux, Frigidaire, White-Westinghouse Refrigerator Compressor Control Unit – Part Number VCC3 1156 QA F 06 241577505 (Pre-Owned/Used Tested)
This is a genuine factory original pre-owned refrigerator compressor control unit (board) that has been expertly tested, cleaned, and fully inspected to ensure proper operation.
Only units that meet our performance standards are offered for sale.
Cross-Reference Part and Model Number Information:
Compatible CCU / Control Board Part #: 241577505 replaces 1512577, 7241577505, AH2361242, EA2361242, PS2361242.
Compatible Model Numbers:
EI28BS55IS0
EW23BC70IS1
E23CS78HPS3
EI23BC56IS0
EW23BC71IS0
EW23BC70IB0
EI28BS55IW0
EW23BC70IW0
EW23BC70IW1
EI23BC56IBD
Important Fitment Information
⚠️ Match the part number on your original CCU exactly to VCC3 1156 QA F 06 241577505 before ordering — many CCUs look identical but are NOT interchangeable, and model numbers alone don’t guarantee compatibility.
What’s Included
1 × Refrigerator CCU (Compressor Control Unit) – VCC3 1156 QA F 06 241577505
No additional hardware or accessories included.
Common Reasons for Failure
- Power surges or voltage spikes damage the compressor control unit circuitry.
- Failed relays affecting compressor, evaporator fan, or defrost heater operation.
- Moisture intrusion or condensation causes corrosion on connectors or components.
- Burned or cracked solder joints from repeated cooling cycles and vibration.
- Internal component failure affecting temperature regulation or sensor communication.
Common Symptoms This Part May Fix
- Refrigerator not cooling or cooling inconsistently.
- The freezer is too warm or too cold.
- Evaporator fan not running or running intermittently.
- Defrost cycle not activating, causing frost buildup.
- Error codes related to temperature sensors or compressor control unit communication.
(Symptoms vary by model and application)
BEFORE YOU BUY – VERIFY:
- Check your appliance’s model number – from the list of compatible Model Numbers provided.
- Compare our Part Number EXACTLY to your failed board – must match 100% – removal of your control board is required to find part number sticker.

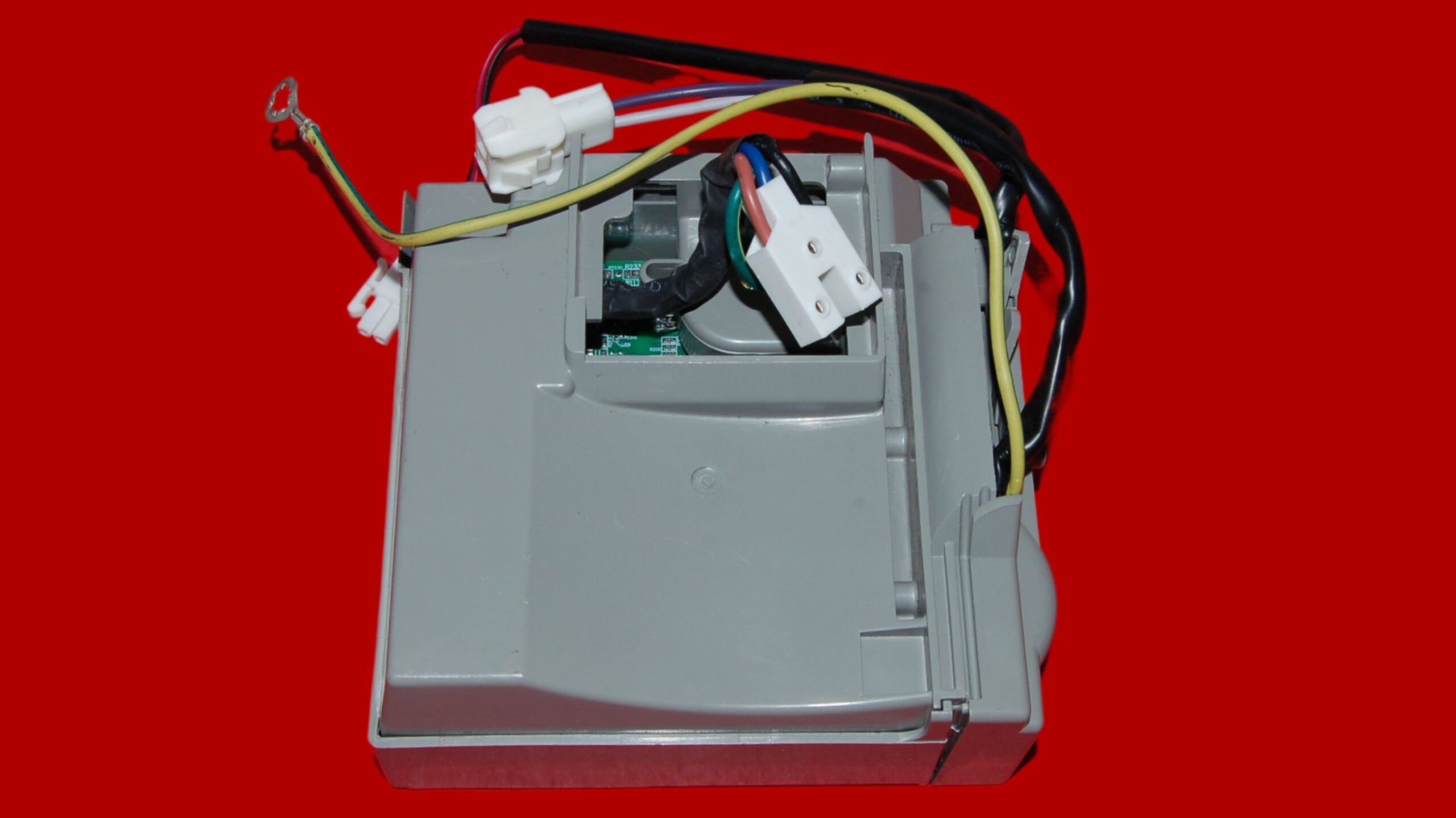

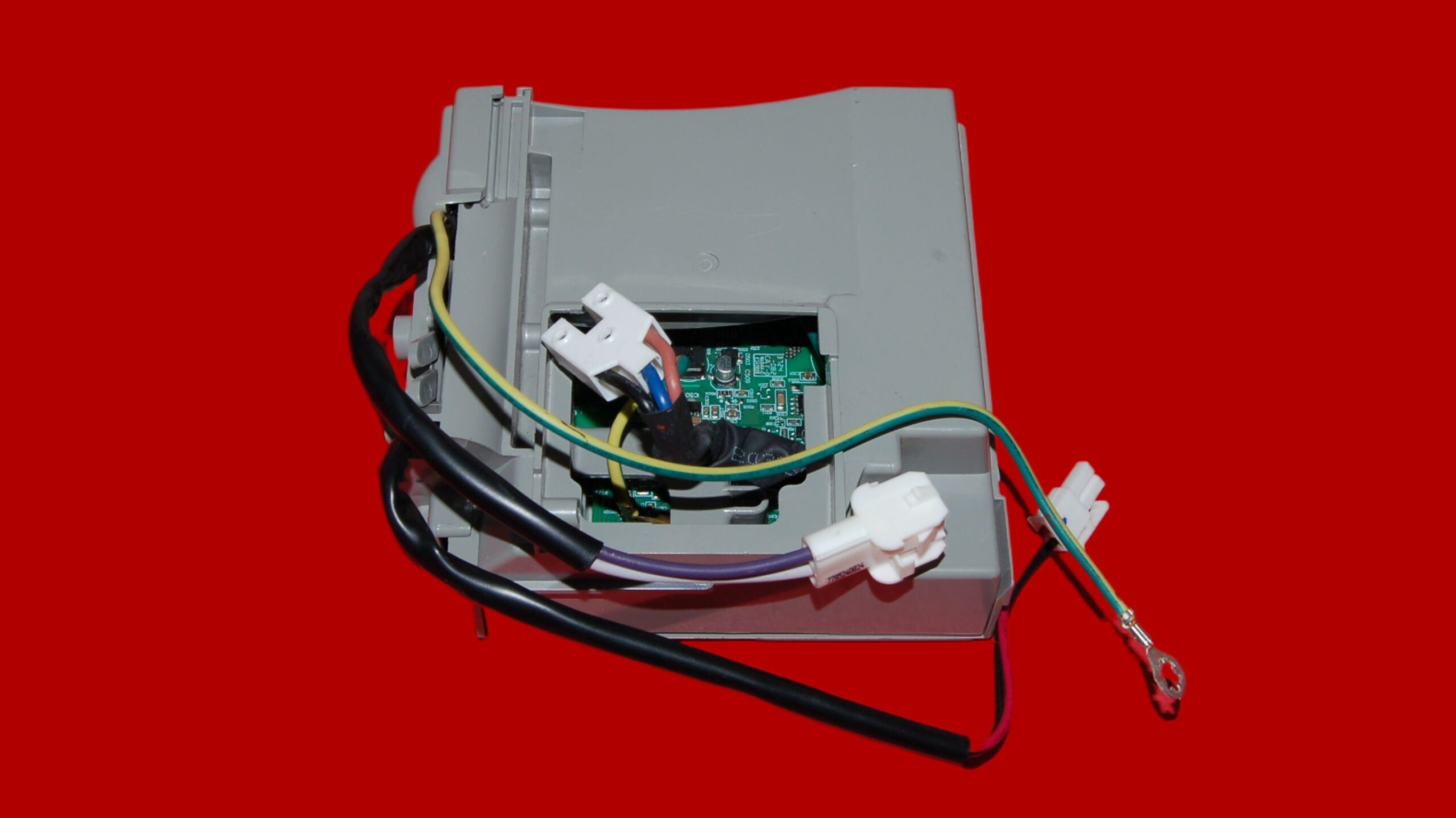

- Verify board appearance matches our photos front AND back – wiring ports can differ even when the front looks identical – check both sides.
- Not sure? Message us your model # before purchasing – we’ll confirm compatibility.
Shipping Options
Fast and free shipping options are available at checkout.
Warranty And Assurance
6-Month Warranty included for peace of mind.
Specializing in appliance control boards and CCUs since 2014.
All orders are carefully packaged for safe delivery.
A+ Accredited Business with the BBB.
Shop with Confidence. All of our pre-owned appliance electronic control boards have been tested, cleaned, and are guaranteed to work. Every part comes with our standard 6-month warranty.
Model numbers and cross-reference part numbers were obtained from AppliancePartsPros.com.
