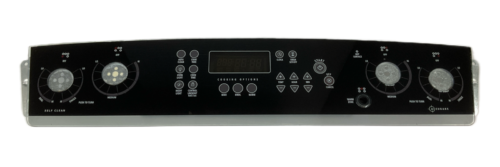

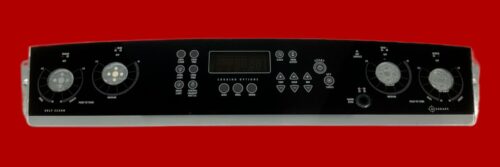

Part # 9763546 | W10116718 | Whirlpool Control Panel and Board (overlay good – Black)
Original price was: $154.00.$115.99Current price is: $115.99.

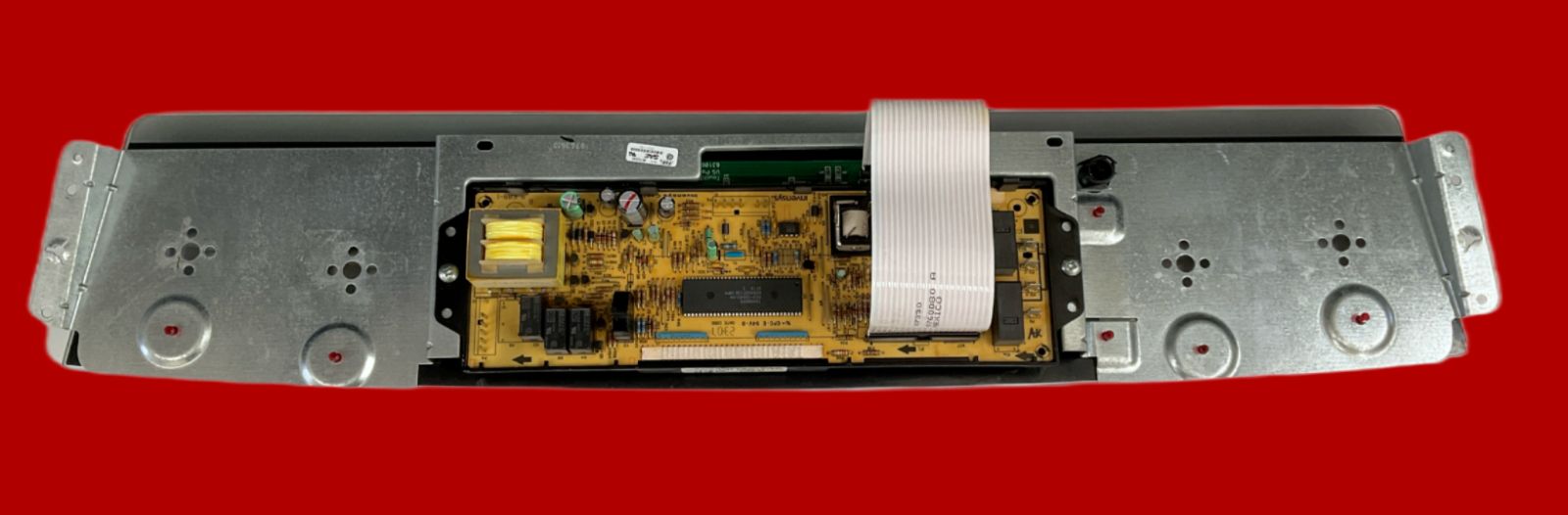

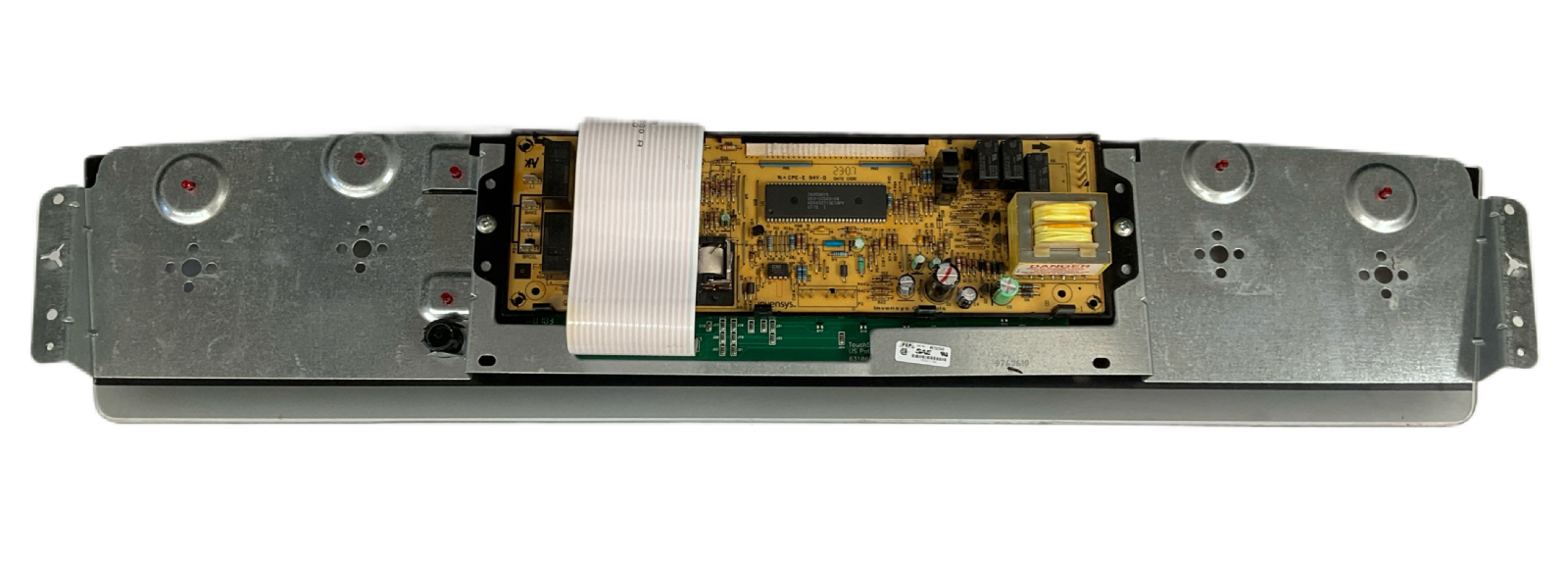

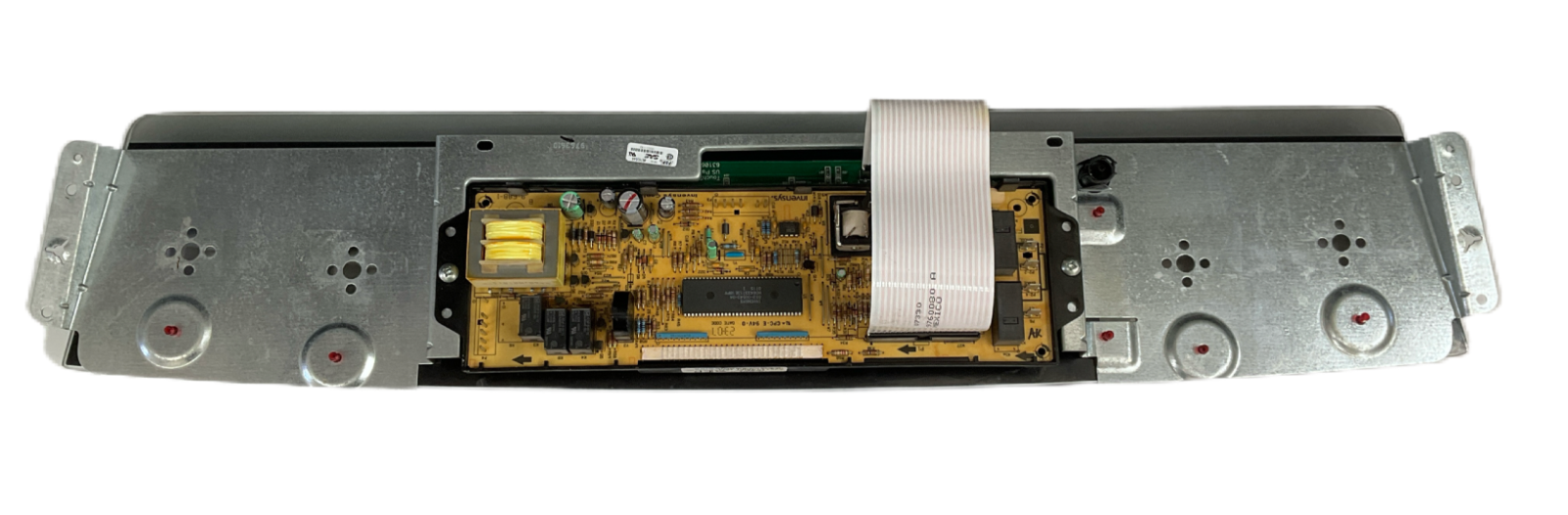

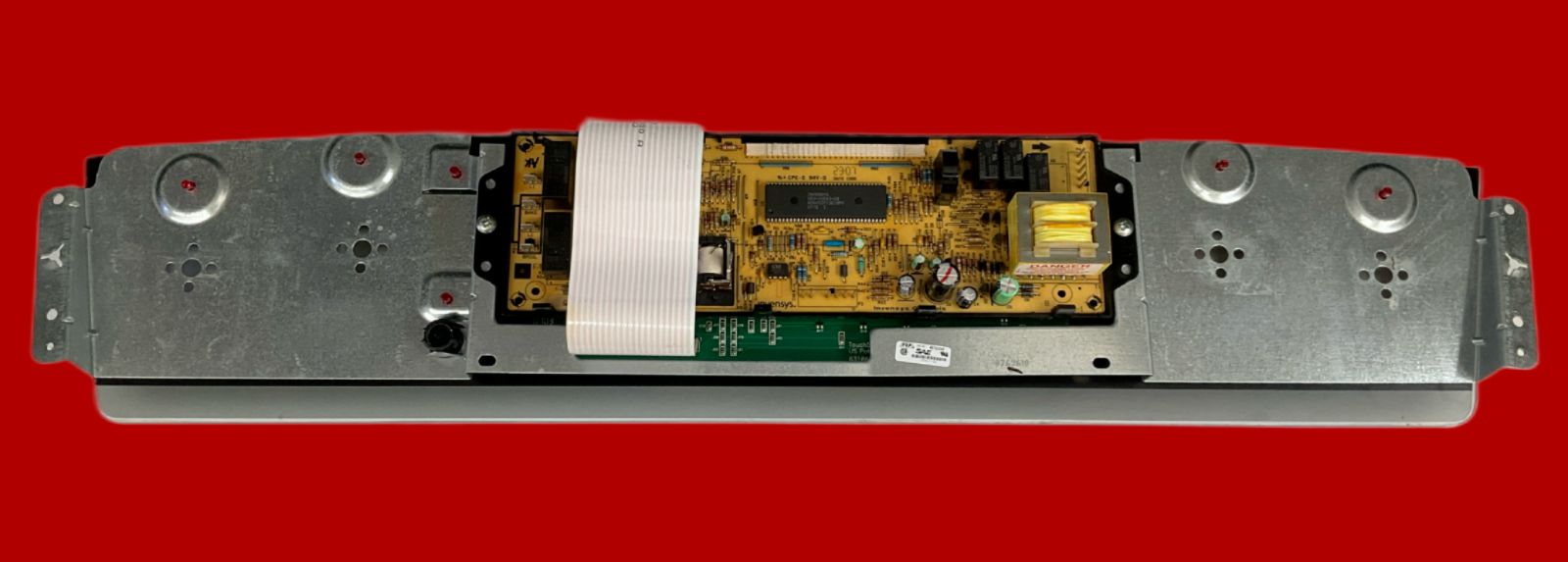

Whirlpool Oven Panel And Control Board – Part Numbers 9763546 | W10116718 (Pre-Owned / Tested)
This listing is for a genuine oven electronic control board, part numbers 9763546 | W10116718. This is a factory original pre-owned part that has been fully tested, cleaned, and inspected to ensure proper operation.
Only boards that pass professional testing and inspection are listed for sale.
Item Condition
Pre-Owned / Used
Tested and guaranteed to function properly
Cosmetic wear may be present from normal use (see photos for exact condition)
Condition Description:

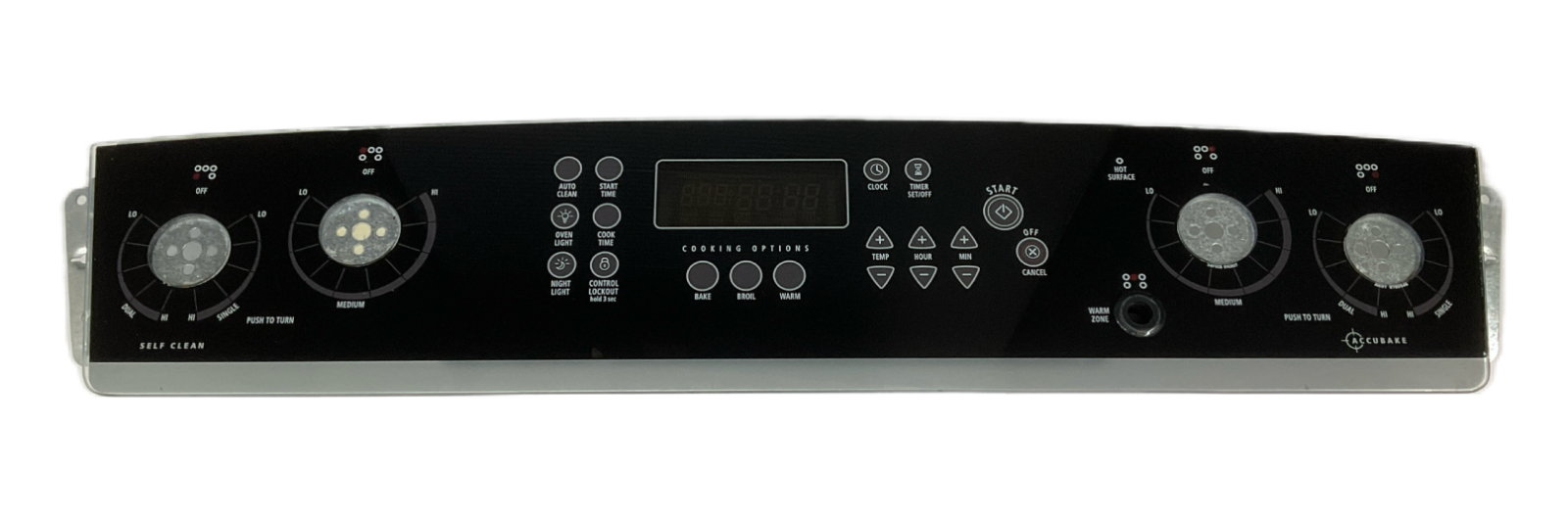

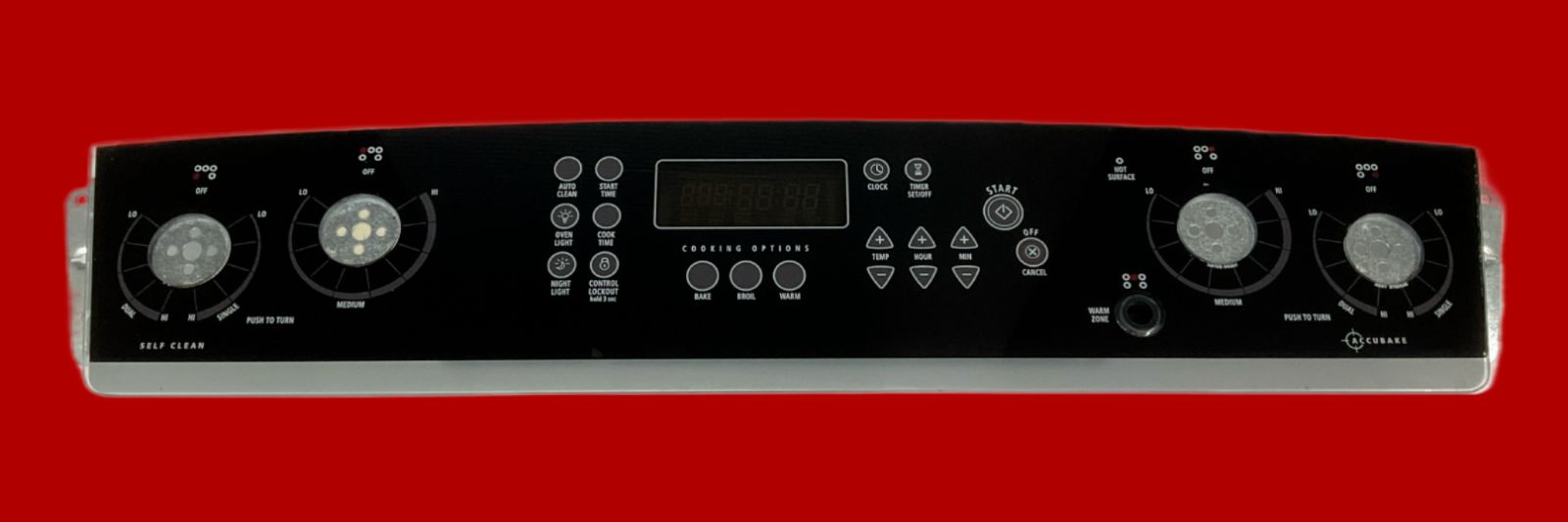

Overlay Good: This item shows general wear and will have light scratches, scuffs, or possibly a small nick or ding.
Color: Black
Power: Electric Oven
Common Reasons for Failure
Power surges or electrical spikes damaging sensitive oven control circuitry.
Heat-related stress causing relay or component failure.
Burned or stuck bake/broil relays preventing proper heating operation.
Worn or cracked solder joints from repeated high-temperature cycles.
Failed internal components affecting temperature regulation or timing.
Common Symptoms This Part May Fix
Oven not heating or heating inconsistently.
Oven will not turn on or shuts off unexpectedly.
No display or partial display on the control panel.
Oven not responding to keypad or control inputs.
Error codes related to temperature or electronic control faults.
(Symptoms vary by model and application)
Important Fitment Information

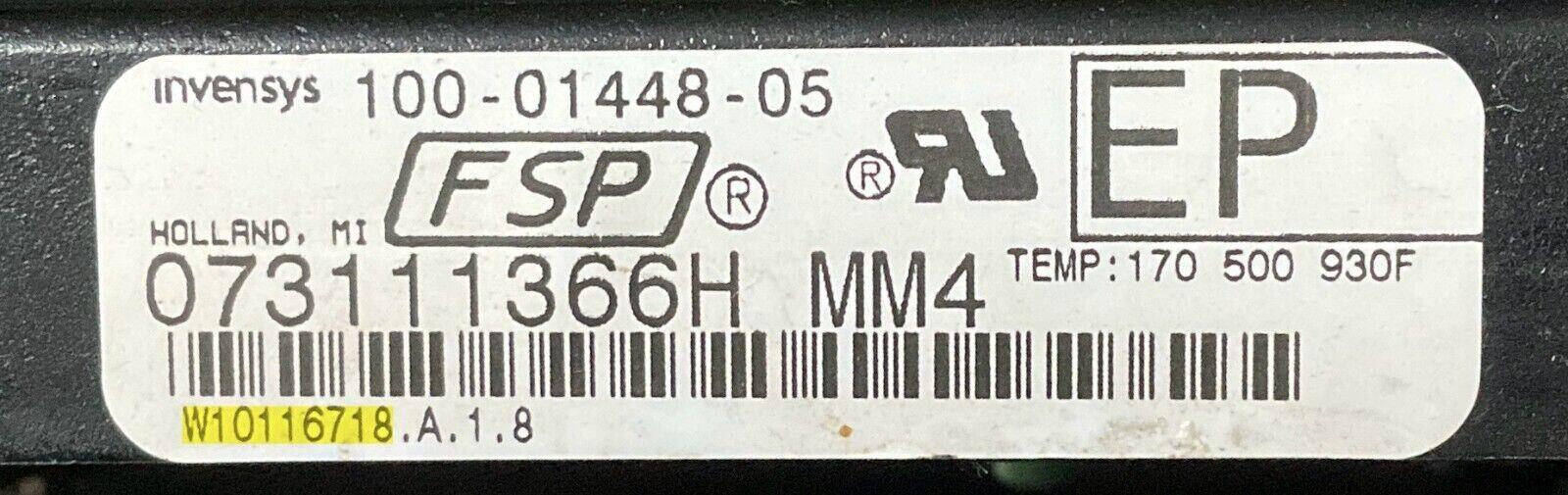

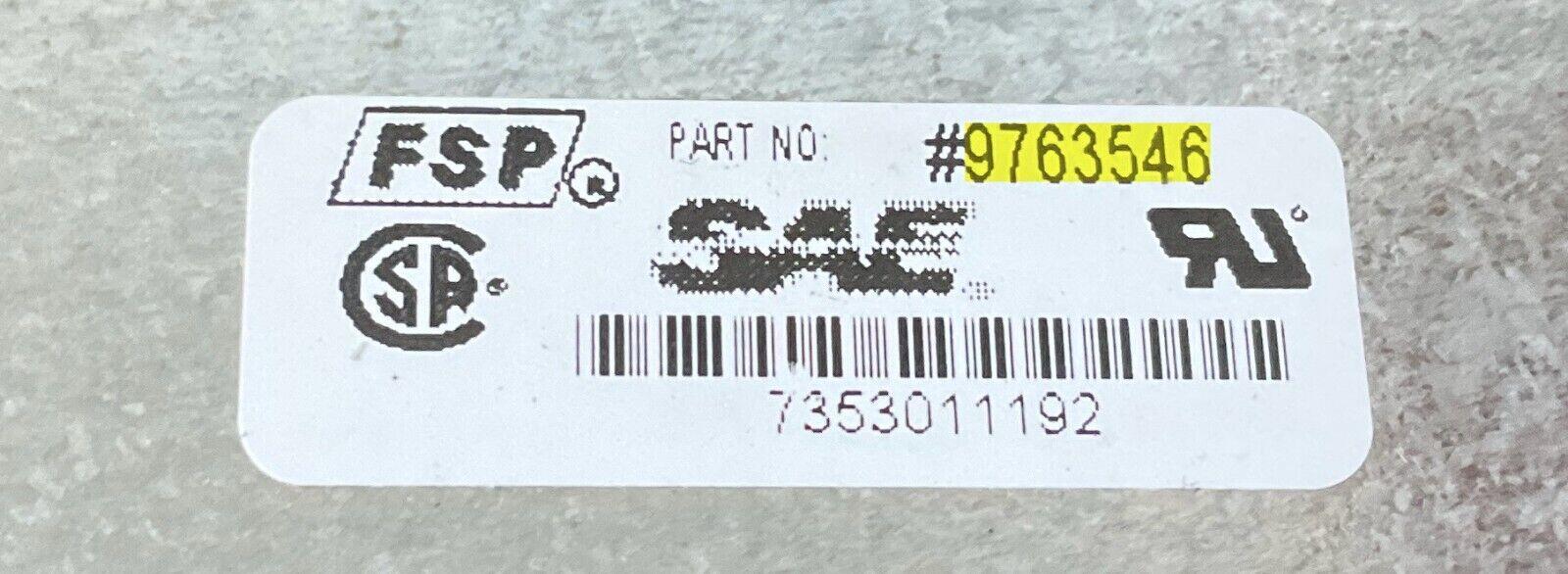

⚠️ Please match the part number on your original control board exactly to 9763546 | W10116718 before ordering.
Many control boards look identical but are NOT interchangeable. Appliance model numbers alone are not sufficient to guarantee compatibility.
Cross-Reference Part Number Information: Panel Part #: WP9763546 replaces AP6014159, 9763546, PS11747394.
Control Board Part #: WPW10116718 replaces AP6015205, W10116718, 4440521, 9762967, 9763681, PS11748478.
Compatible Brands Include:
This panel and control board fit the following model numbers
GR563LXSS0
GR563LXSB1
GR563LXSB0
GR563LXSS1
GR563LXSQ0
GR563LXSQ1
GR563LXST0
GERP4120SB0
GERP4120SB2
GERP4120SQ0
GERP4120SQ2
GERP4120SS0
GERP4120SS2
GR563LXSB2
GR563LXSQ2
GR563LXSS2
GR563LXST1
GR563LXST2
What’s Included
1 × Oven Control Panel And Control Board – 9763546 | W10116718.
No additional hardware or accessories included.
Warranty & Shipping
6-Month Warranty included for peace of mind
Carefully packaged for safe delivery
Fast and Free shipping options available at checkout
A+ Accredited Business with the BBB.
Shop with Confidence. All of our pre-owned appliance electronic control boards have been tested, cleaned, and are guaranteed to work. Every part comes with our standard 6-month warranty.
This item qualifies for 1-2 Days USPS Express Shipping Option B on the Cart Page.
Model numbers and cross-reference part numbers were obtained from AppliancePartsPros.com
