Part # W11122543 | W10887917 | Whirlpool Oven Control Board (overlay good – Dark Gray)
$85.00
Whirlpool Oven Control Board – Part Numbers W11122543 | W10887917. (Pre-Owned / Tested)

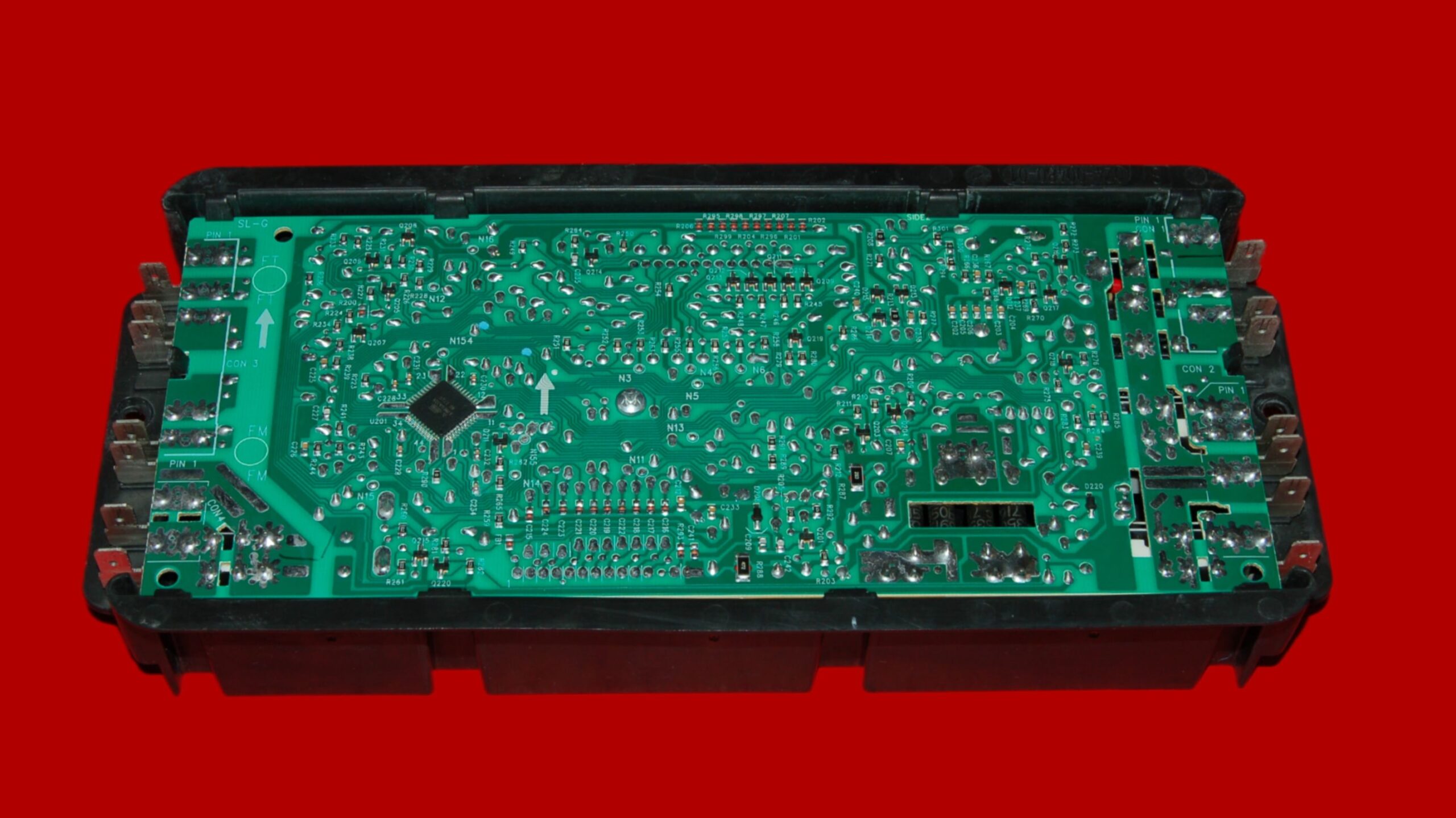

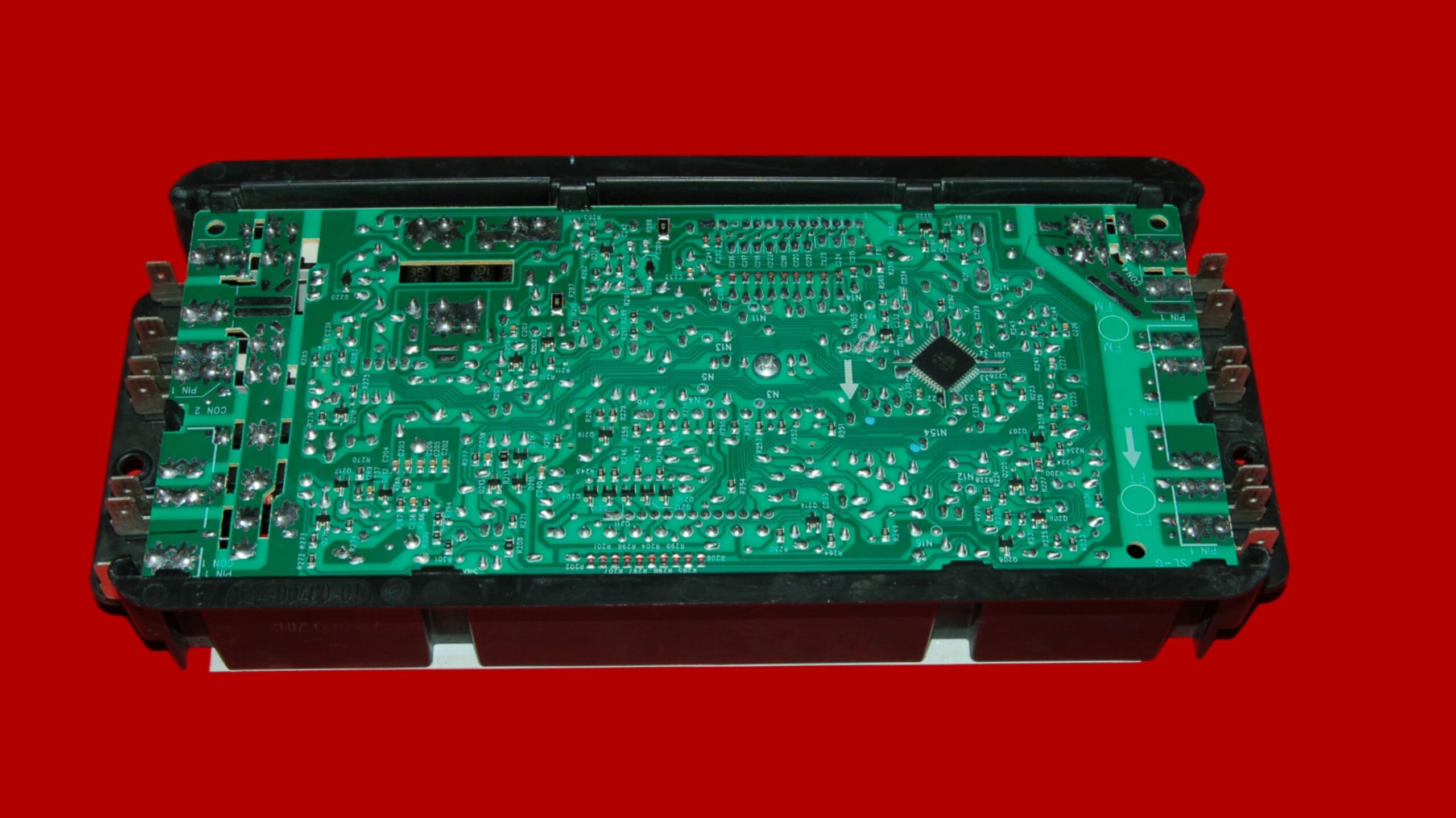

This listing is for a genuine Whirlpool oven electronic control board, part number W11122543 | W10887917 This is a factory original pre-owned part that has been fully tested, cleaned, and inspected to ensure proper operation.
Only boards that pass professional testing and inspection are listed for sale.
Only boards that pass professional testing and inspection are listed for sale.
Item Condition
Pre-Owned / Used.
Tested and guaranteed to function properly.
Cosmetic wear may be present from normal use. (see photos for exact condition)
Condition Description:

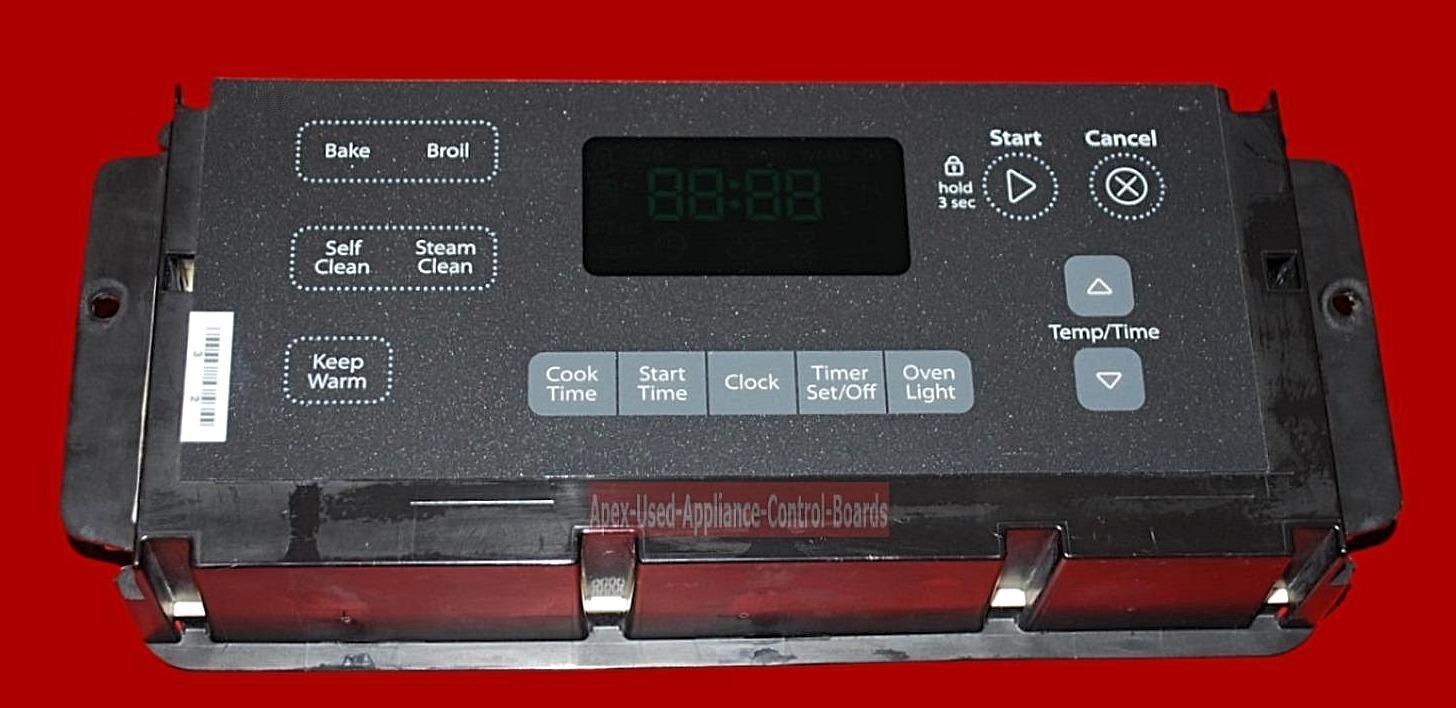

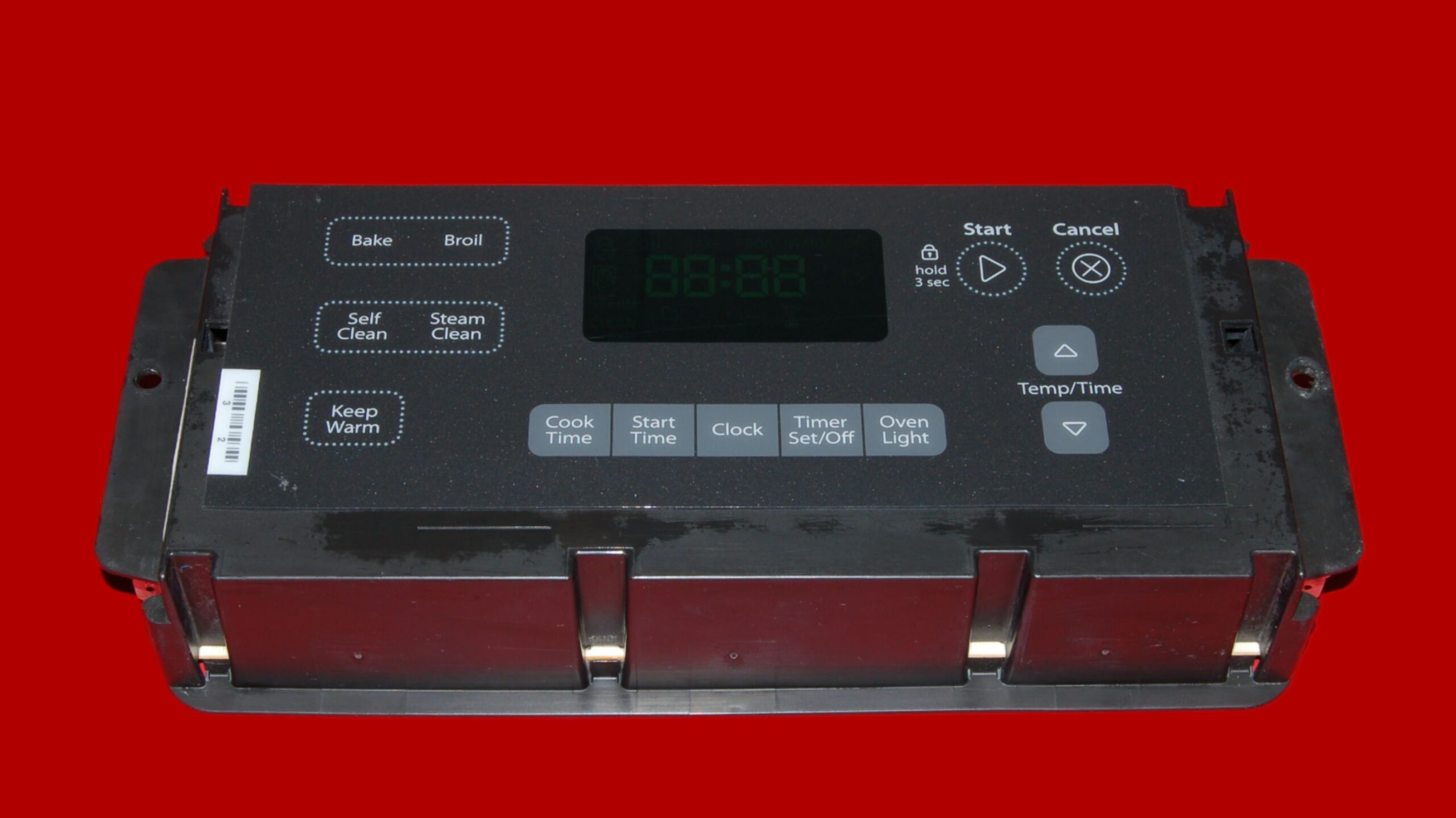

Overlay Good: This item shows general wear and will have light scratches, scuffs, or possibly a small nick or ding.
Color: Dark Gray
Power: Electric Oven
Common Reasons for Failure
Power surges or electrical spikes damaging sensitive oven control circuitry.
Heat-related stress causing relay or component failure.
Burned or stuck bake/broil relays preventing proper heating operation.
Worn or cracked solder joints from repeated high-temperature cycles.
Failed internal components affecting temperature regulation or timing.
Common Symptoms This Part May Fix
Oven not heating or heating inconsistently.
Oven will not turn on or shuts off unexpectedly.
Bake or broil functions do not work or shut off unexpectedly.
Error codes related to temperature or electronic control faults.
(Symptoms vary by model and application)
Important Fitment Information

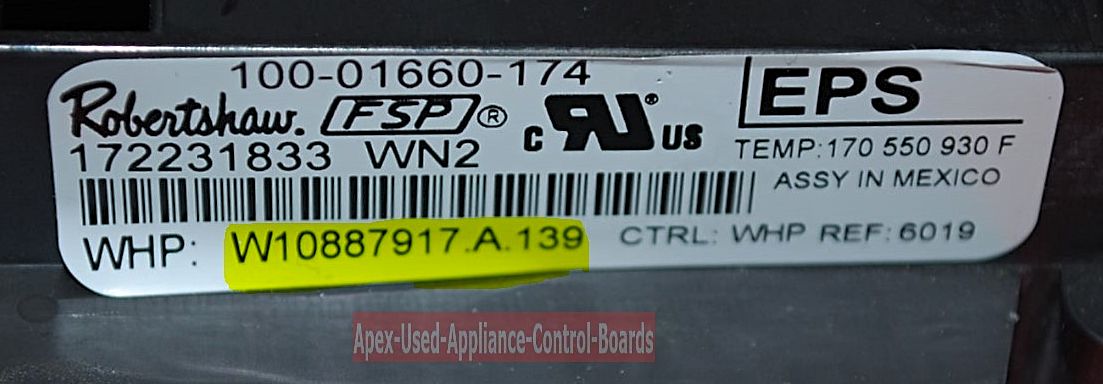

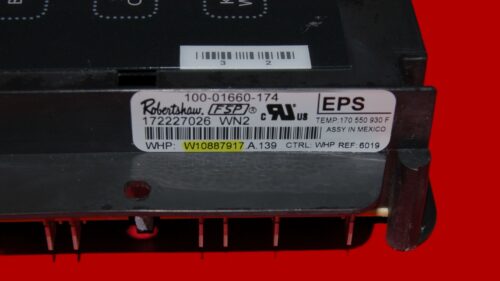

⚠️ Please match the part number on your original control board exactly to W11122543 | W10887917. before ordering.
Many control boards look identical but are NOT interchangeable. Appliance model numbers alone are not sufficient to guarantee compatibility.
Cross-Reference Part Number Information: W11122543 replaces AP6261067, 4546147, PS12114365, W10834007, W10887917, W11043508.
This board fits the following model numbers
4KMER7685ES1
4KMER7685EW1
4KWFE7685ES1
4KWFE7685EW1
WFE515S0EB1
WFE515S0ED1
WFE515S0ES1
WFE515S0ES2
WFE515S0ET1
WFE515S0EW1
YWFE515S0EB0
YWFE515S0EB1
YWFE515S0ES0
YWFE515S0ES1
YWFE515S0EW0
YWFE515S0EW1
What’s Included
1 × Oven Control Board – W11122543 | W10887917
No additional hardware or accessories included.
Warranty & Shipping
6-Month Warranty included for peace of mind.
Carefully packaged for safe delivery.
Fast and Free shipping options available at checkout.
A+ Accredited Business with the BBB.
This item qualifies for 1–2 Days USPS Express Shipping Option B on the Cart Page.
Model numbers and cross-reference part numbers were obtained from AppliancePartsPros.com
Shop with Confidence. All of our pre-owned appliance electronic control boards have been tested, cleaned, and are guaranteed to work. Every part comes with our standard 6-month warranty.
