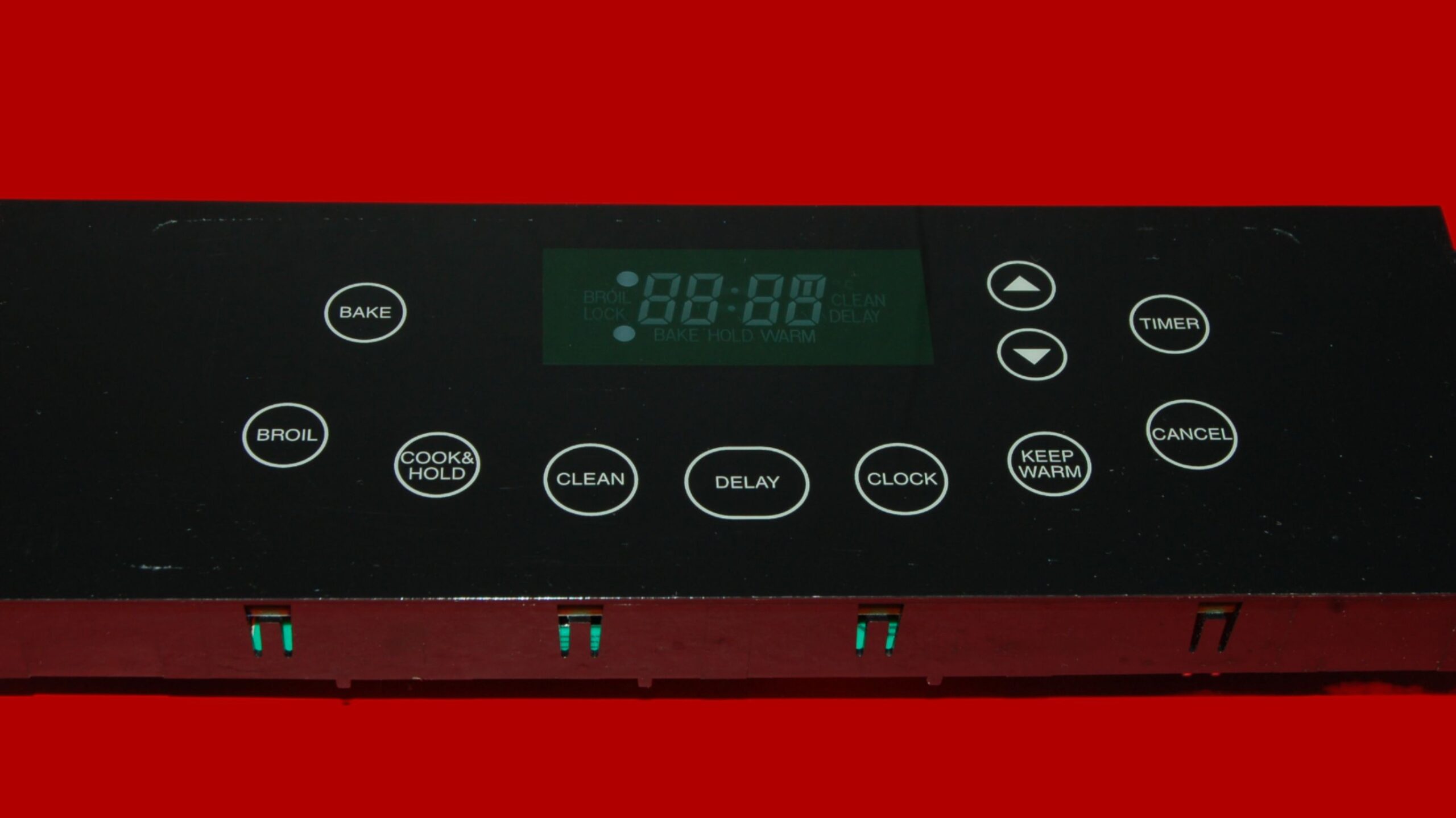

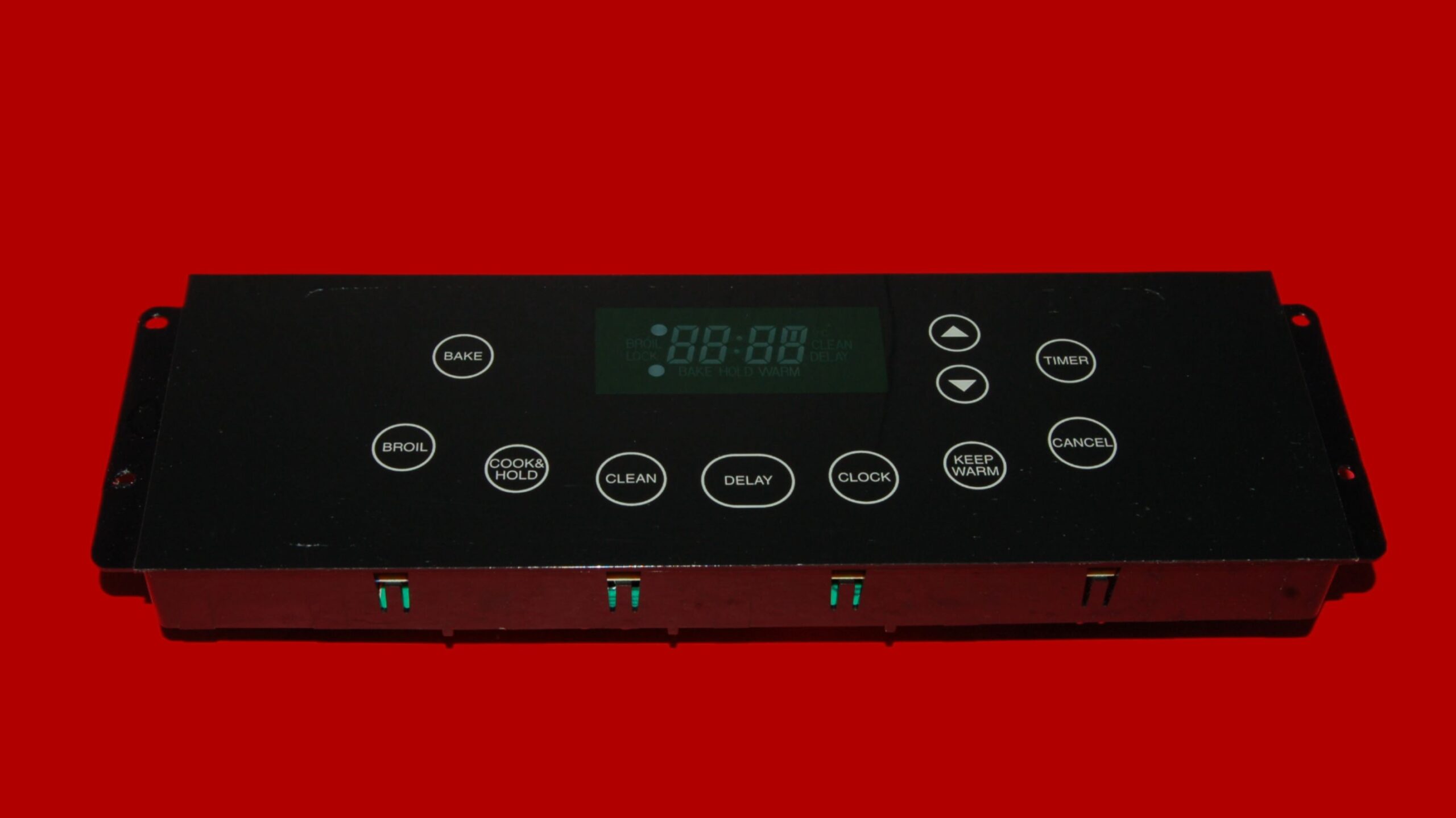

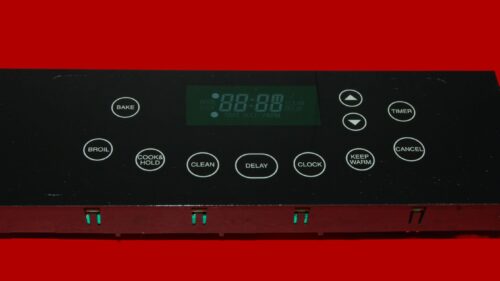

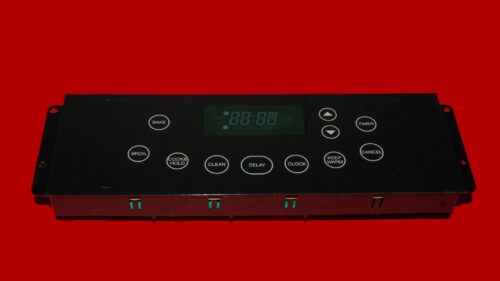

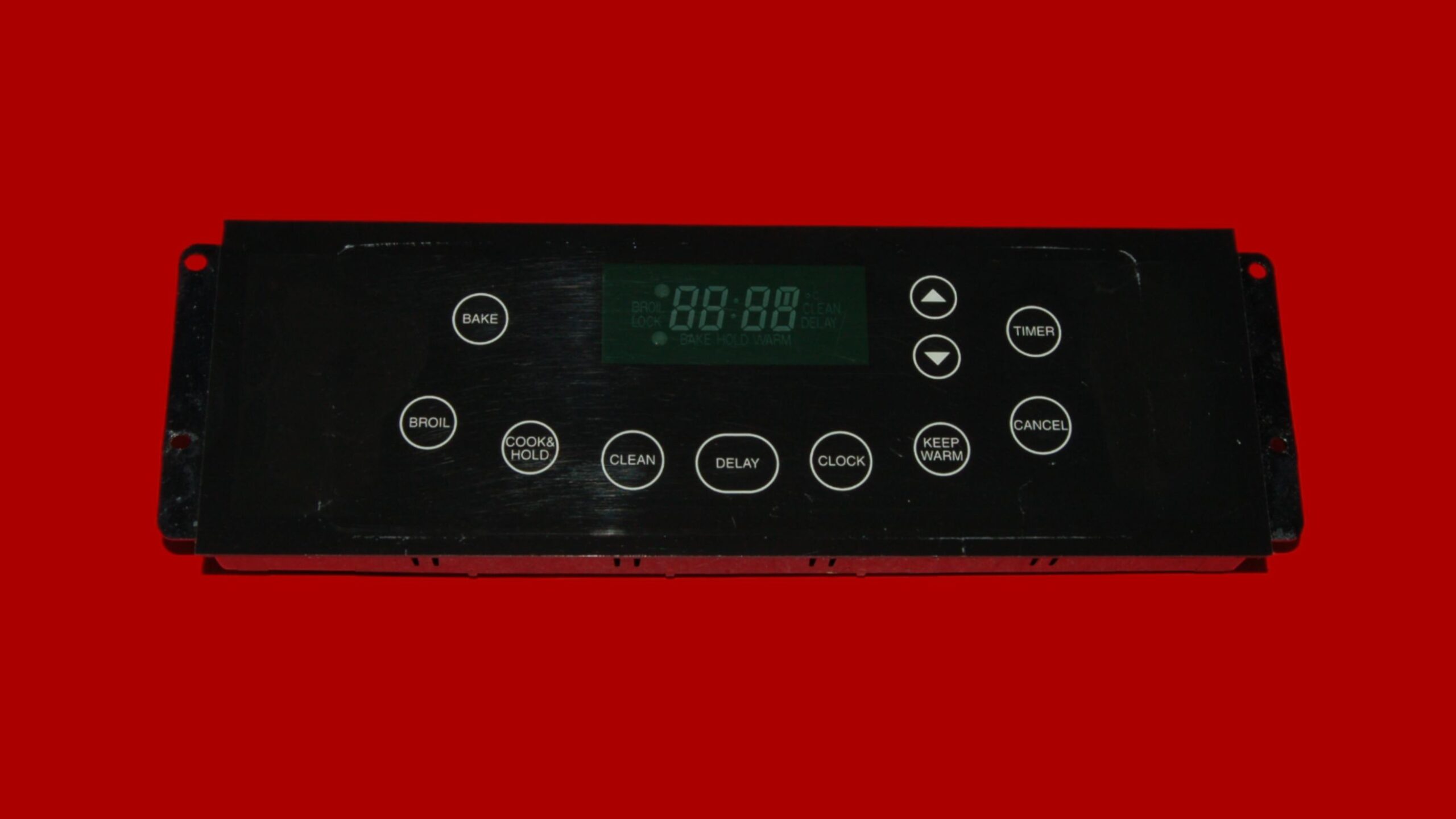

Whirlpool Oven Control Board – Part Number W10769823 | W10343470 (Pre-Owned / Tested)

This is a genuine factory original pre-owned oven control board that has been fully tested, cleaned, and inspected to ensure proper operation.
Each control board is professionally tested and inspected; only those that pass are listed for sale.

Item Condition

Pre-Owned / Used.

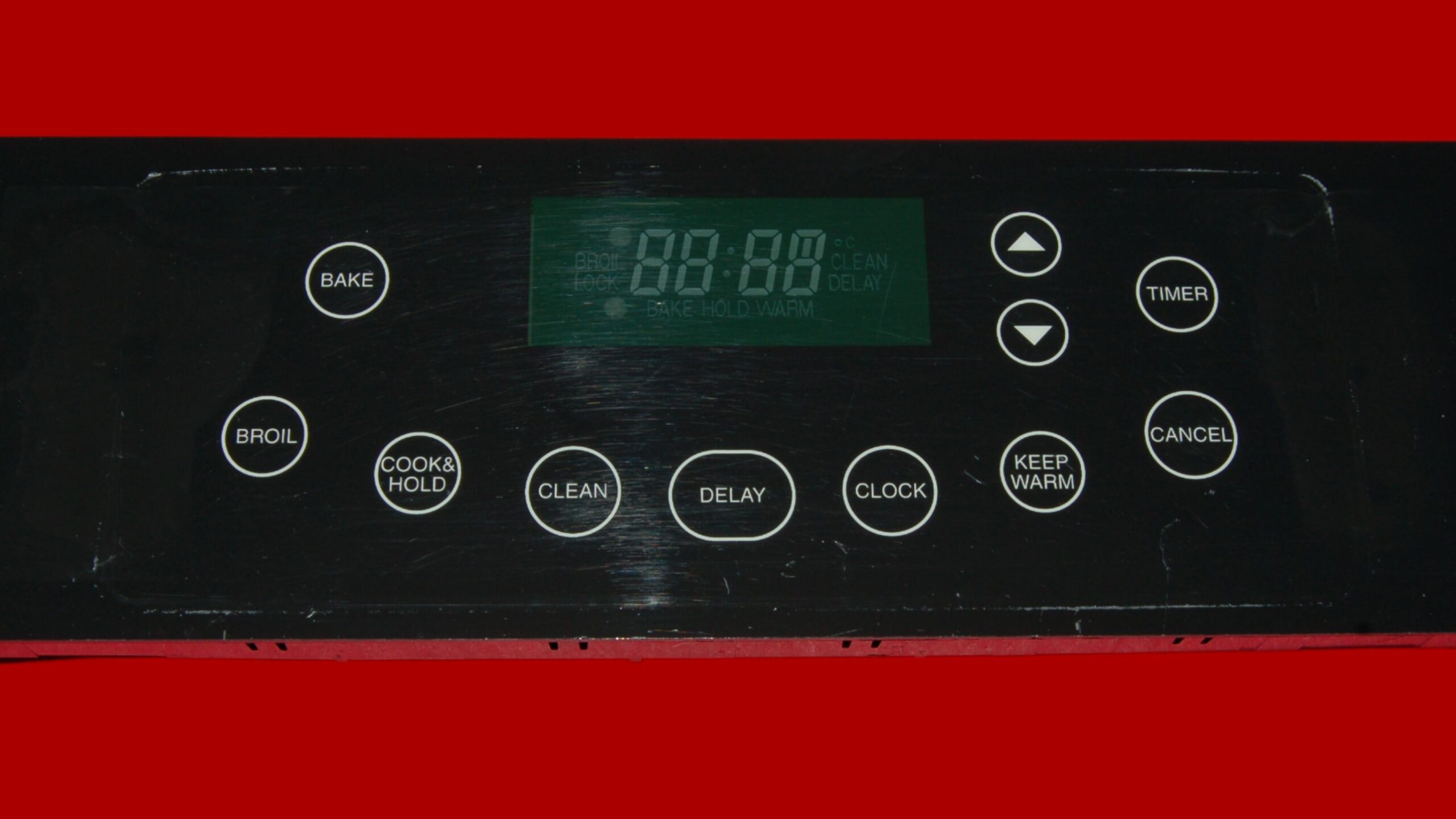

Condition: Overlay Fair: This item does show noticeable wear; it will have marks, scratches, cracks, small nicks, or dings.
Color: Black
Power: Electric Appliance

Common Reasons for Failure

• Power surges or electrical spikes can damage the oven control circuitry.
• Heat-related stress causes relay or component failure.
• Burned or stuck bake/broil relays are preventing proper heating operation.
• Worn or cracked solder joints from repeated high-temperature cycles.
• Failed internal components affecting temperature regulation or timing.

Common Symptoms This Part May Fix

• Oven not heating or heating inconsistently.
• Oven shutting off unexpectedly or fails to turn on.
• No display or partial display on the control board.
• Unresponsive buttons or keypad inputs (when the keypad is separate).
• Error codes related to temperature or electronic control faults.

(Symptoms vary by model and application)

Important Fitment Information

⚠️ Please match the part number on your original oven control board exactly to W10769823 | W10343470 before ordering.

Many oven control boards look identical but are NOT interchangeable.
Appliance model numbers alone are not sufficient to guarantee compatibility.

Cross-Reference Part and Model Number Information:

Alternate / Compatible Part #: W10769823 replaces AP5957888, 5701M877-60, 5701M878-60, W10169863, W10169864, W10169865, W10197041, W10197045, W10343470, W10861954, WPW10169864, 4263644, 74010671, 74010672, 8507P240-60, PS10066110.



Compatible Model Numbers:

MES5552BAB
MES5552BAW
MES5752BAW
MES5752BAB
RS160LXTB0
RS160LXTQ0
RY160LXTQ0
ISE630VS11
ISE630WS00
ISE630WS01 ()
MES5552BAB16
MES5552BAW16
MES5752BAB15
MES5752BAB16 ()
MES5752BAS
MES5752BAS16
MES5752BAS17 ()
MES5752BAW15
MES5752BAW16 ()
RS160LXTB1
RS160LXTQ1
RS160LXTS0
RS160LXTS1
RY160LXTB0
RY160LXTB02
RY160LXTB1
RY160LXTB2
RY160LXTQ02
RY160LXTQ1
RY160LXTQ2
RY160LXTS0
RY160LXTS03
RY160LXTS3
WDE150LVB0
WDE150LVB01
WDE150LVQ0
WDE150LVQ01
WDE150LVS0
WDE150LVS01
WDE150LVT0
WDE150LVT01
WDE150LVT01C
WDE151LVQ01
WDE350LVB0
WDE350LVB01
WDE350LVB02 ()
WDE350LVQ0
WDE350LVQ01
WDE350LVQ02
WDE350LVS0
WDE350LVS01
WDE350LVS02
WDE350LVT01
YISE630VS11
YISE630VS12
YISE630WS00
YISE630WS01

What’s Included

1 × Oven Electronic Control Board – W10769823 | W10343470
No additional hardware or accessories included.

BEFORE YOU BUY – VERIFY:

☐ Check your appliance’s model number (from the list of compatible Model Numbers provided).

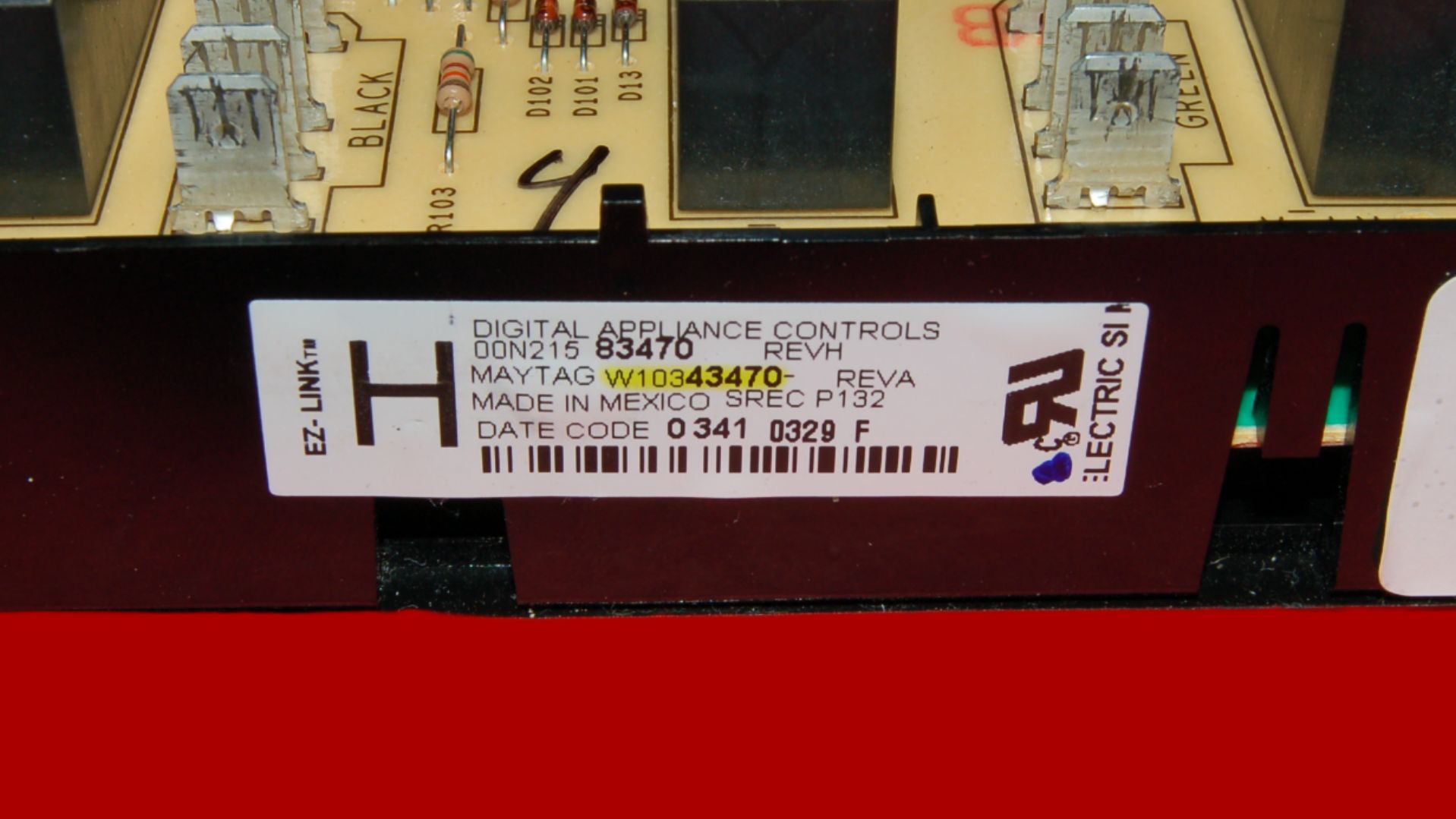

☐ Compare our Part Number EXACTLY to your failed board – must match 100% (removal of your control board is required to find part number sticker).

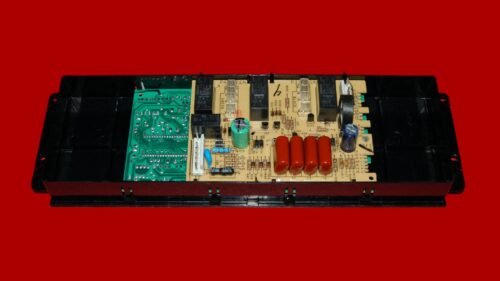

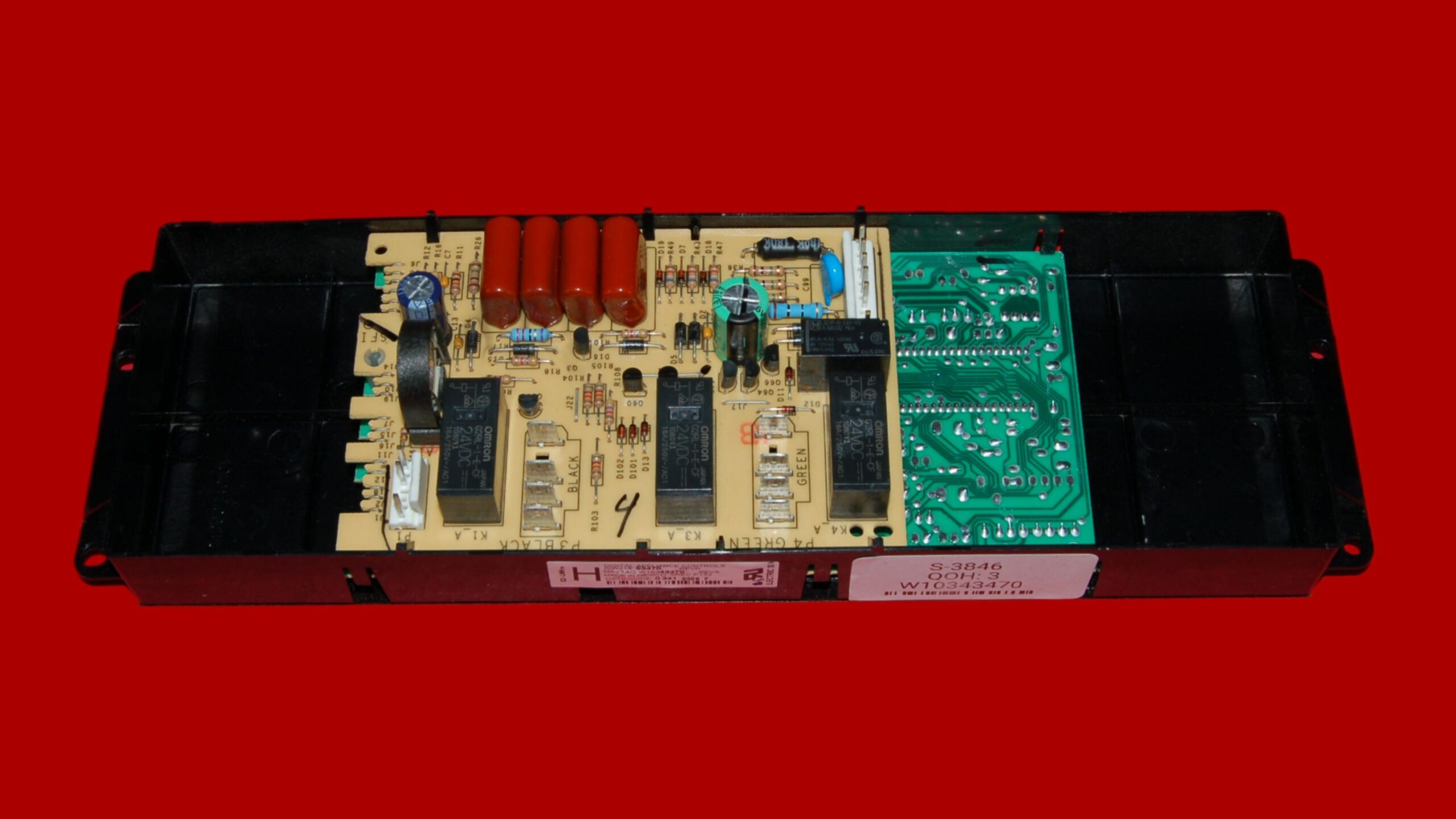

☐ Verify board appearance matches our photos front AND back (wiring ports can differ even when the front looks identical – check both sides).

☐ Not sure? Message us your model # before purchasing – we’ll confirm compatibility.

Shipping Options

Fast and free shipping options are available at checkout.
Priority Mail (Recommended): Orders placed before 2 PM ship the same business day—best choice for time-sensitive repairs and buyers who want the most reliable handling.
Ground Shipping (Free): Ships within 1 business day. Delivery times may be similar for nearby locations; however, delivery times are generally longer than Priority Mail.

Warranty And Assurance

6-Month Warranty included for peace of mind.
Specializing in appliance control boards since 2014.
All orders are carefully packaged for safe delivery.
A+ Accredited Business with the BBB.

Model numbers and cross-reference part numbers were obtained from
AppliancePartsPros.com.
