Part # WP12001628 | 7601P616-60 | Whirlpool Oven Control Board (overlay good – Bisque)
Original price was: $96.00.$88.00Current price is: $88.00.

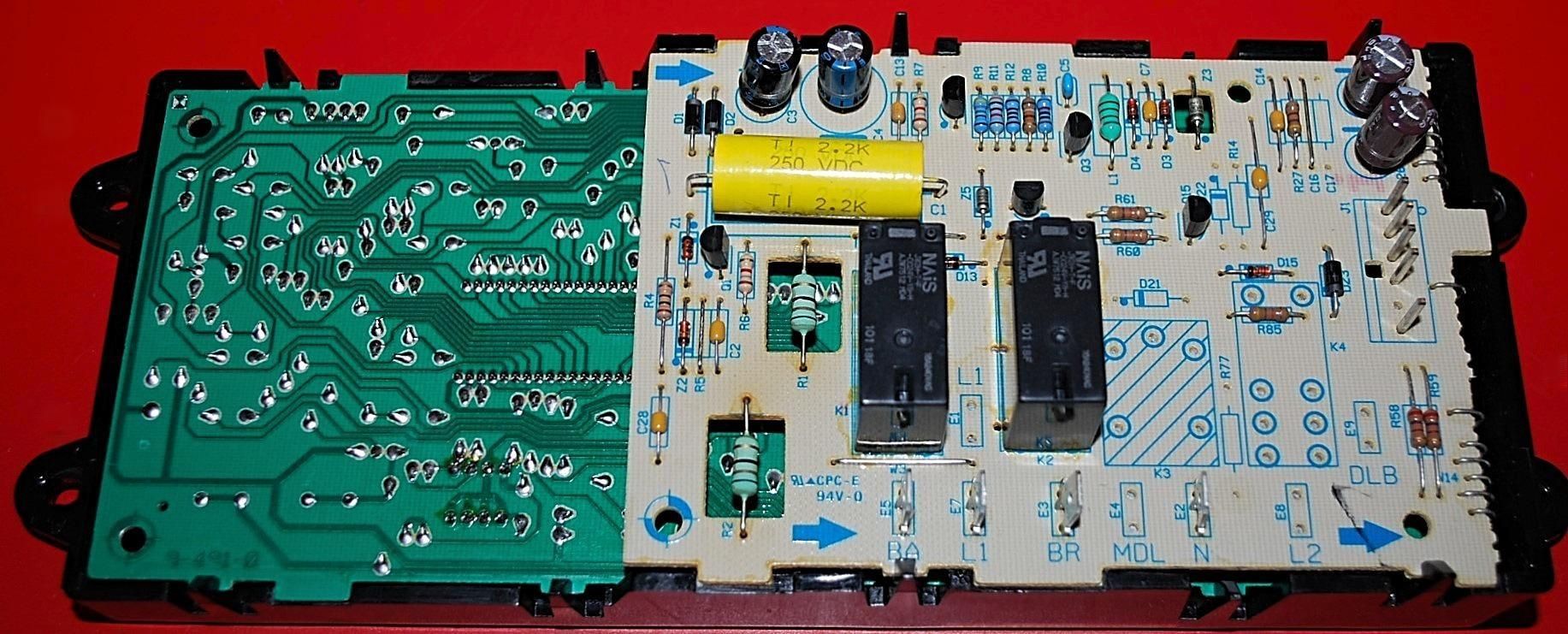

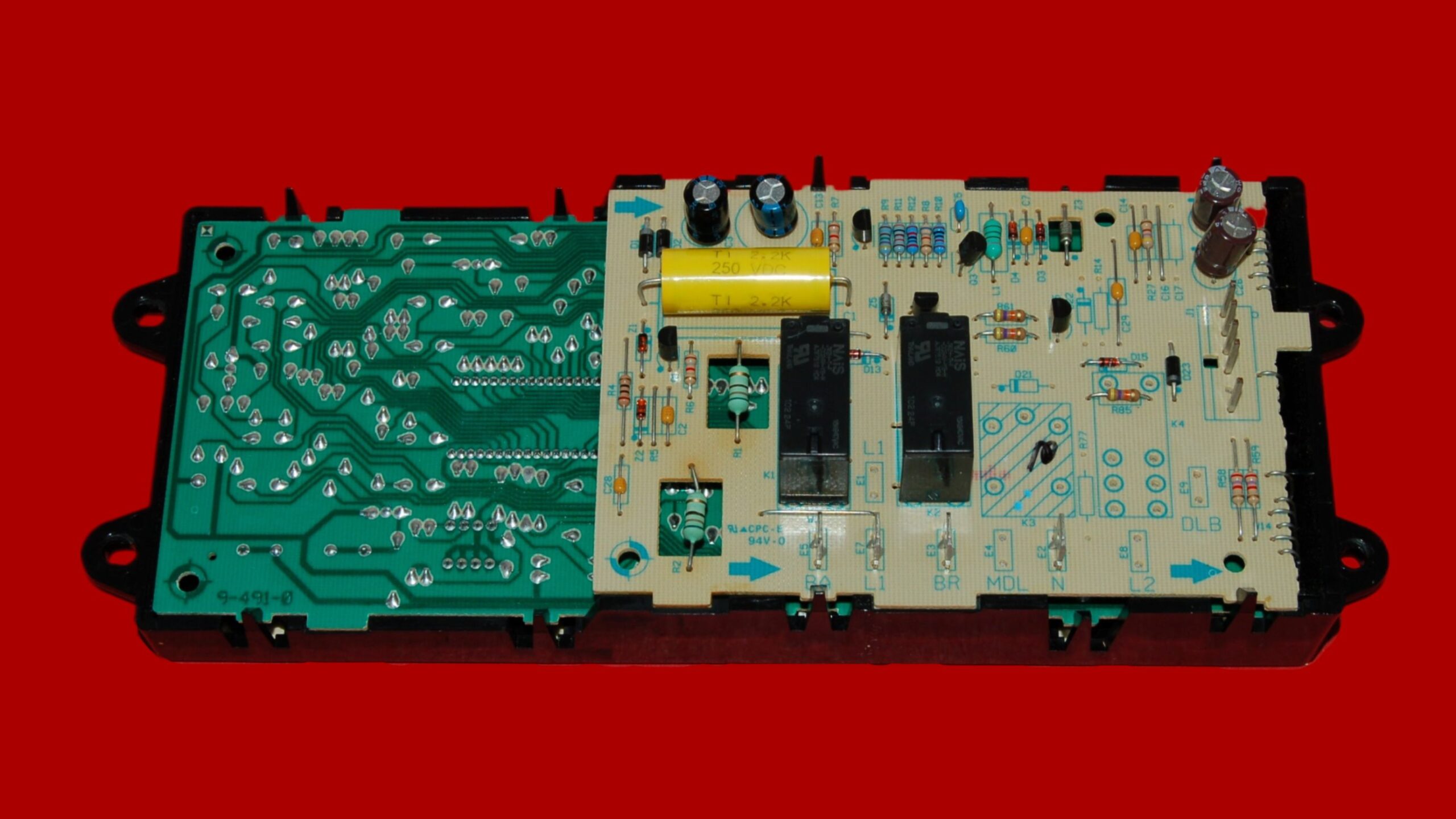

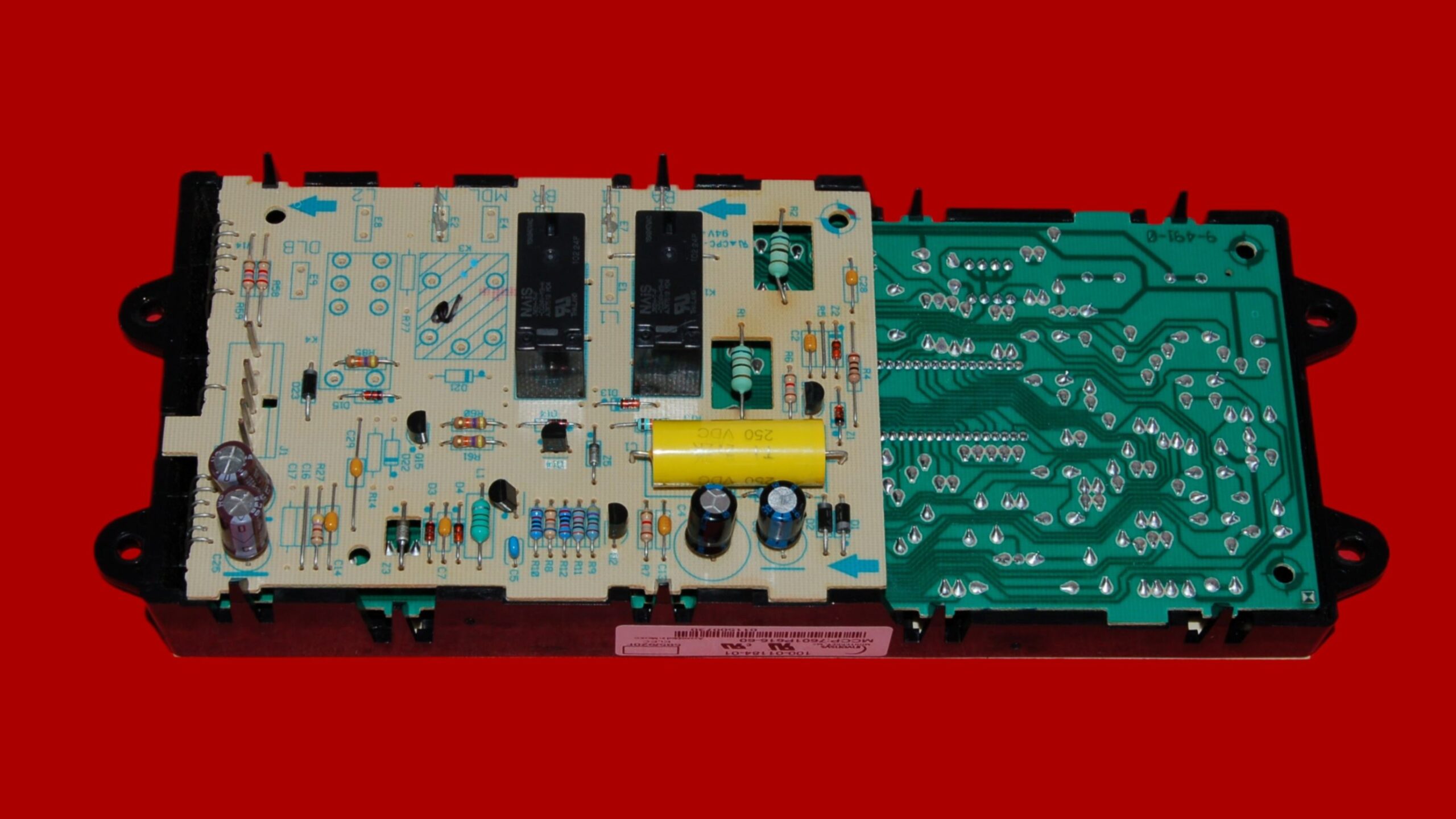

Whirlpool Oven Control Board – Part Numbers WP12001628 | 7601P616-60 (Pre-Owned / Tested)
This listing is for a genuine oven electronic control board, part numbers WP12001628 | 7601P616-60. This is a factory original pre-owned part that has been fully tested, cleaned, and inspected to ensure proper operation.
Only boards that pass professional testing and inspection are listed for sale.
Item Condition
Pre-Owned / Used.
Tested and guaranteed to function properly.
Cosmetic wear may be present from normal use.
Condition Description:

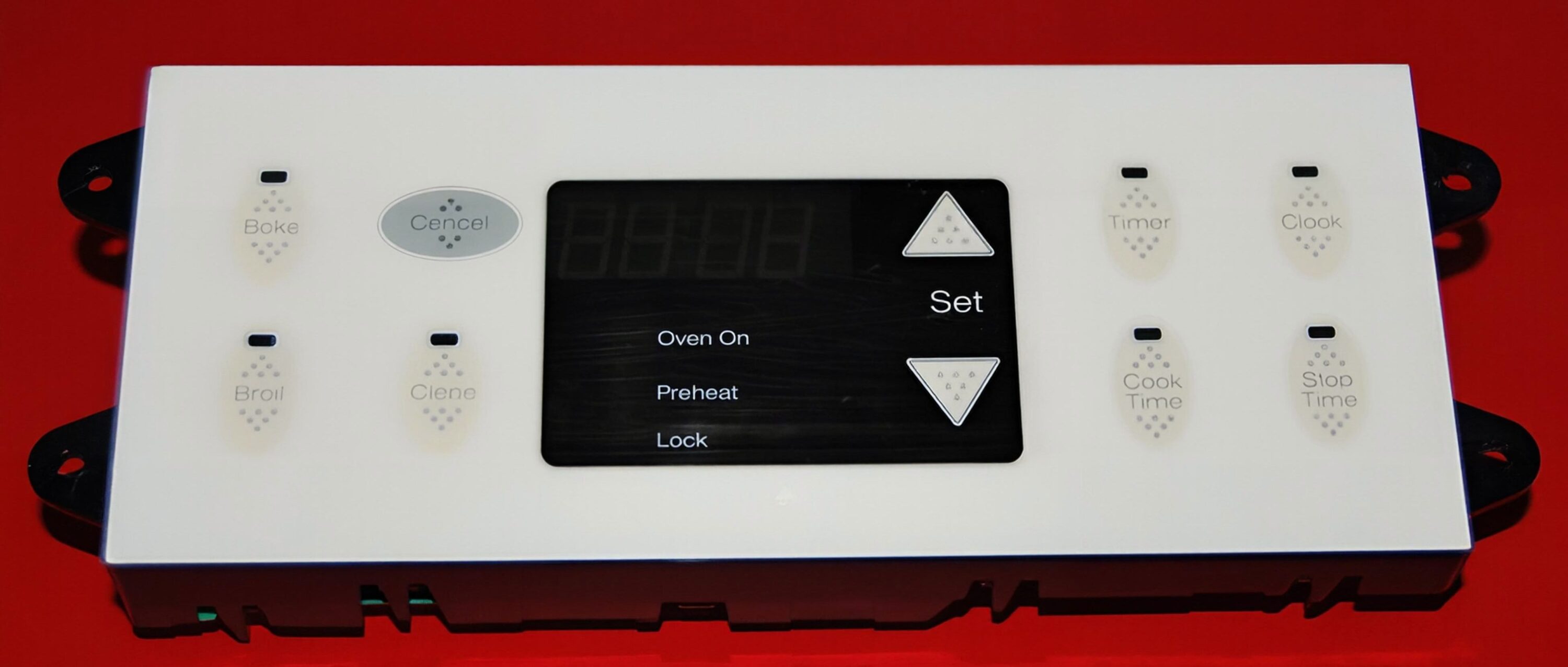

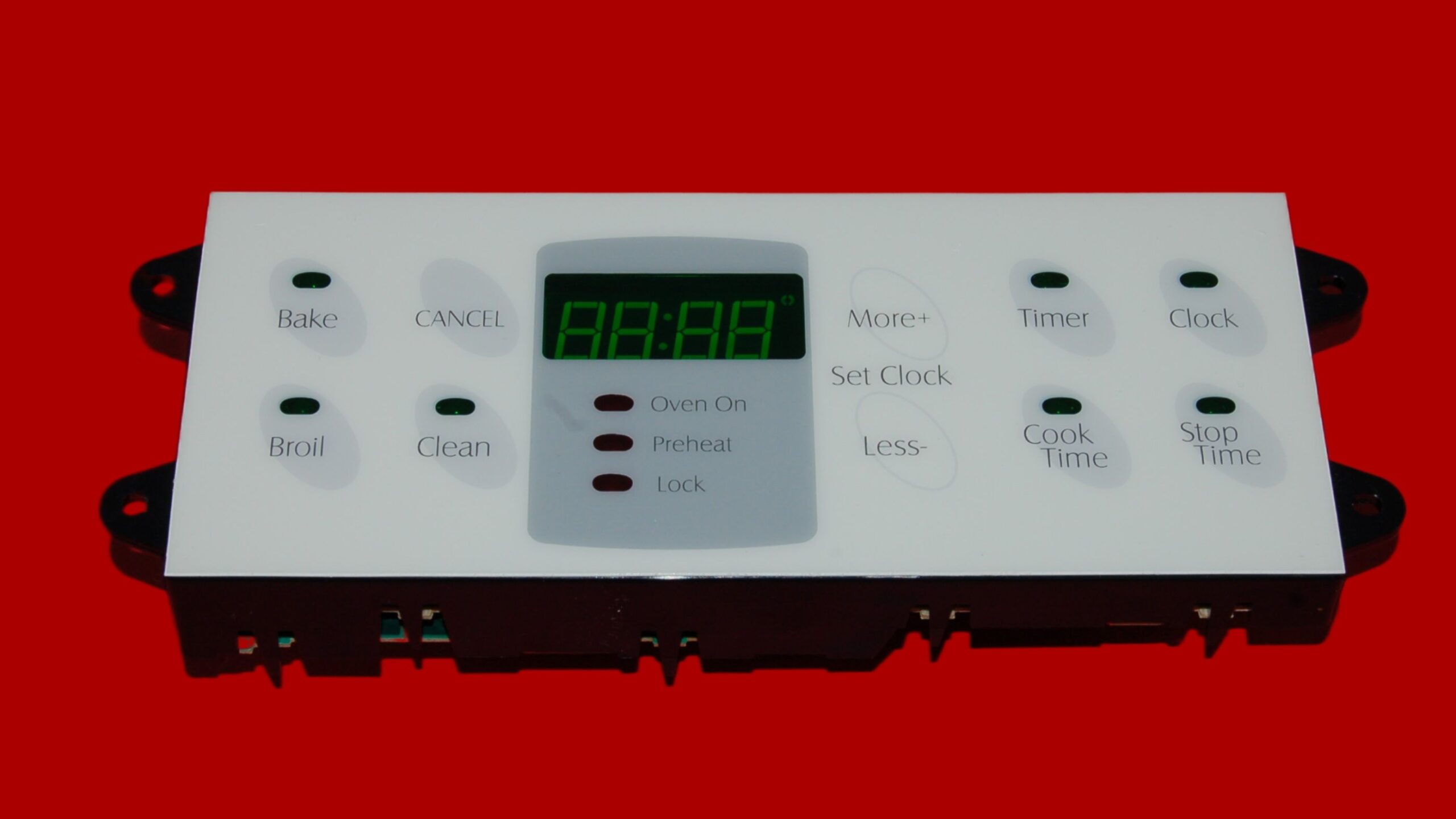

Overlay: Good
Color: Bisque
Power: Electric Oven
Common Reasons for Failure
Power surges or electrical spikes damaging sensitive oven control circuitry.
Heat-related stress causing relay or component failure.
Burned or stuck bake/broil relays preventing proper heating operation.
Worn or cracked solder joints from repeated high-temperature cycles.
Failed internal components affecting temperature regulation or timing.
Common Symptoms This Part May Fix
Oven not heating or heating inconsistently.
Oven will not turn on or shuts off unexpectedly.
Bake or broil functions do not work or shut off unexpectedly.
Error codes related to temperature or electronic control faults.
(Symptoms vary by model and application)
Important Fitment Information

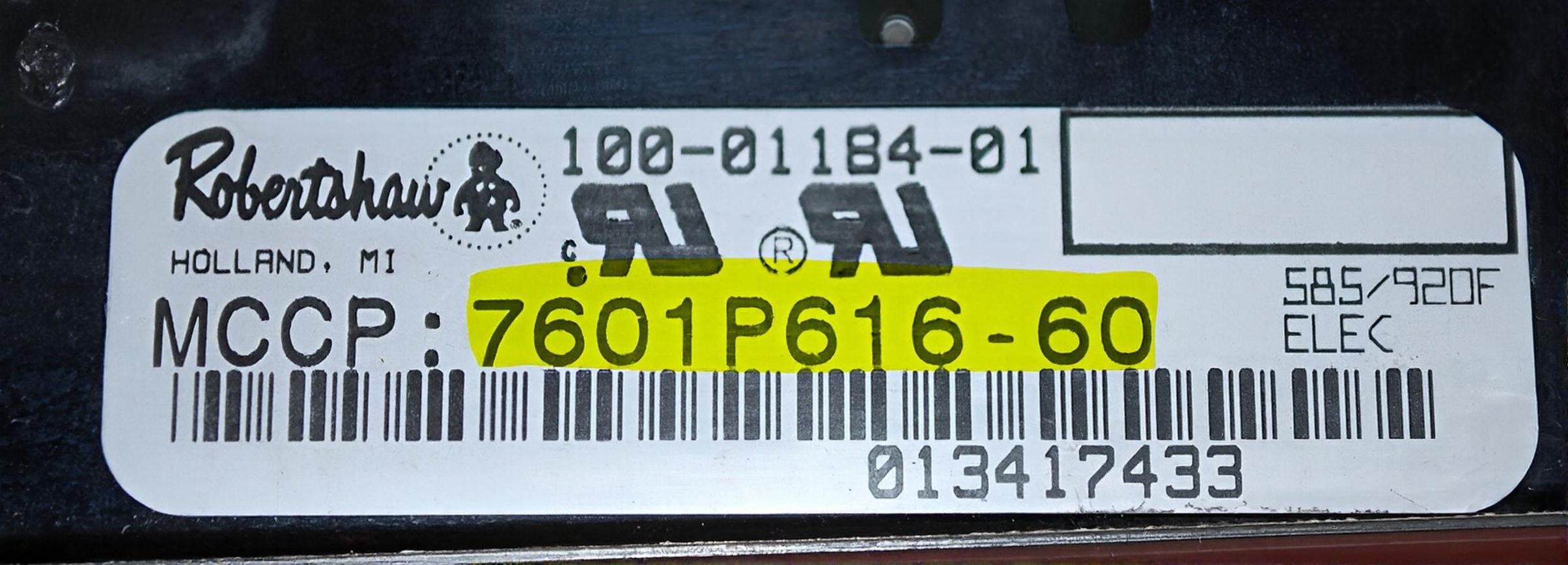

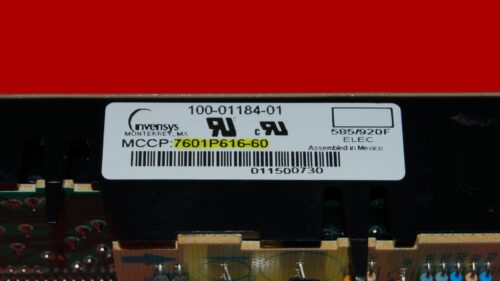

⚠️ Please match the part number on your original control board exactly to WP12001628 or 7601P616-60 before ordering.
Many control boards look identical but are NOT interchangeable. Appliance model numbers alone are not sufficient to guarantee compatibility.
Cross-Reference Part Number Information: WP12001628 replaces AP6005415, 12001628, 100-01184-00, 12001624, 74003485, 74003486, 74003487, 74003625, 74003626, 74003676, 74003714, 74003715, 74003734, 74003735, 74003736, 74006239, 74007516, PS11738462.
This board fits the following model numbers
MER5730AAW
MER5530AAW
MER5710AAW
MER5750AAW
CER3540AAW
MER5530AAH
MER5730AAA
MER5530AAT
MER5750AAA
CER3540AAH
CER3540AAL
CER3540AAA
MER5530AAL
CER3540BAW
CER3740AAL
MER5730AAH
MER5730AAL
MER5755AAW
CER3760BAH
CER3760BAW
CER3540AAT
CER3760BAT
CEW3330AAB
CEW3330AAW
DCF4205BK
DCF4205BT
DF454670
DF454677
DF456570
DF456577
JER8500AAA
JER8500AAW
JER8530AAW
MER5750AAB
MER5755AAB
What’s Included
1 × Oven Control Board – WP12001628 | 7601P616-60.
No additional hardware or accessories included.
Warranty & Shipping
6-Month Warranty included for peace of mind.
Carefully packaged for safe delivery.
Fast and Free shipping options available at checkout.
A+ Accredited Business with the BBB.
Shop with Confidence. All of our pre-owned appliance electronic control boards have been tested, cleaned, and are guaranteed to work. Every part comes with our standard 6-month warranty.
This item qualifies for 1-2 Days USPS Express Shipping Option B on the Cart Page.
Model numbers and cross-reference part numbers were obtained from AppliancePartsPros.com
