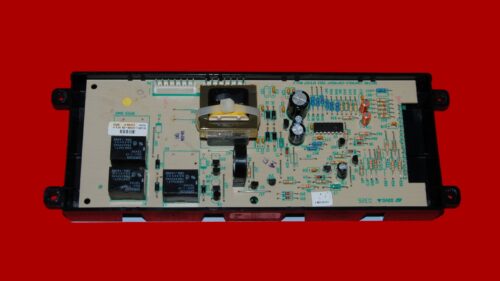

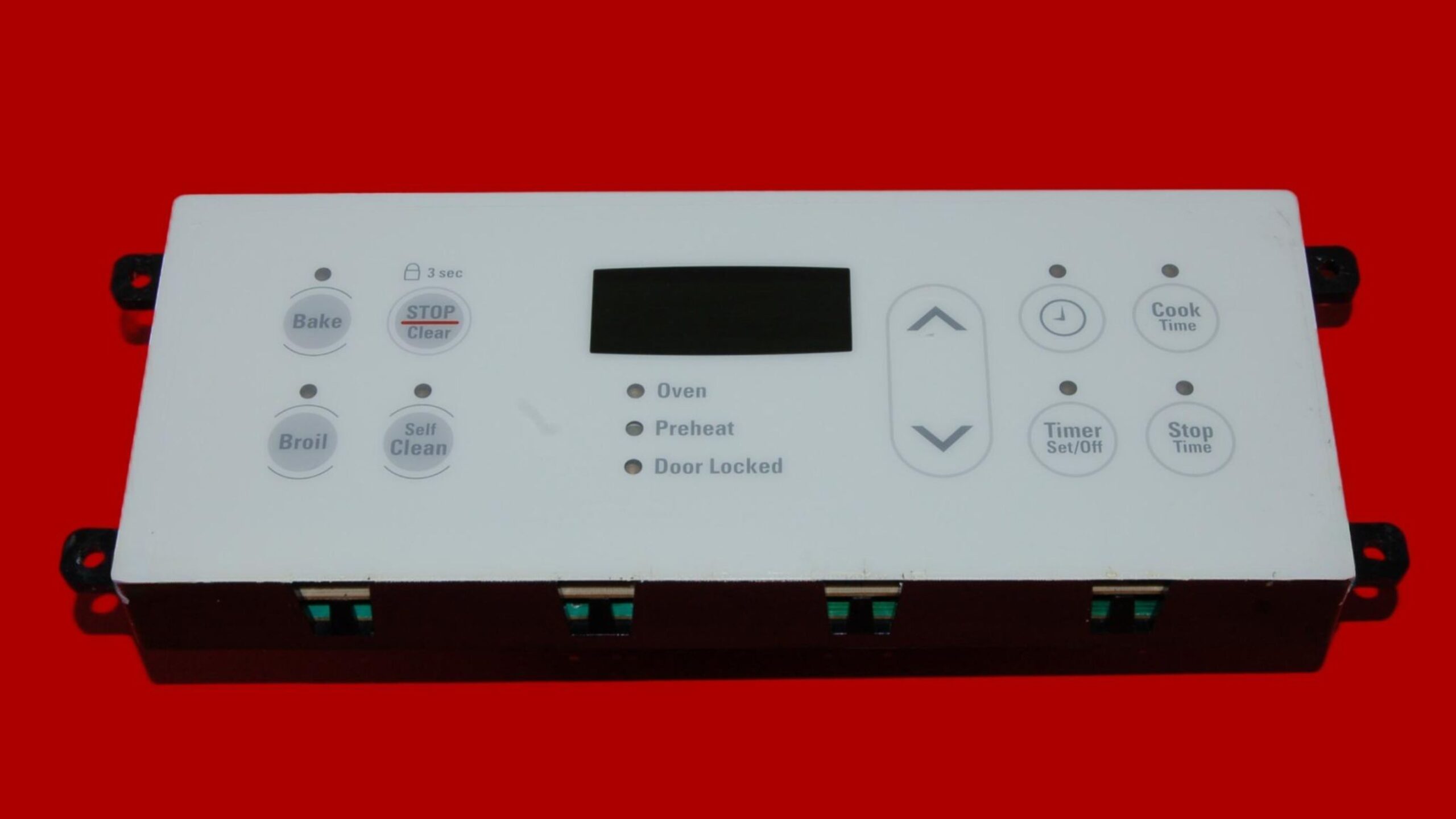

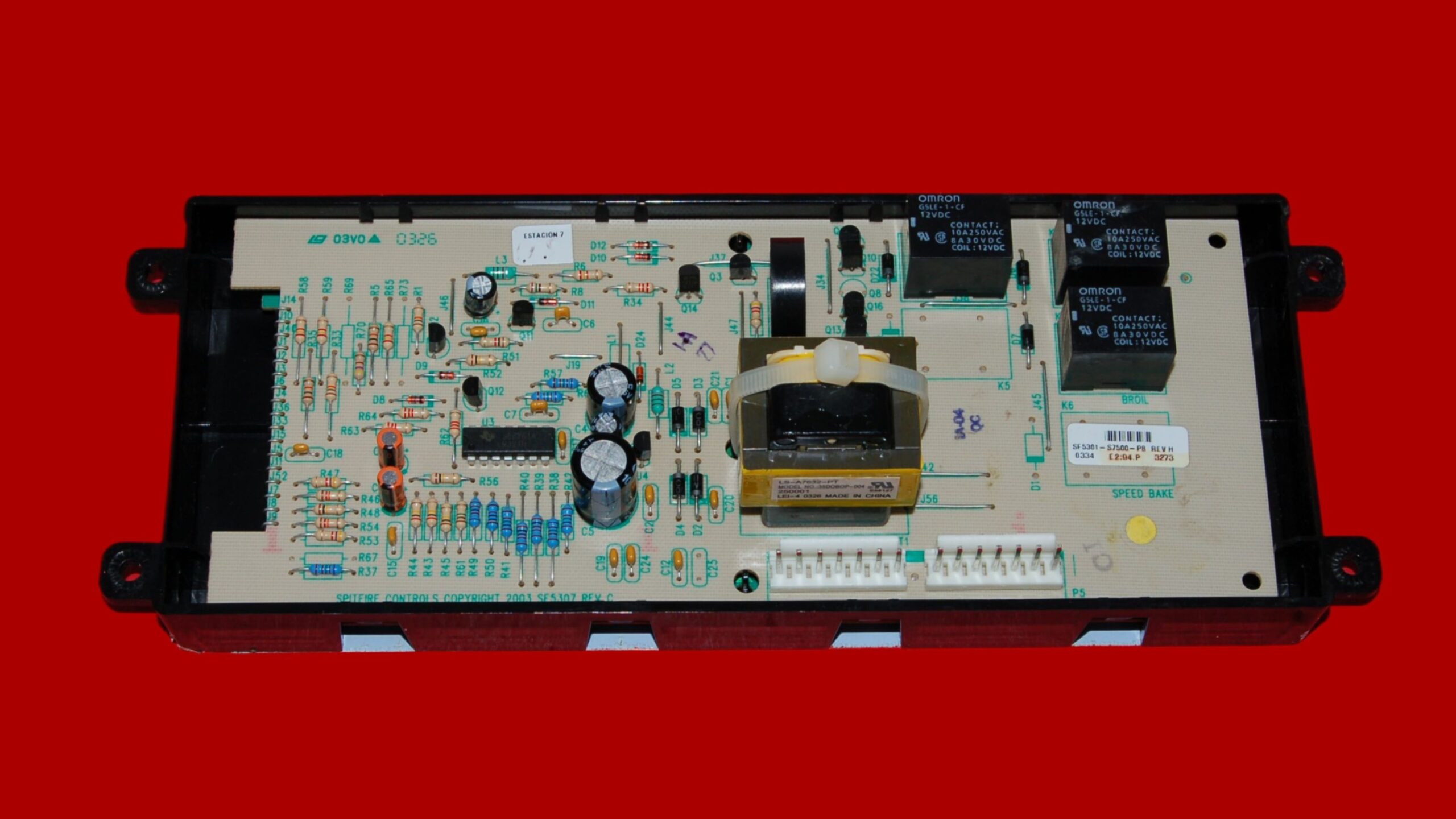

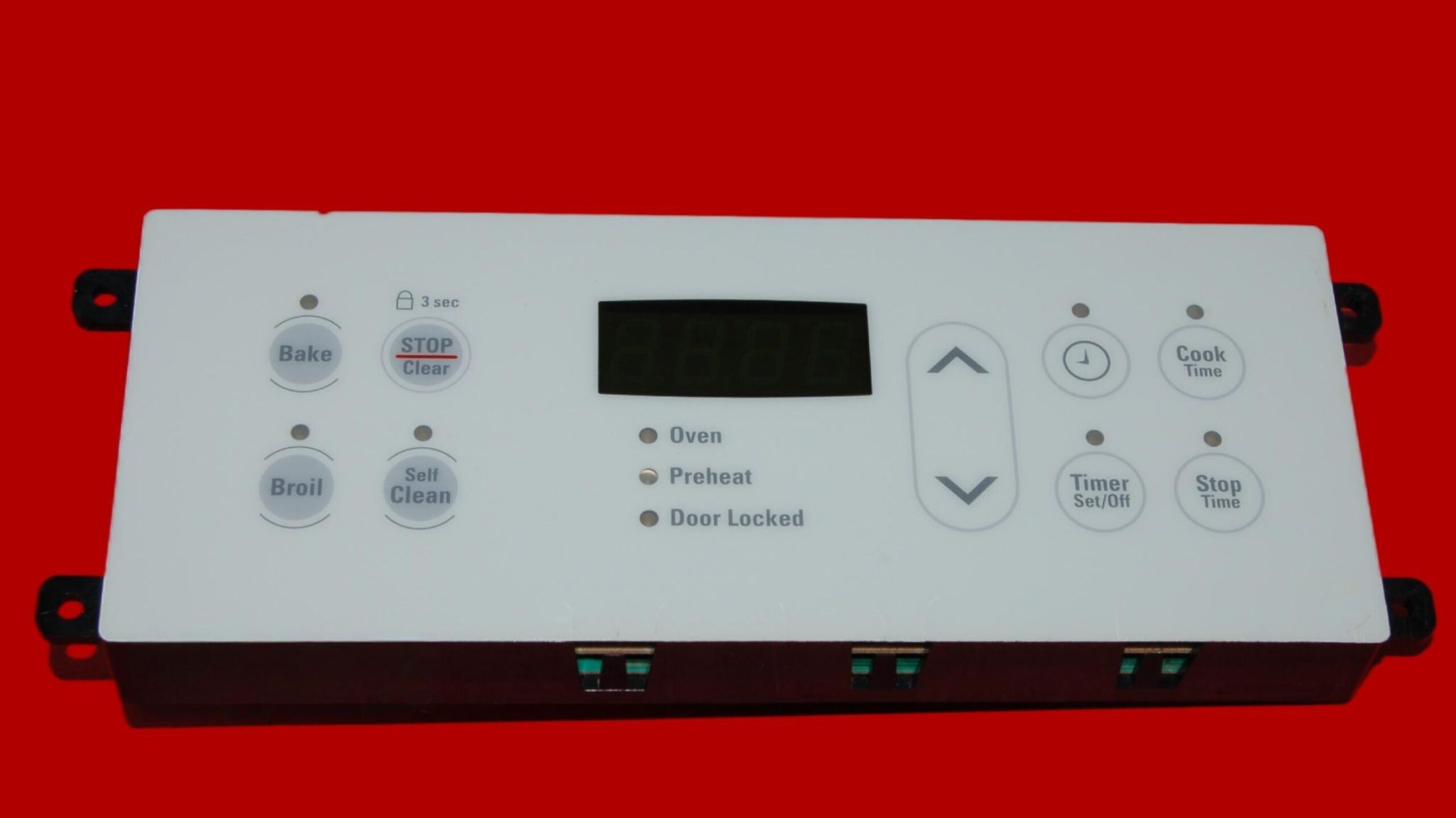

Kenmore Oven Control Board – Part Number 316207500 | 316207520 (Pre-Owned / Tested)

This is a genuine factory original pre‑owned oven control board, expertly tested, cleaned, and fully inspected to ensure proper operation.
Only units that meet our performance standards are offered for sale.

Item Condition

Pre-Owned / Used.

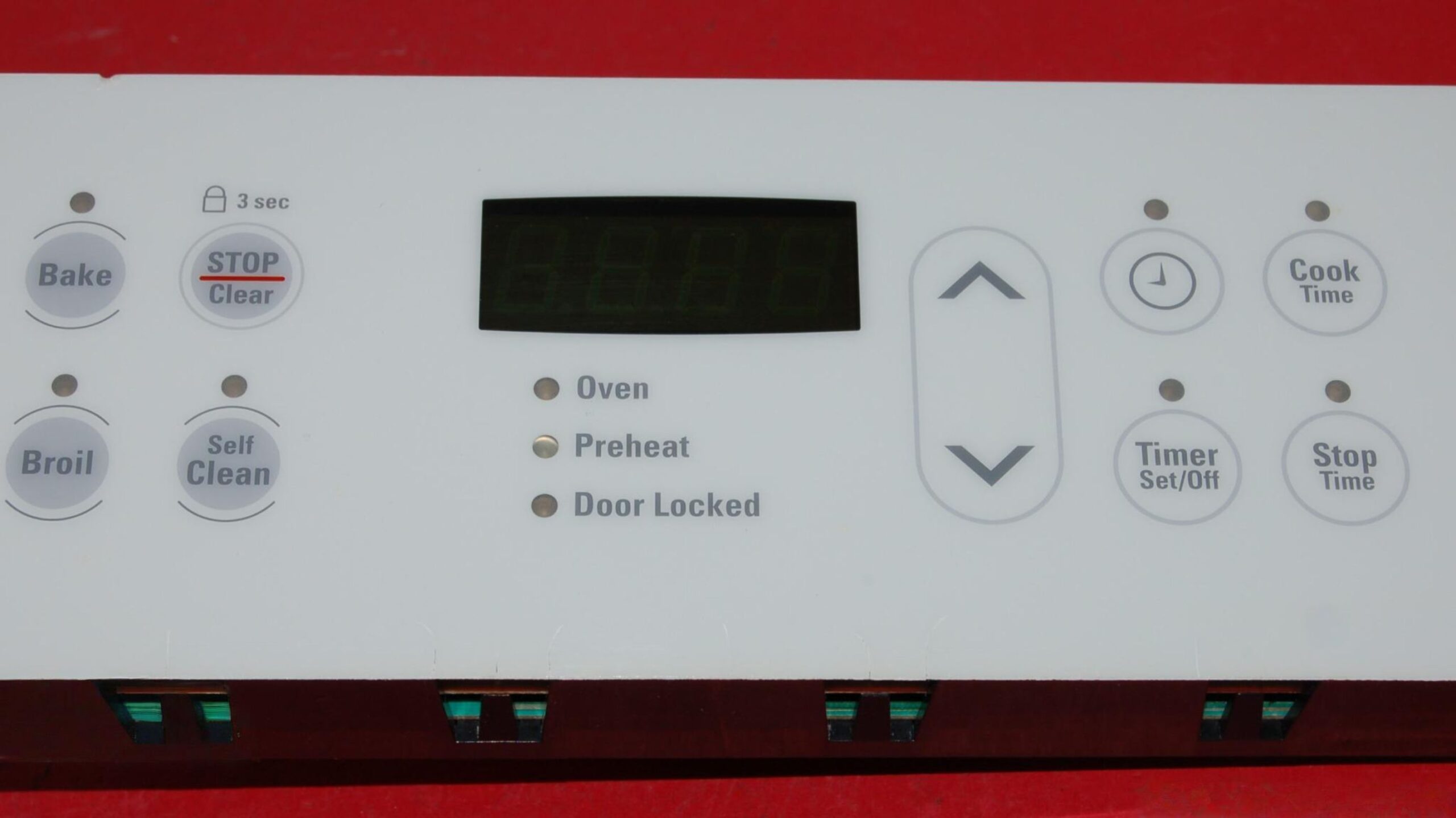

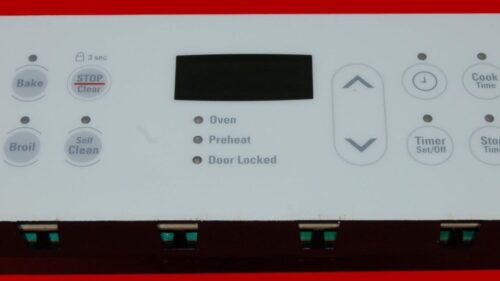

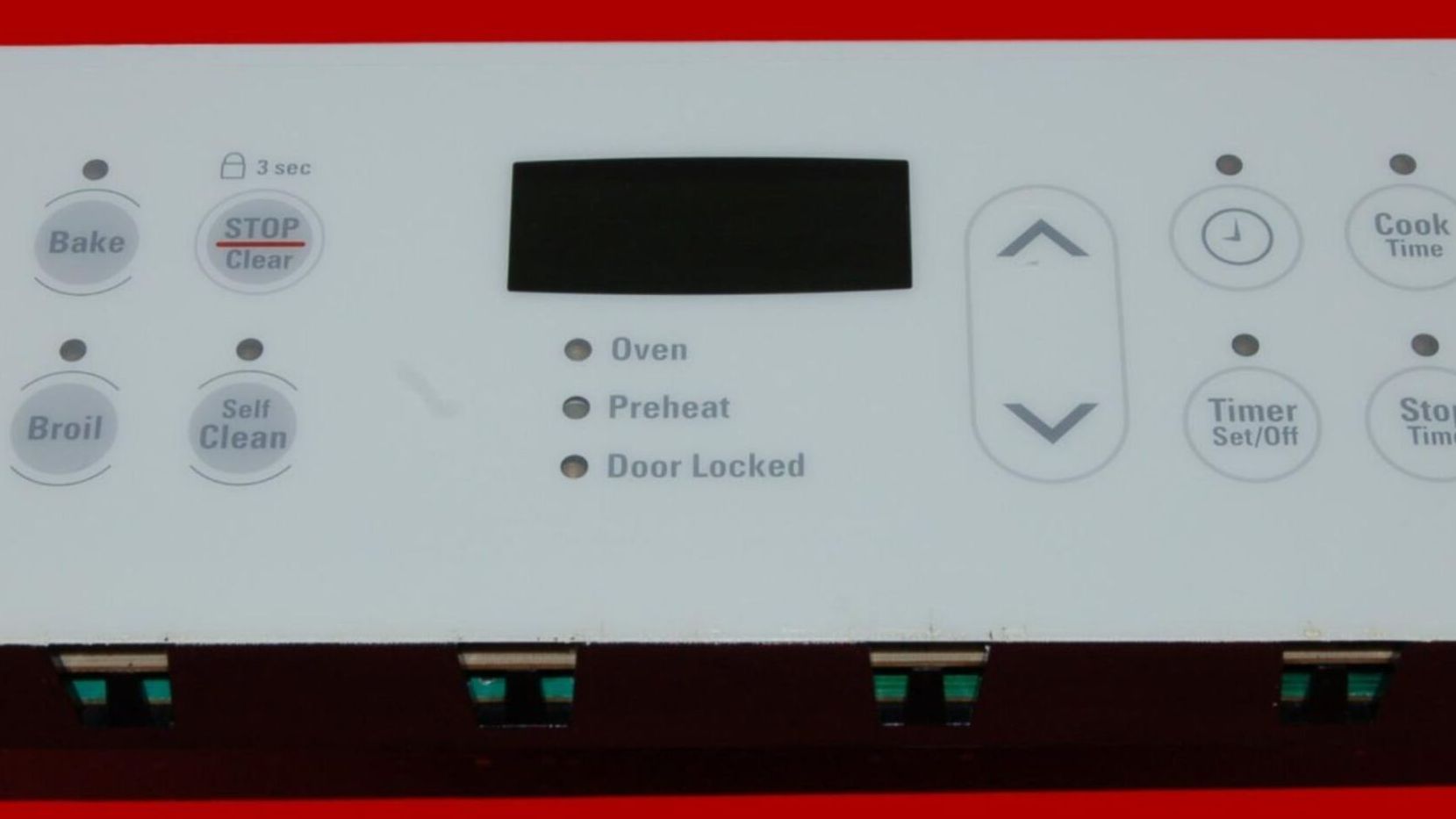

Condition: Overlay Fair: This item does show noticeable wear; it will have marks, scratches, cracks, small nicks, or dings.
Color: White
Power: Gas Appliance

Common Reasons for Failure

• Power surges or electrical spikes can damage the oven control circuitry.
• Heat-related stress causes relay or component failure.
• Burned or stuck bake/broil relays are preventing proper heating operation.
• Worn or cracked solder joints from repeated high-temperature cycles.
• Failed internal components affecting temperature regulation or timing.

Common Symptoms This Part May Fix

• Oven not heating or heating inconsistently.
• Oven shutting off unexpectedly or fails to turn on.
• No display or partial display on the control board.
• Unresponsive buttons or keypad inputs (when the keypad is separate).
• Error codes related to temperature or electronic control faults.

(Symptoms vary by model and application)

Important Fitment Information

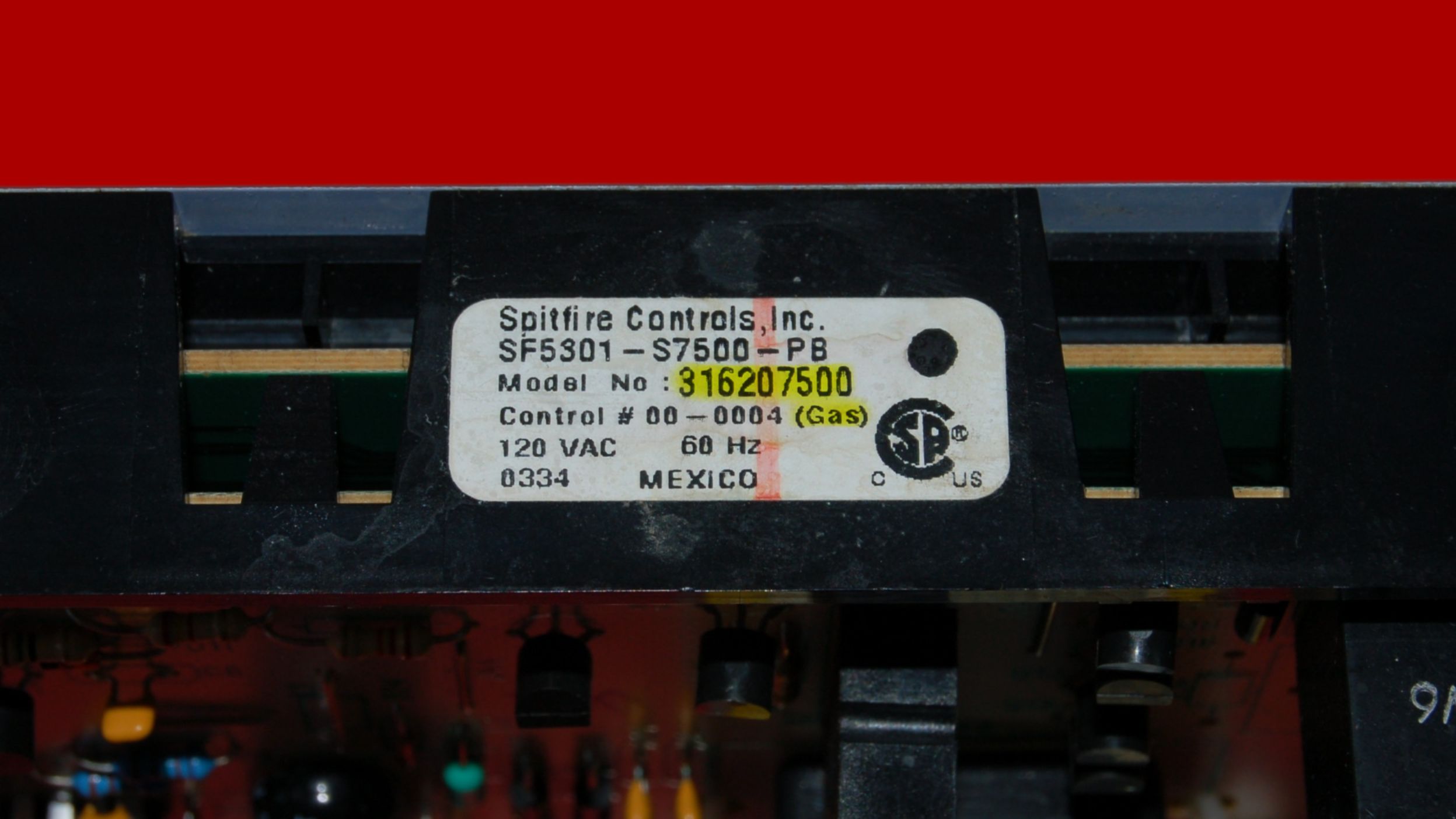

⚠️ Please match the part number on your original oven control board exactly to 316207500 | 316207520 before ordering.

Many oven control boards look identical but are NOT interchangeable.
Appliance model numbers alone are not sufficient to guarantee compatibility.

Cross-Reference Part and Model Number Information:

Alternate / Compatible Part #: 316207520 replaces AP3763194, 1056303, 316207500, 316207500R, 316222900, 316557520, AH977488, EA977488, PS977488.

🔎 Pro-Tip: How to Search This List

• On Mobile: Tap the Share icon (Square with Up Arrow) or the “…” to access the menu screen, then select “Find in Page.”

• On PC: Use the keyboard shortcut Ctrl + F.

Action: Type your Model Number into the search bar that appears, to quickly check for compatibility.
