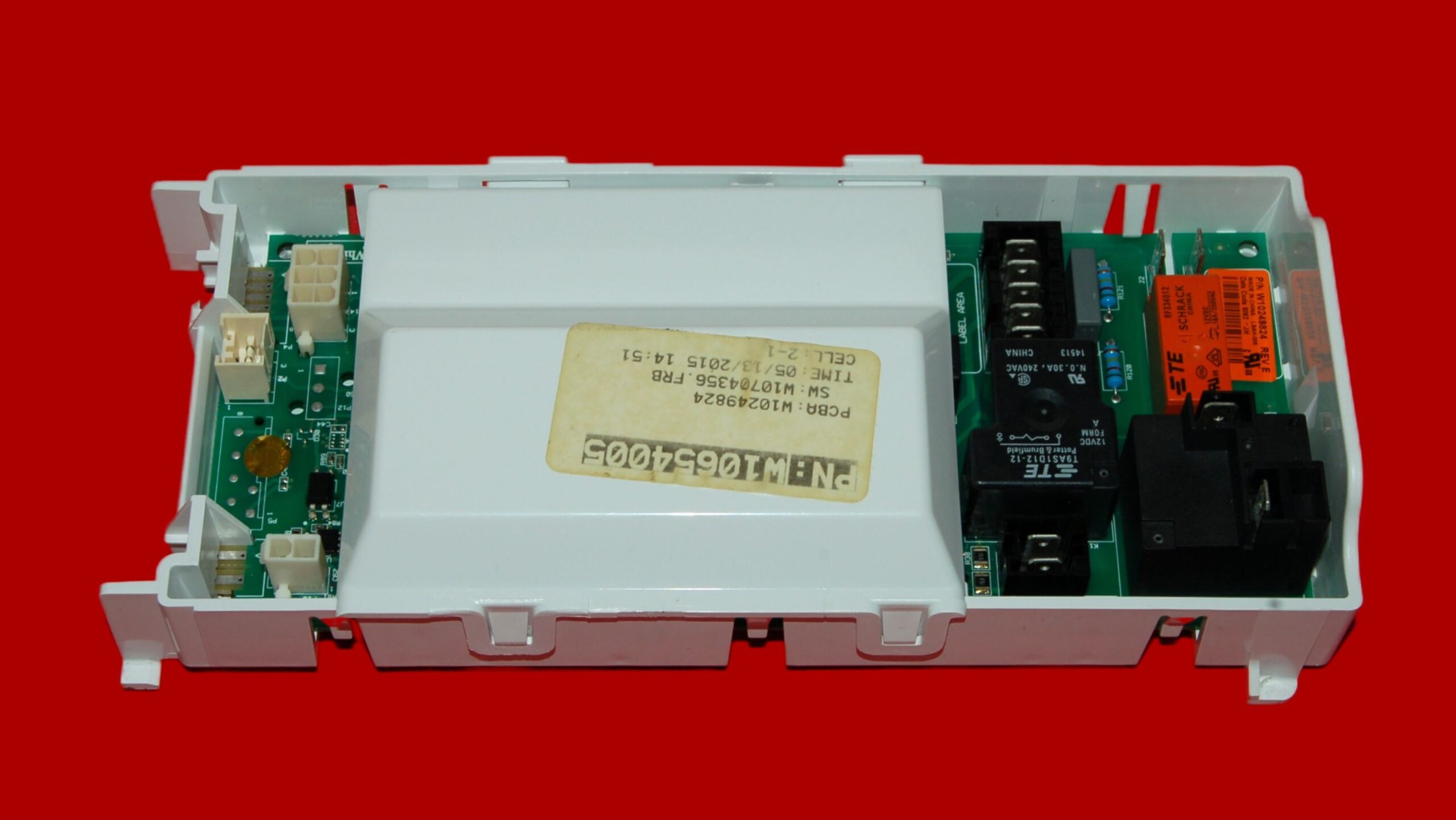

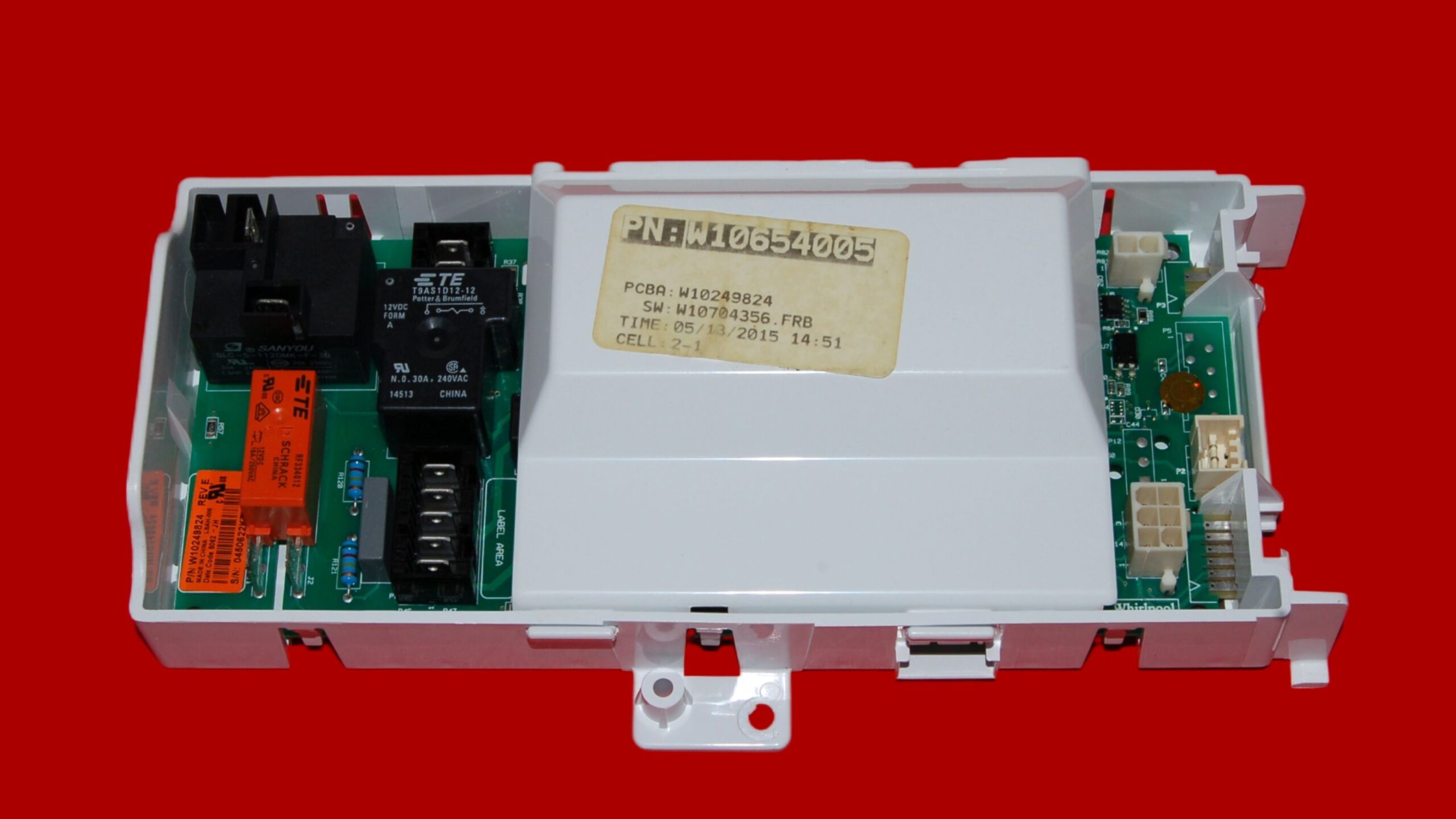

Whirlpool Dryer Control Board – Part Number W10654005 (Pre-Owned / Tested)

This is a genuine factory original pre-owned dryer control board, expertly tested, cleaned, and fully inspected to ensure proper operation.
Only units that meet our performance standards are offered for sale.

Item Condition

Pre-Owned / Used.

Common Reasons for Failure

• Power surges or electrical spikes can damage the dryer control circuitry.
• Heat-related stress causes relay or component failure.
• Failed relays affecting heater, motor, or timer functions.
• Worn or cracked solder joints from vibration and thermal cycling.
• Failed internal components are impacting cycle timing or temperature control.

Common Symptoms This Part May Fix

• Dryer not starting or shutting off unexpectedly.
• No response from the control panel or buttons.
• Dryer not heating or heating intermittently.
• Cycles not advancing or ending properly.
• Error codes or intermittent operation.

(Symptoms vary by model and application)

Important Fitment Information

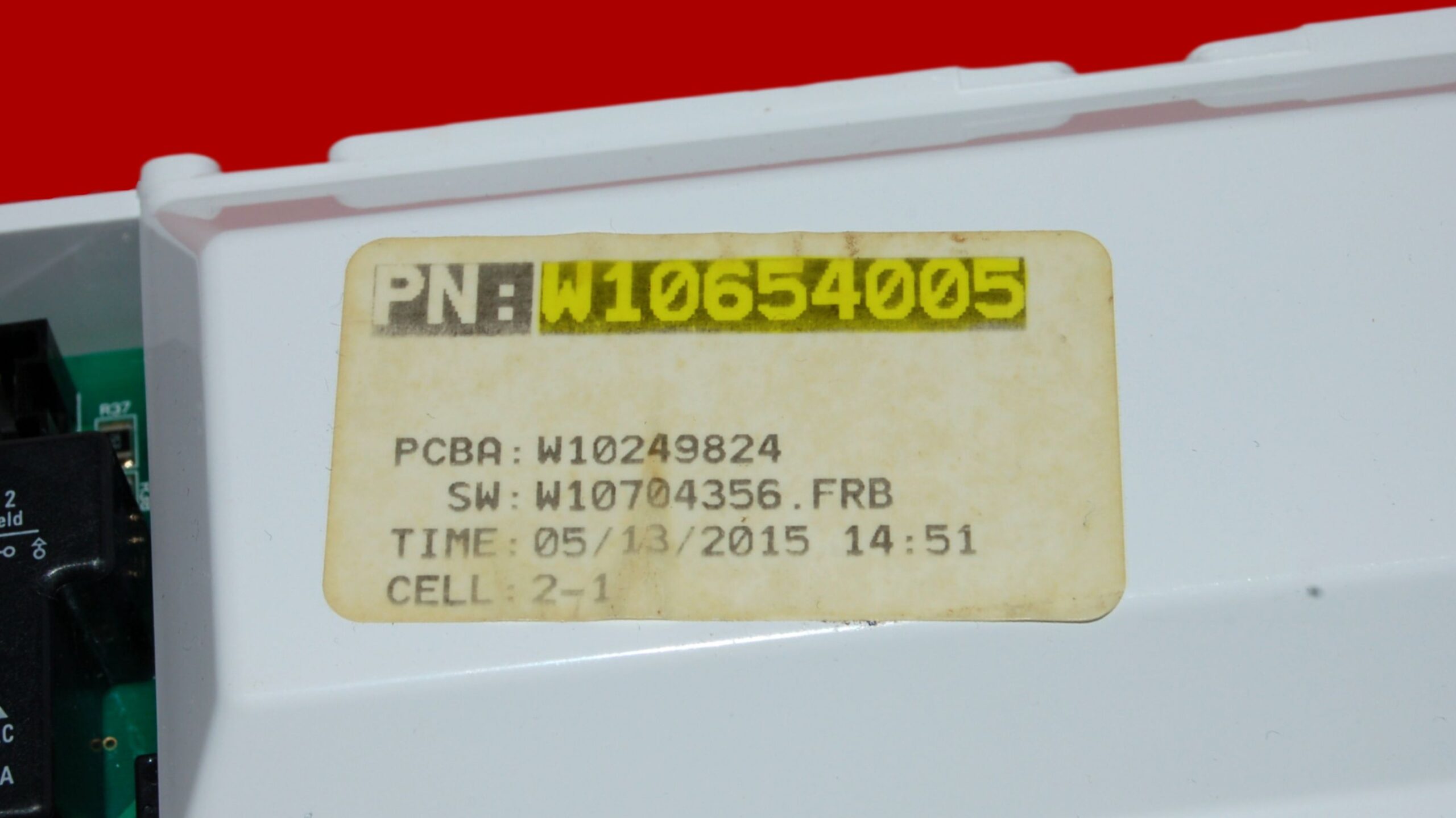

⚠️ Please match the part number on your original control board exactly to W10654005 before ordering.

Many dryer control boards look identical but are NOT interchangeable.
Appliance model numbers alone are not sufficient to guarantee compatibility.

Cross-Reference Part and Model Number Information:

Compatible Control Board Part #: WPW10654005 replaces 3450712, W10654005



Compatible Model Numbers:

7MWED81HEDW0
MED4100DW0
MED7100DC0
MED7100DW0
MED8100DC0
MED8100DW0
WED71HEDW0
WED72HEDW0
WED81HEDW0
WED8740DC0
WED8740DW0
WED87HEDC0
WED87HEDW0
WED95HEDC0
WED95HEDU0
WED95HEDW0
WED97HEDBD0
WED97HEDC0
WED97HEDU0
WED97HEDW0
YMED3100DW0
YMED5100DC0
YMED5100DW0
YMED7100DC0
YMED7100DW0
YMED8100DC0
YMED8100DW0
YWED72HEDW0
YWED81HEDW0
YWED87HEDC0
YWED87HEDW0
YWED95HEDC0
YWED95HEDU0
YWED95HEDW0
YWED97HEDBD0
YWED97HEDC0
YWED97HEDU0
YWED97HEDW0

What’s Included

1 × Dryer Control Board – W10654005
No additional hardware or accessories included.

BEFORE YOU BUY – VERIFY:

☐ Check your appliance’s model number (from the list of compatible Model Numbers provided).

☐ Compare our Part Number EXACTLY to your failed board – must match 100% (removal of your control board is required to find part number sticker).

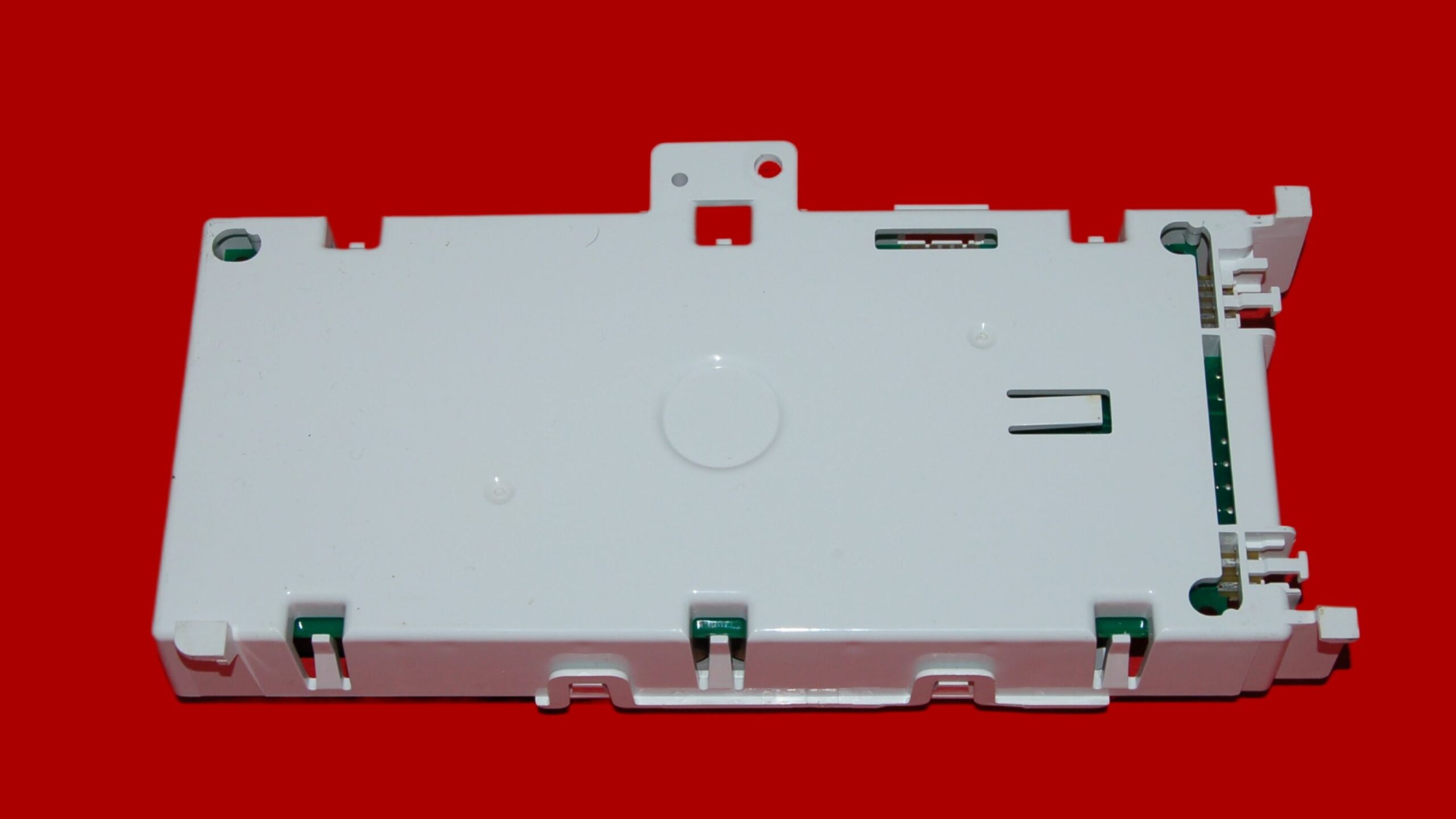

☐ Verify board appearance matches our photos front AND back (wiring ports can differ even when the front looks identical – check both sides).

☐ Not sure? Message us your model # before purchasing – we’ll confirm compatibility.

Shipping Options

Fast and free shipping options are available at checkout.
Priority Mail (Recommended): Orders placed before 2 PM ship the same business day—best choice for time-sensitive repairs and buyers who want the most reliable handling.
Ground Shipping (Free): Ships within 1 business day. Delivery estimates may be similar for nearby locations; however, delivery times are generally longer than Priority Mail.

Warranty And Assurance

6-Month Warranty included for peace of mind.
Specializing in appliance control boards since 2014.
All orders are carefully packaged for safe delivery.
A+ Accredited Business with the BBB.

Model numbers and cross-reference part numbers were obtained from AppliancePartsPros.com.
