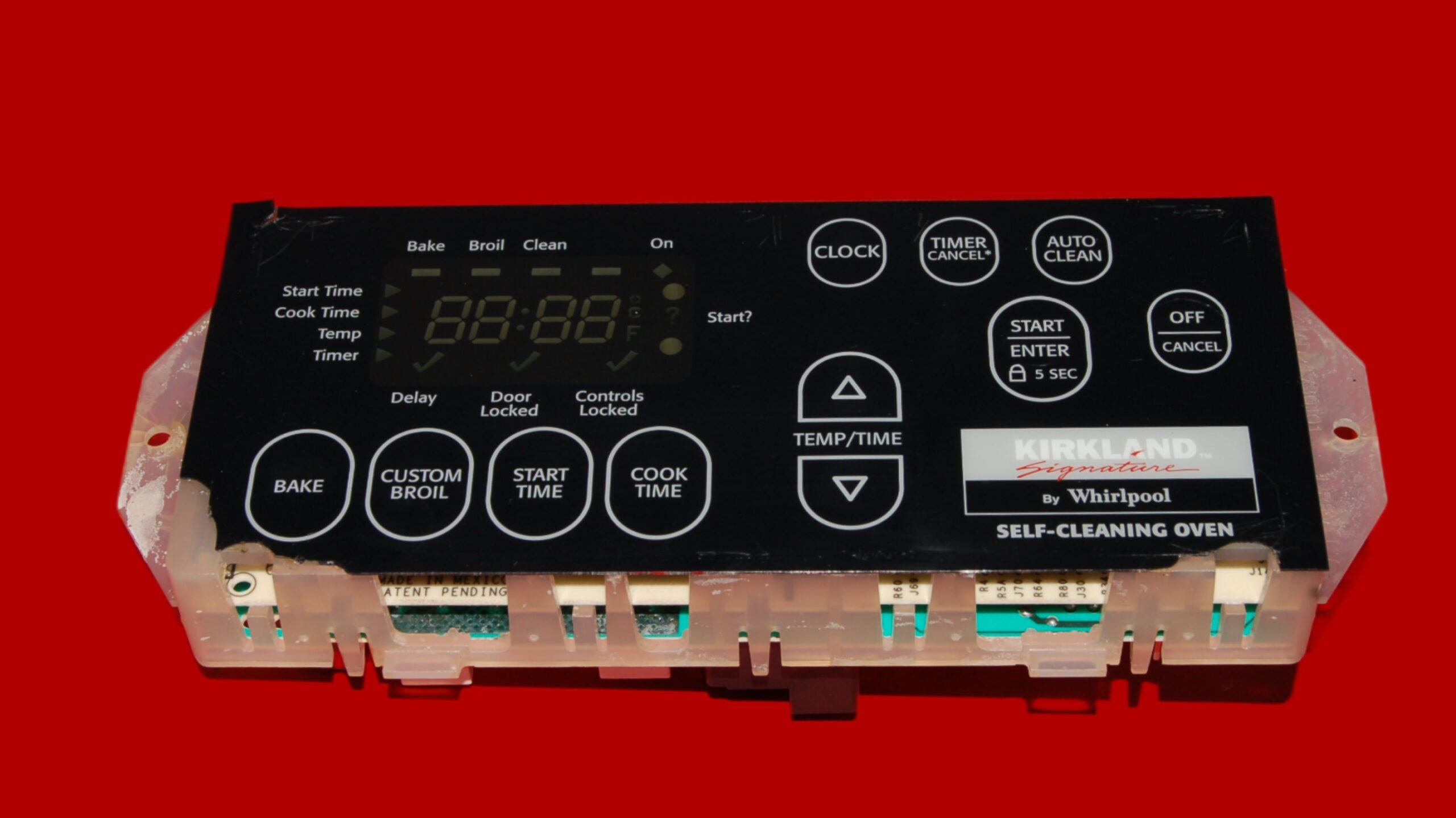

Whirlpool Oven Control Board – Part Number 8524311 | 6610405 (Pre-Owned / Tested)

This is a genuine factory original pre‑owned oven control board, expertly tested, cleaned, and fully inspected to ensure proper operation.
Only units that meet our performance standards are offered for sale.

Item Condition

Pre-Owned / Used.

Condition: Overlay Fair: This item does show noticeable wear; it will have marks, scratches, cracks, small nicks, or dings.
Color: Black
Power: Electric Appliance

Common Reasons for Failure

• Power surges or electrical spikes can damage the oven control circuitry.
• Heat-related stress causes relay or component failure.
• Burned or stuck bake/broil relays are preventing proper heating operation.
• Worn or cracked solder joints from repeated high-temperature cycles.
• Failed internal components affecting temperature regulation or timing.

Common Symptoms This Part May Fix

• Oven not heating or heating inconsistently.
• Oven shutting off unexpectedly or fails to turn on.
• No display or partial display on the control board.
• Unresponsive buttons or keypad inputs (when the keypad is separate).
• Error codes related to temperature or electronic control faults.

(Symptoms vary by model and application)

Important Fitment Information

⚠️ Please match the part number on your original oven control board exactly to 8524311 | 6610405 before ordering.

Many oven control boards look identical but are NOT interchangeable.
Appliance model numbers alone are not sufficient to guarantee compatibility.

Cross-Reference Part and Model Number Information:

Alternate / Compatible Part #: WP6610456 replaces AP6010227, 6610328, 6610456, 1176495, 6610310, 6610310R, 6610313, 6610313R, 6610329, 6610330, 6610384, 6610398, 6610404, 6610405, 6610453, 6610453R, 8522474, 8522477, 8522489, 8522492, 8522971, 8522972, 8522996, 8522997, 8522998, 8522999, 8524276, 8524291, 8524304, 8524310, 8524311, 8524319, 8524325, 8524326, 9760300, 9760303, 9761116, 9761119, PS11743404.

Compatible Model Numbers:

RF365PXMW0
RF365PXMQ0
RF365PXKQ0
RF367LXKQ0
RF365PXMW1
RF367LXKB0
RF368LXPS0
RF365PXKW0
RF368LXKQ1
RF364PXMQ0
RF368LXPQ1
RF364PXPQ1
RF368LXPQ0
RF378LXMB0
RF368LXKQ0
RF367LXKT0
RF368LXMQ0
RF378LXPT0
RF364PXPQ0
RF368LXPS1
RF362BXKQ1
RF369LXPQ0
RF362BXKQ0
RF364PXKQ0
RF364PXPT0
RF365PXMQ1
RF367LXMQ0
RF368LXKB1
RF368LXMS0
RF368LXMT0
RF365PXMT0
RF364PXKQ1
RF198LXMS0
RF365PXMQ2
RF368LXKT0
RF196LXKT0
RF196LXMQ1
RF367LXMB0
RF368LXPB0
RF368LXPT1
RF369LXPB0
RF362BXKW1
RF364LXMT0
RF364PXPT1
RF365PXKT0
RF368LXKT1
RF350BXKW0
RF362BXMT0
RF364LXMQ0
RF364PXKT0
RF364PXKW0
RF368LXPB2
RF369LXPT0
RF369LXPT1
RF378LXMQ0
RF378LXPB0
RF378LXPQ0
RF196LXKB1
RF196LXKQ1
RF362BXKW0
RF364PXPB1
RF364PXPQ2
RF365PXMT3
TES356RD2
RF196LXMQ0
RF196LXMQ3
RF364PXKW1
RF365PXMT1
RF367LXKW0
RF368LXMB0
RF368LXPB1
RF369LXPB1
RF198LXMC0
RF362BXMV0
RF364PXMT0
RF364PXMW0
RF365PXKV0
RF368LXPQ2
RF368LXPT0
RF369LXPB3
RF369LXPQ1
RF370LXPT0
SES380MS0
RF196LXKP0
RF196LXKQ0
RF196LXMQ2
RF362BXKV1
RF362BXMQ0
RF364PXKV0
RF364PXPB0
RF364PXPQ3
RF364PXPT2
RF364PXPW2
RF365PXMW3
RF367LXKV0
RF367LXMT0
RF368LXPQ3
RF368LXPS2
RF378LXPQ2
RF378LXPS0
RF378LXPT2
TES326RD0
TES326RD2
TES356RD1
RF196LXKB0
RF196LXKP1
RF196LXMB1
RF196LXMT0
RF362BXKT0
RF362BXKT1
RF364PXKT1
RF364PXKV1
RF364PXMV0
RF364PXPT3
RF365PXMT2
RF365PXMV0
RF365PXMW2
RF368LXKP0
RF368LXKS1
RF368LXKW0
RF368LXPS3
RF368LXPT2
RF370LXPQ1
RF370LXPT2
RF378LXMS0
RF378LXMT0
RF378LXPQ3
TES356RD0
FES326RD0
FES355TB1
FES355TQ1
FES356RD0
FES356RD1
FES356RD2
FES356RD3
FES356RD4
IES356RD0
IES356RD1
IES356RD2
RF196LXKT1
RF196LXMB0
RF196LXMB2
RF196LXMB3
RF196LXMB4
RF196LXMQ4
RF196LXMS4
RF196LXMT1
RF196LXMT2
RF196LXMT3
RF196LXMT4

What’s Included

1 × Oven Electronic Control Board – 8524311 | 6610405
No additional hardware or accessories included.

BEFORE YOU BUY – VERIFY:

☐ Check your appliance’s model number (from the list of compatible Model Numbers provided).

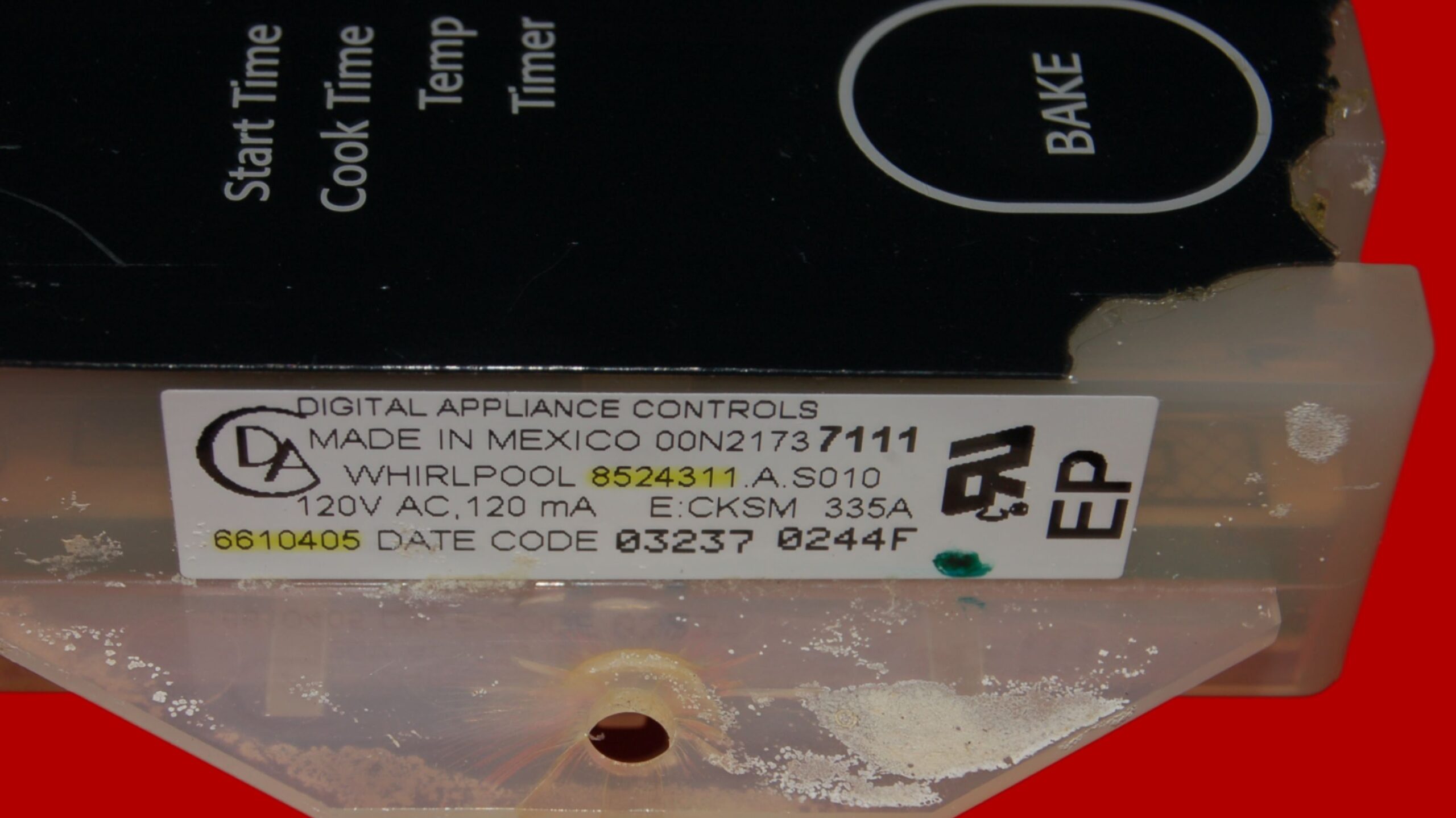

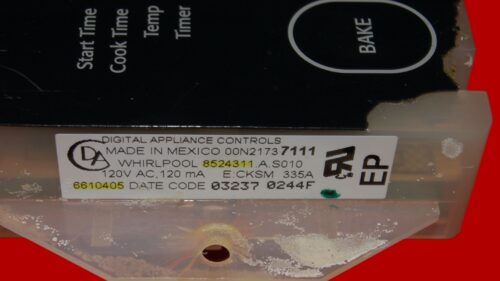

☐ Compare our Part Number EXACTLY to your failed board – must match 100% (removal of your control board is required to find part number sticker).

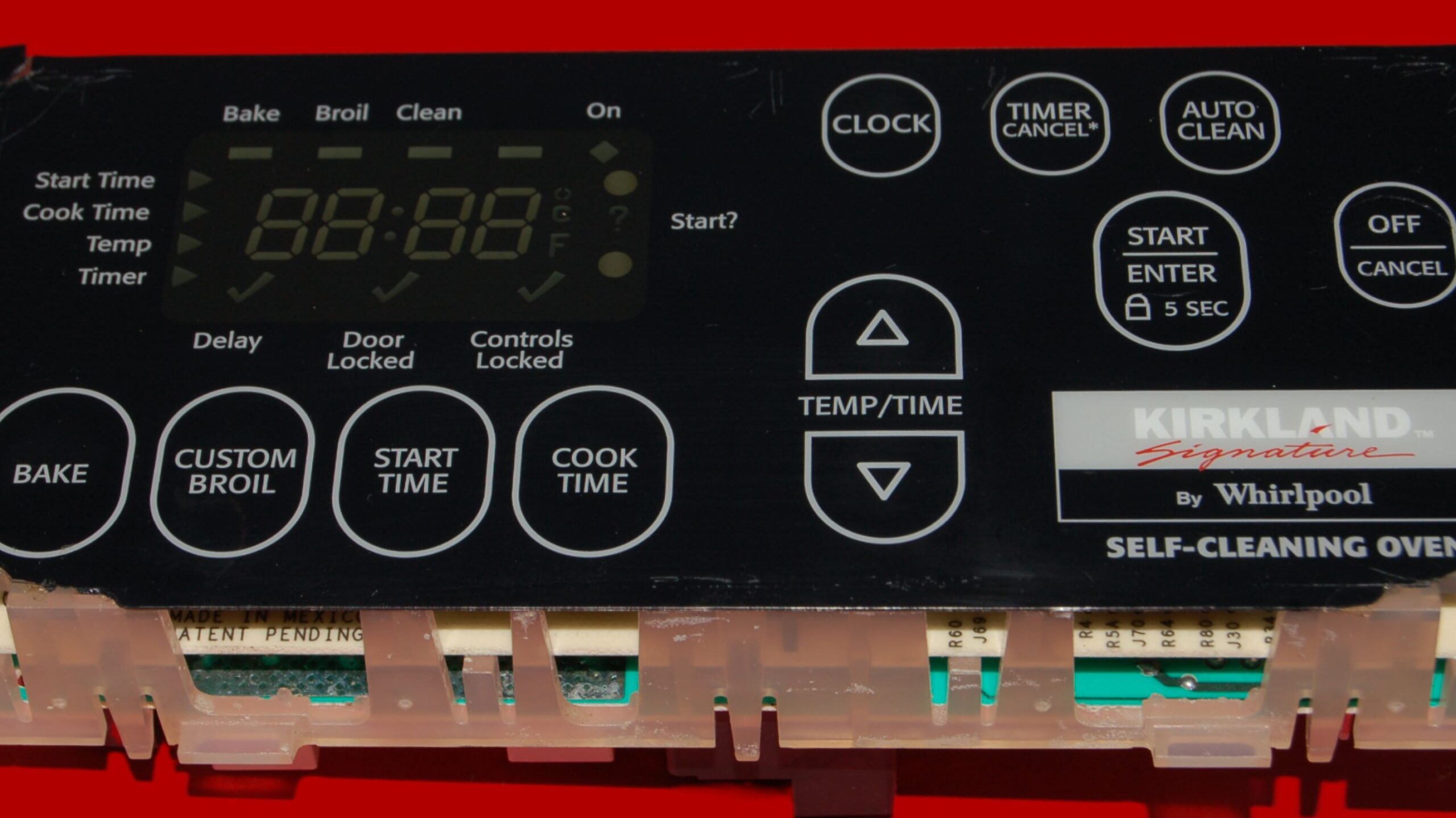

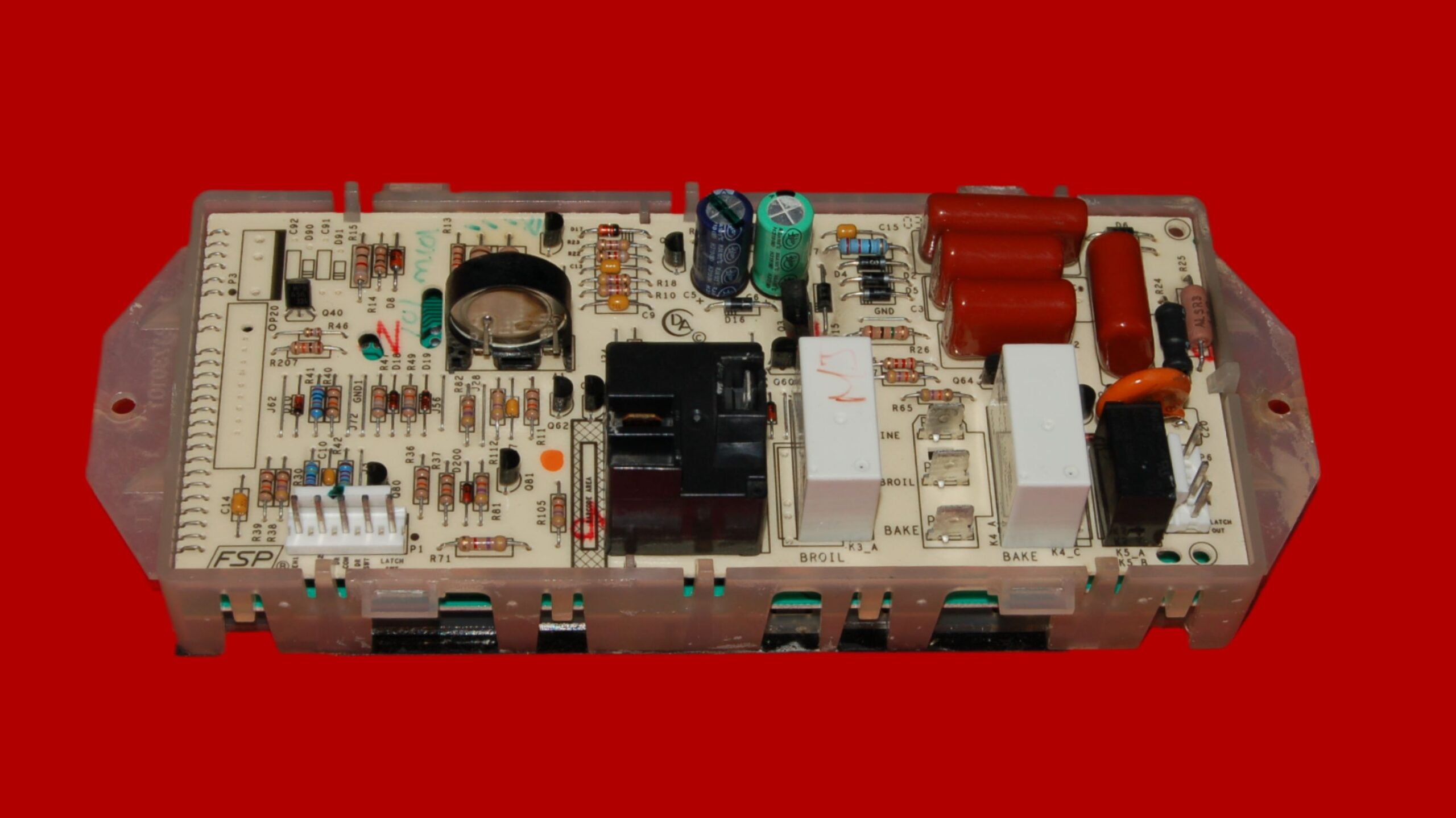

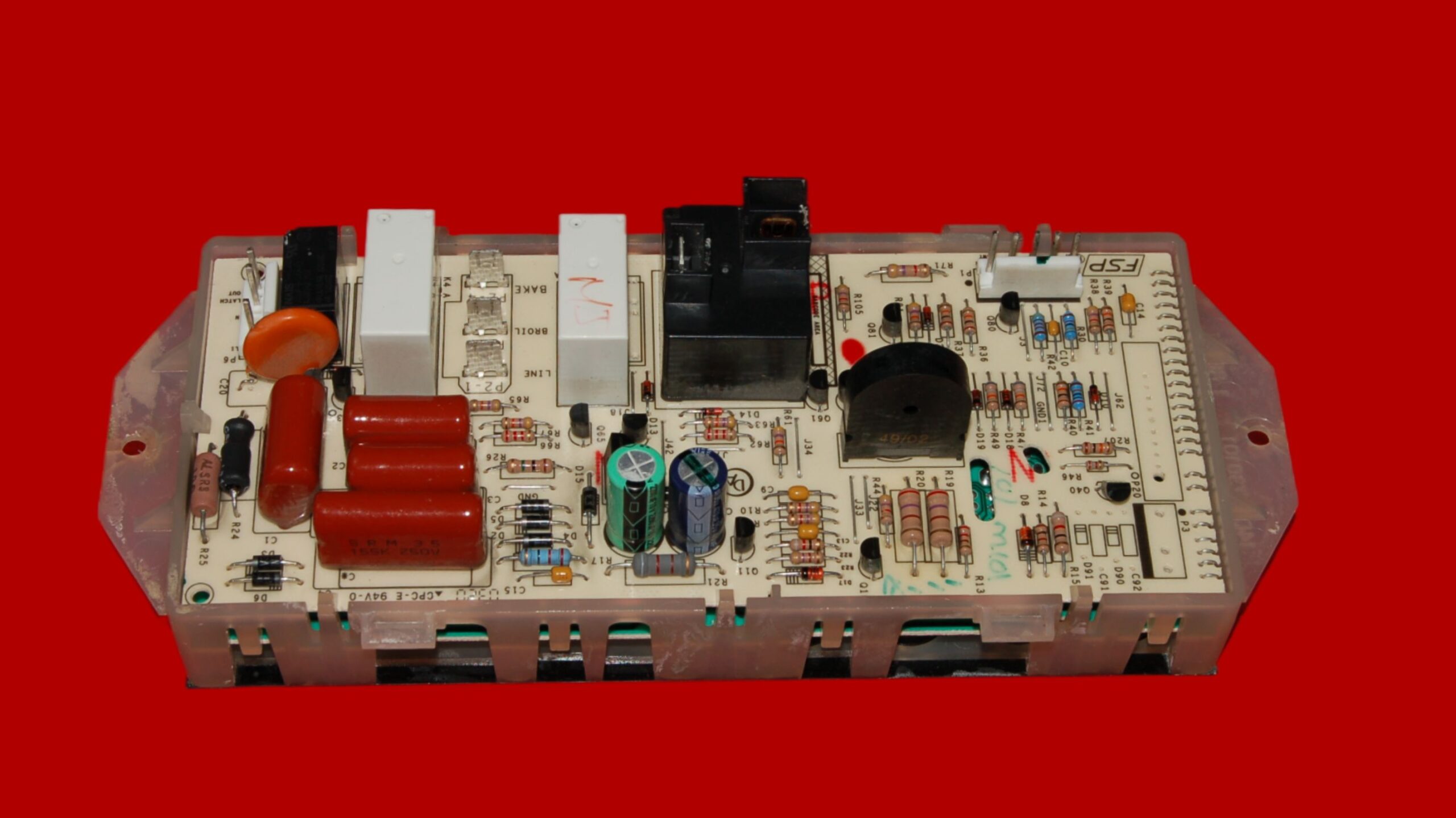

☐ Verify board appearance matches our photos front AND back (wiring ports can differ even when the front looks identical – check both sides).

☐ Not sure? Message us your model # before purchasing – we’ll confirm compatibility.

Shipping Options

Fast and free shipping options are available at checkout.

Warranty And Assurance

6-Month Warranty included for peace of mind.
Specializing in appliance control boards since 2014.
All orders are carefully packaged for safe delivery.
A+ Accredited Business with the BBB.
