Whirlpool Gas Oven Control Board W11204525 | W11317846 | OEM Used Tested (overlay fair – Black)
$149.00

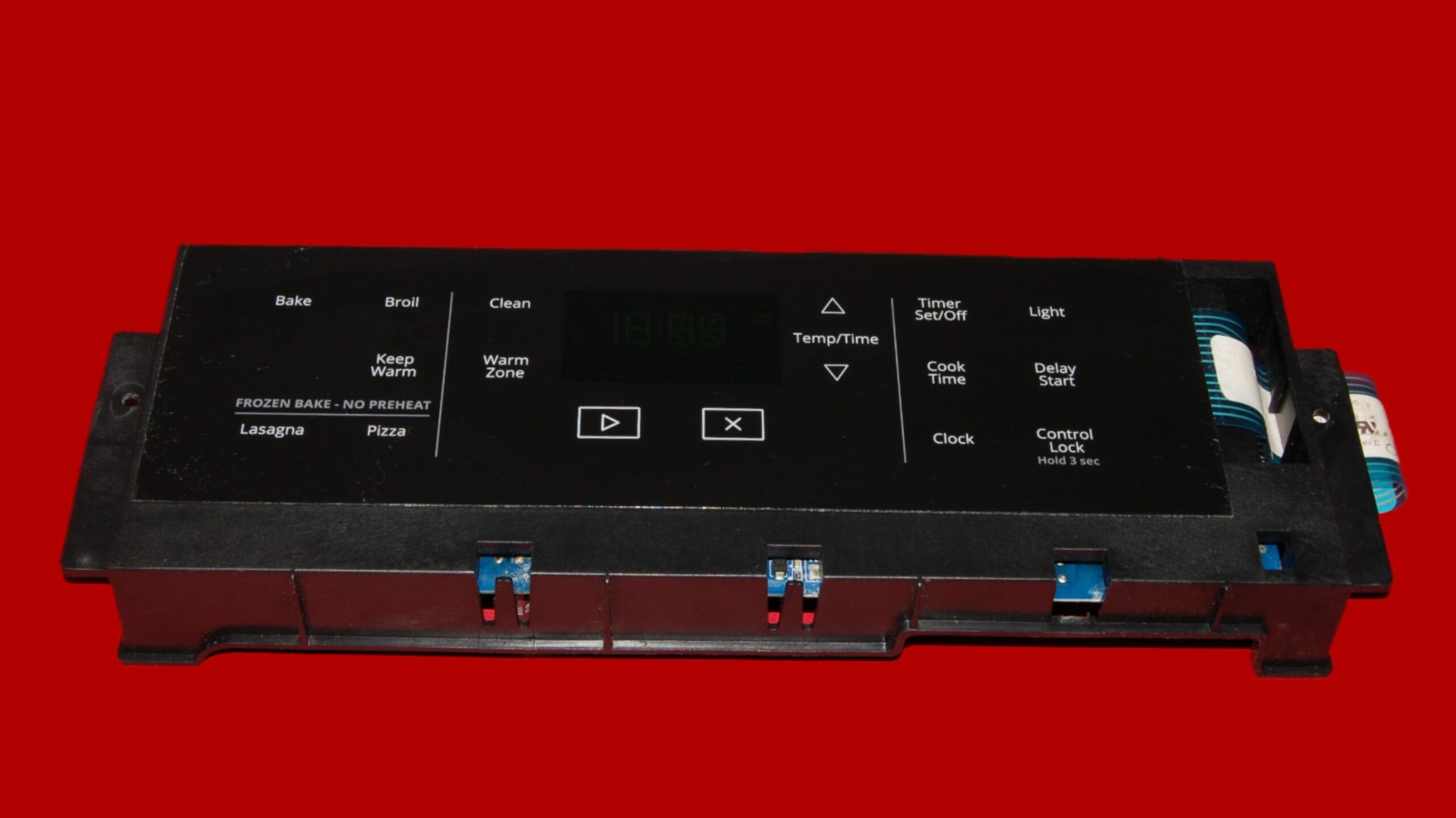

Whirlpool Oven Control Board – Part Number W11204525 | W11317846 (Pre-Owned / Tested)
This is a genuine factory original pre‑owned oven control board, expertly tested, cleaned, and fully inspected to ensure proper operation.
Only units that meet our performance standards are offered for sale.
Cross-Reference Part and Model Number Information:
Alternate / Compatible Part #: W11159621 (AP6285025) replaces W11317846, W11038146, W11204525
Compatible Model Numbers:
WFG525S0HV1
WFG510S0HS1
WFG525S0HZ1
WFG525S0HD0
WFG525S0JS2
WFG510S0HW1
WFG525S0JW2
WFG525S0JW1
WFG525S0JV0
WFG525S0JB2
WFG510S0HW1
WFG525S0HW1
WFG525S0JZ1
WFG525S0HB0
WFG525S0JZ0
WFG525S0HT1
WFG525S0HS0
WFG525S0JZ2
WFG525S0HV0
WFG525S0JS1
WFG525S0JW0
WFG525S0HT0
WFG525S0JV1
WFG510S0HB1
WFG525S0HB1
WFG510S0HS0
WFG525S0JB1
WFG510S0HS0
WFG525S0HW0
WFG525S0JS0
WFG525S0JB0
WFG525S0HS1
WFG525S0HZ1
WFG510S0HB0
Item Condition
Pre-Owned / Used.
Condition: Overlay Fair: This item does show noticeable wear; it will have marks, scratches, cracks, small nicks, or dings.
Color: Black
Power: Gas Appliance
Important Fitment Information
⚠️ Match the part number on your original oven control board exactly to W11204525 | W11317846 before ordering — many oven control boards look identical but are NOT interchangeable, and model numbers alone don’t guarantee compatibility.
What’s Included
1 × Oven Electronic Control Board – W11204525 | W11317846
No additional hardware or accessories included.
Common Reasons for Failure
- Power surges or electrical spikes can damage the oven control circuitry.
- Heat-related stress causes relay or component failure.
- Burned or stuck bake/broil relays are preventing proper heating operation.
- Worn or cracked solder joints from repeated high-temperature cycles.
- Failed internal components affecting temperature regulation or timing.
Common Symptoms This Part May Fix
- Oven not heating or heating inconsistently.
- Oven shutting off unexpectedly or fails to turn on.
- No display or partial display on the control board.
- Unresponsive buttons or keypad inputs (when the keypad is separate).
- Error codes related to temperature or electronic control faults.
(Symptoms vary by model and application)
BEFORE YOU BUY – VERIFY:
- Check your appliance’s model number – from the list of compatible Model Numbers provided.

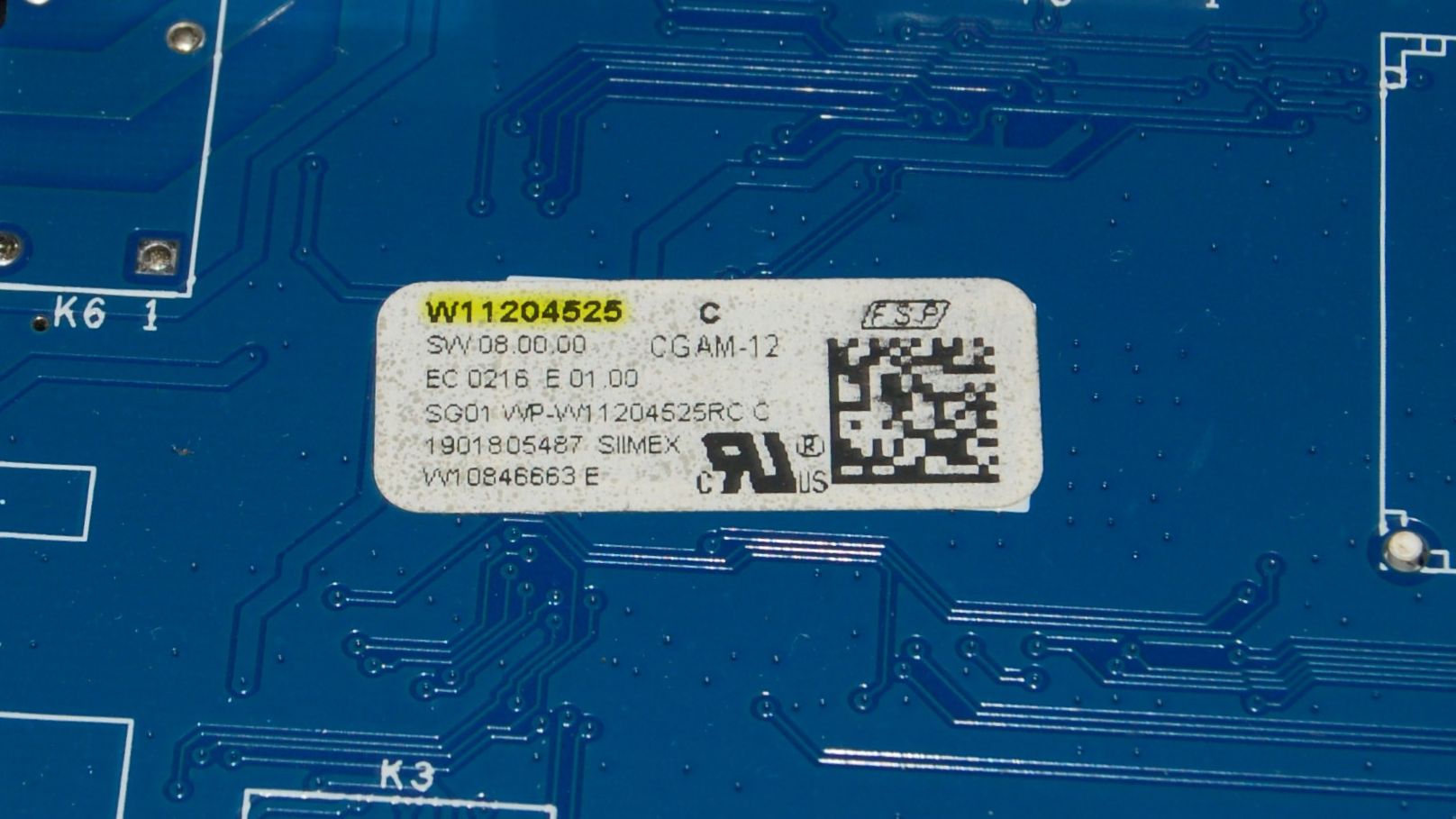

- Compare our Part Number EXACTLY to your failed board – must match 100% – removal of your control board is required to find part number sticker.

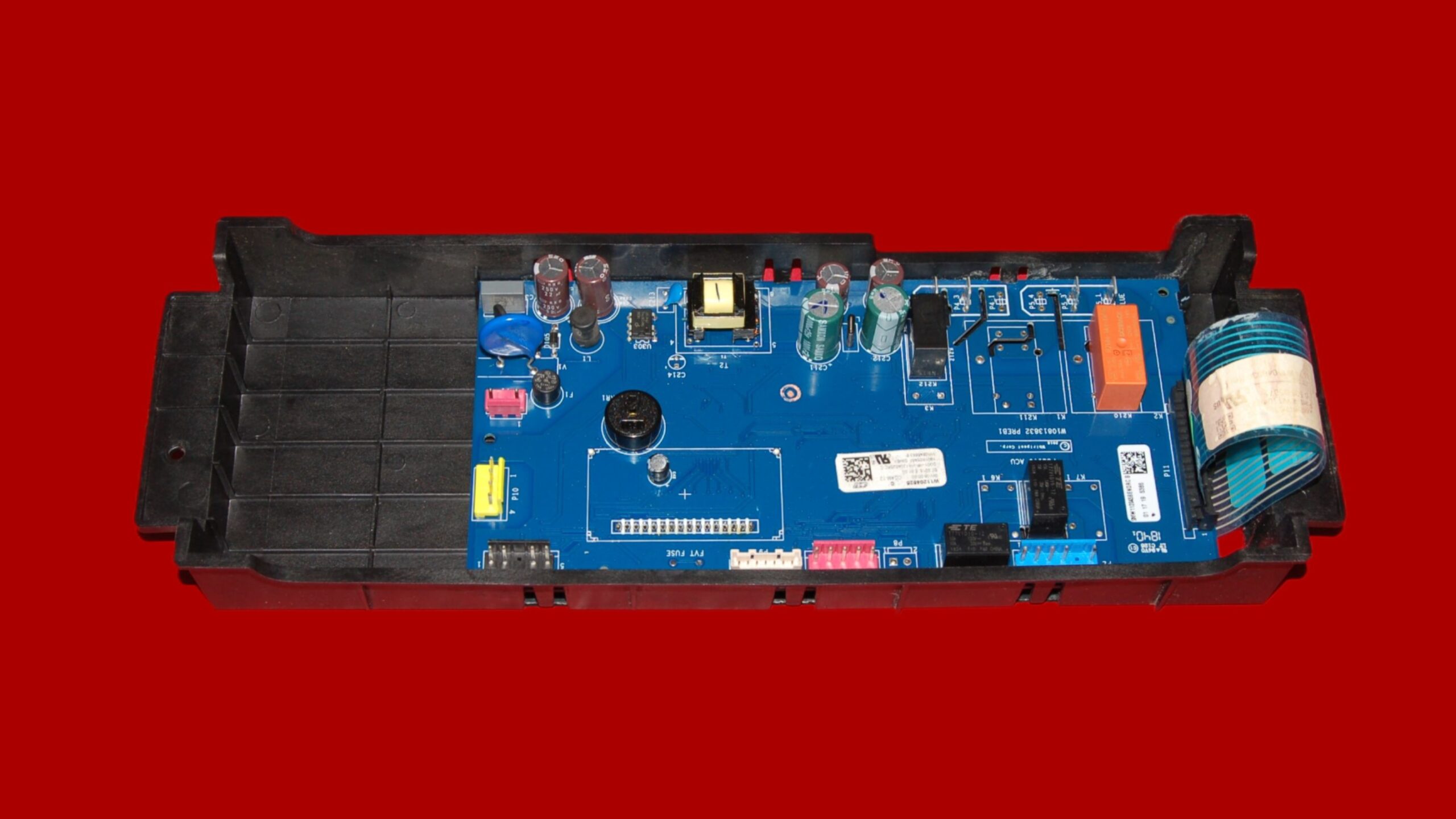

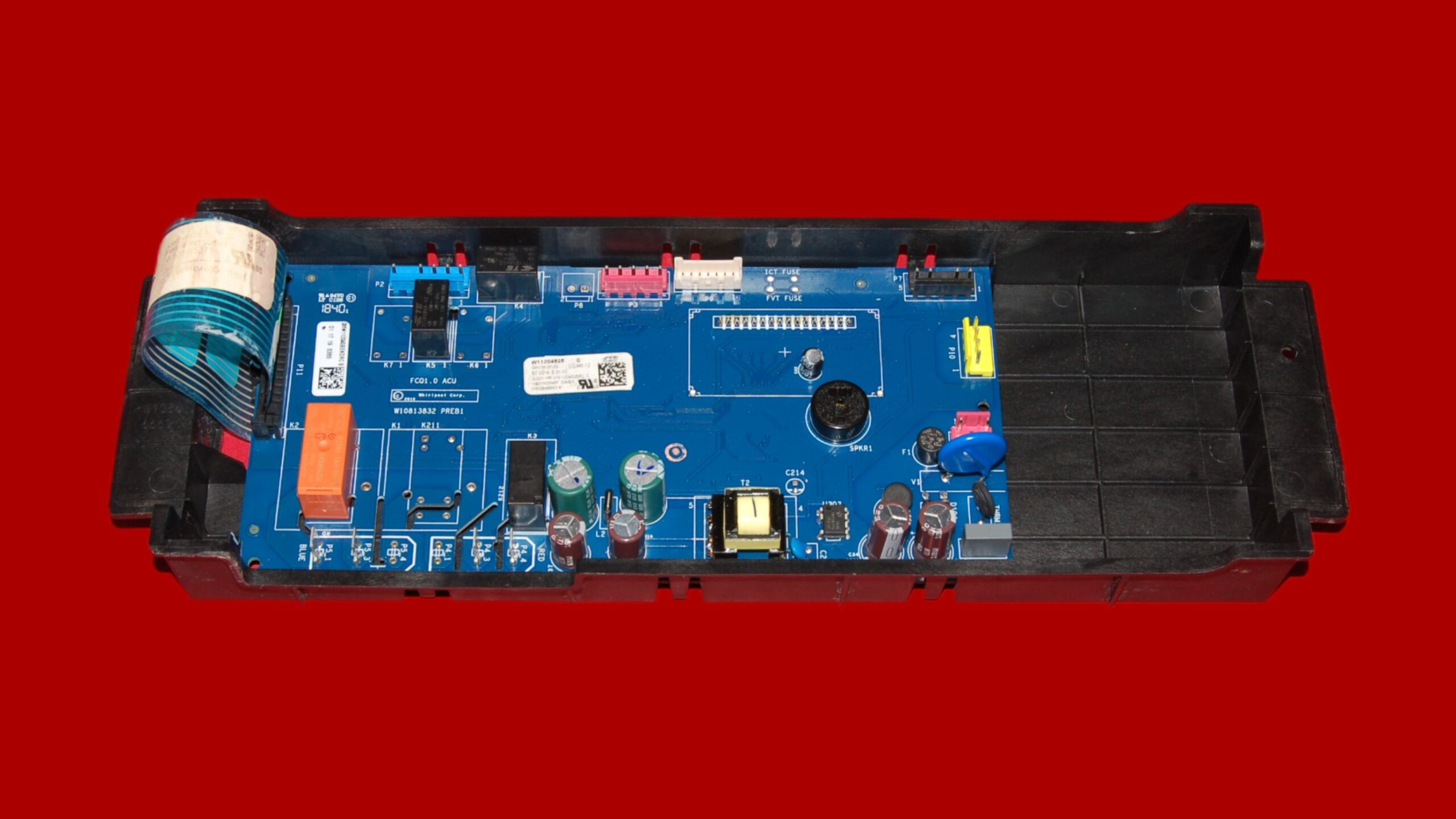

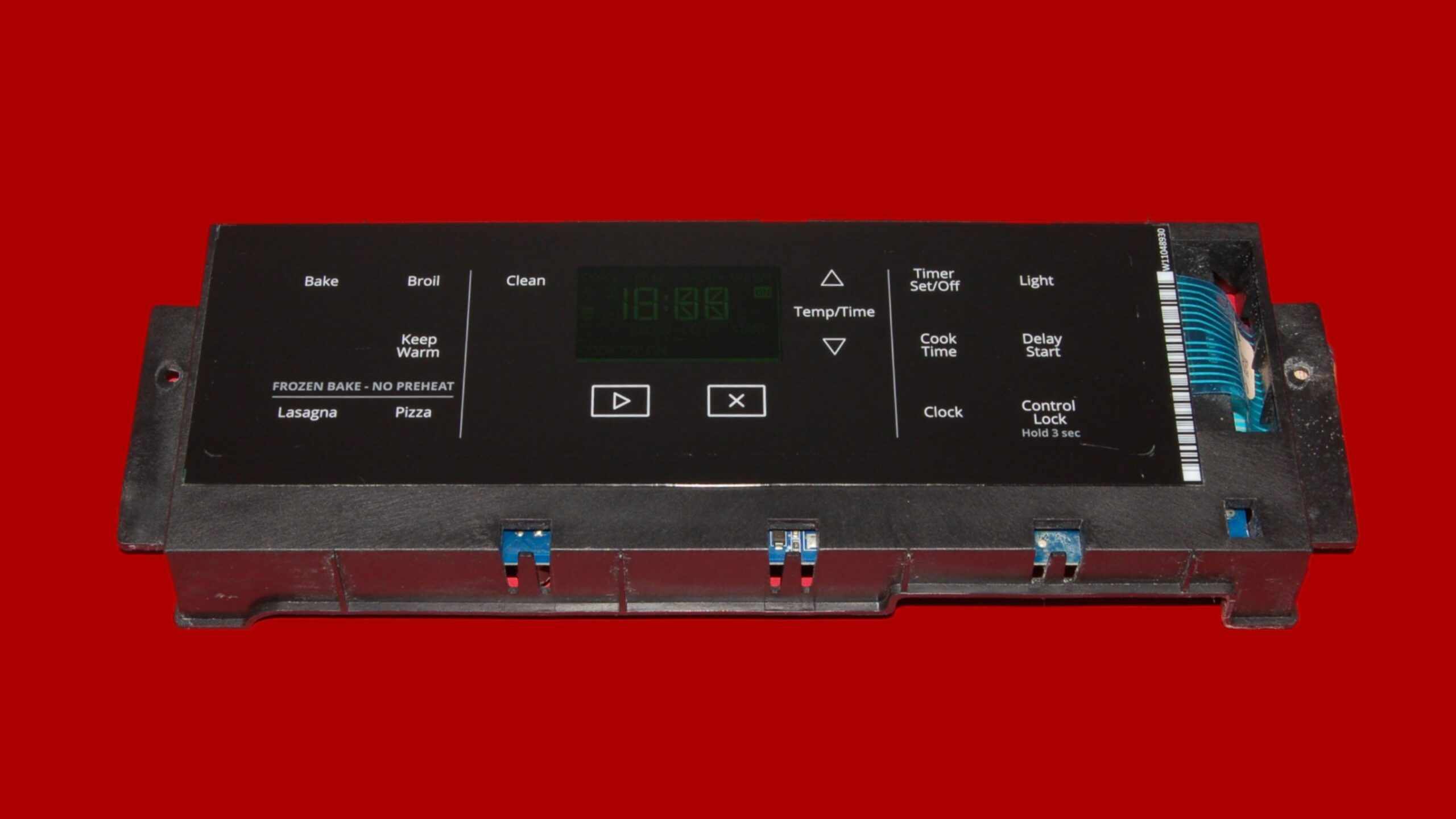

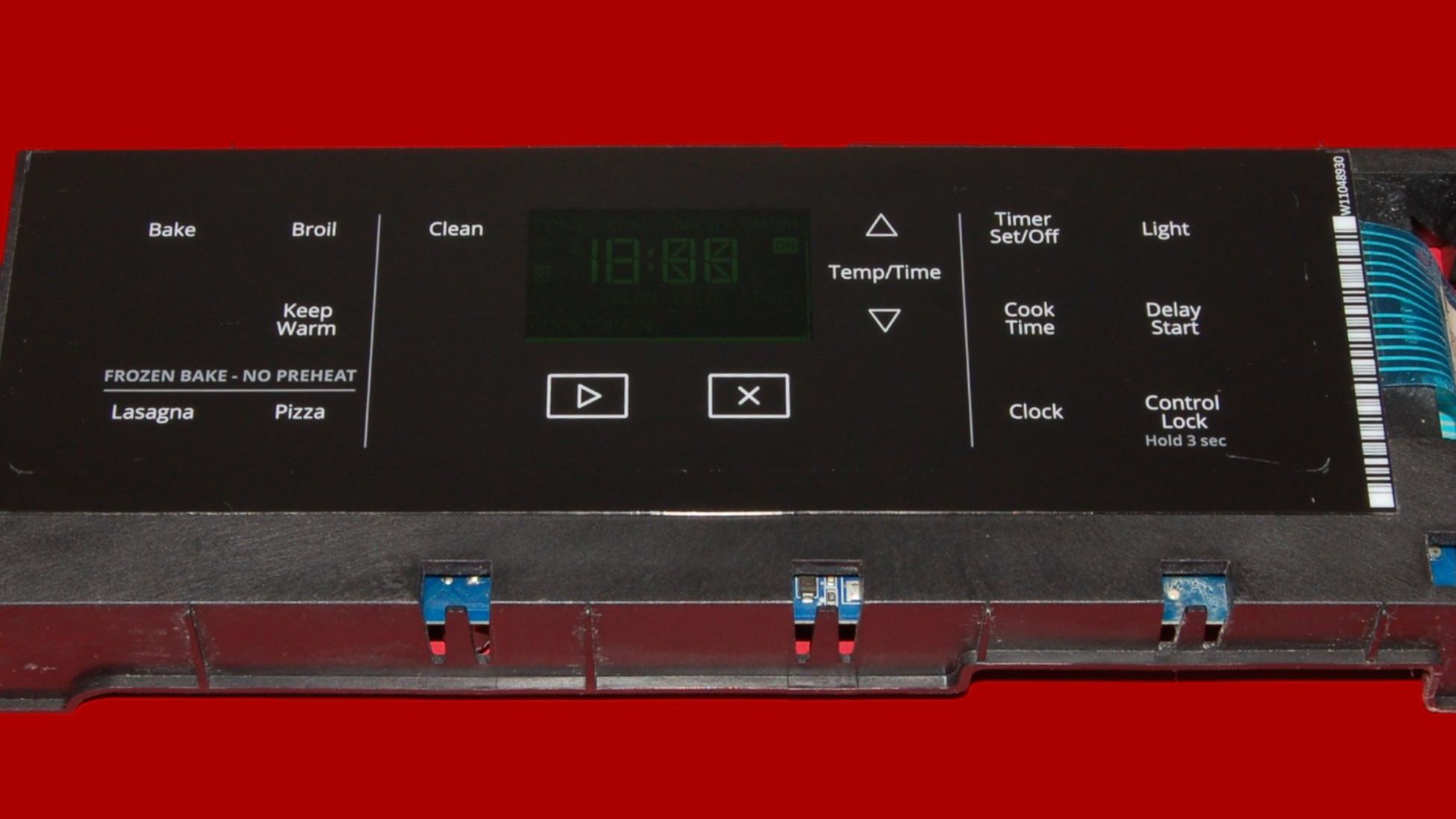

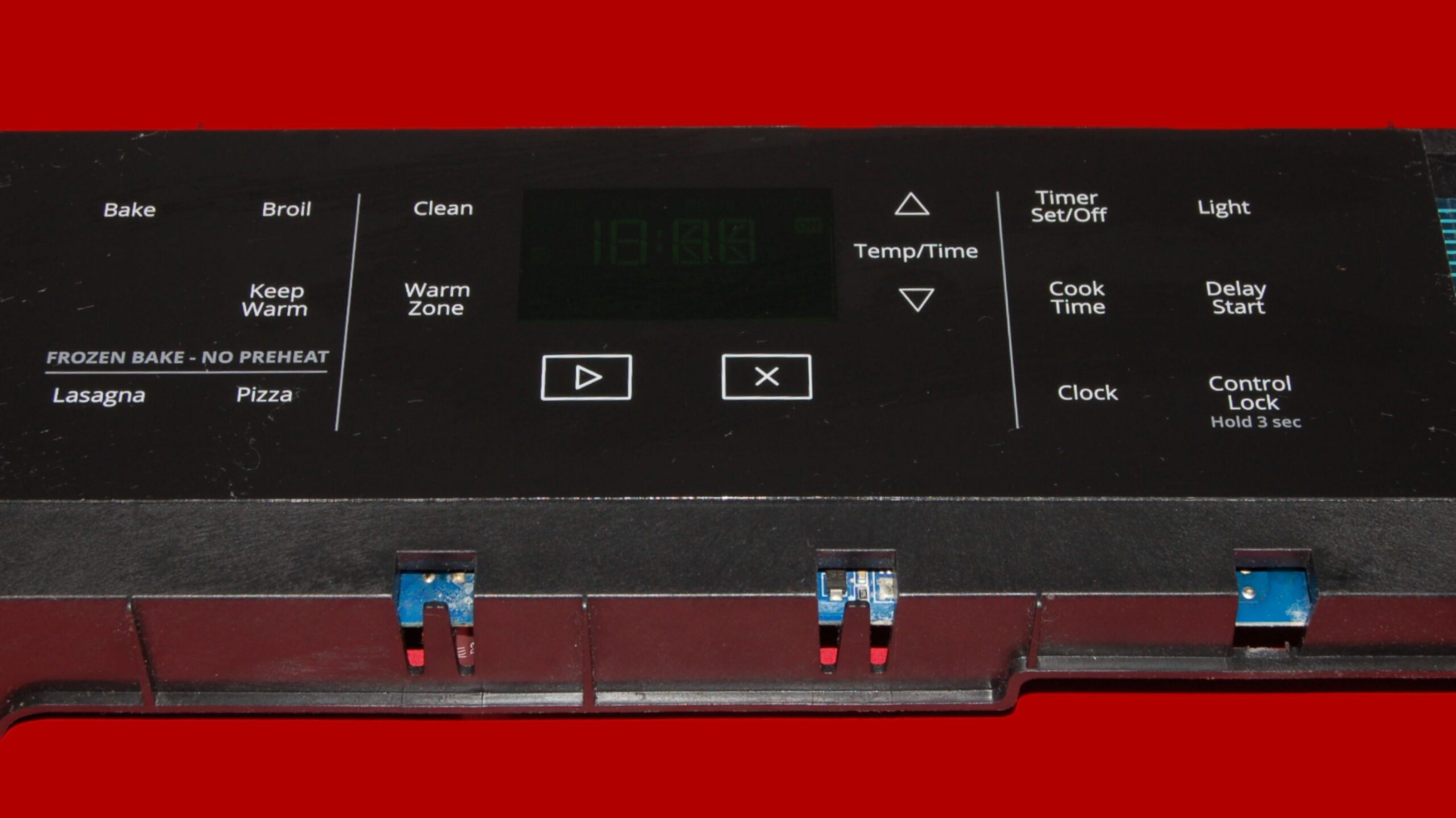

- Verify board appearance matches our photos front AND back – wiring ports can differ even when the front looks identical – check both sides.
- Not sure? Message us your model # before purchasing – we’ll confirm compatibility.
Shipping Options
Fast and free shipping options are available at checkout.
Warranty And Assurance
6-Month Warranty included for peace of mind.
Specializing in appliance control boards since 2014.
All orders are carefully packaged for safe delivery.
A+ Accredited Business with the BBB.
Shop with Confidence. All of our pre-owned appliance electronic control boards have been tested, cleaned, and are guaranteed to work. Every part comes with our standard 6-month warranty.
Model numbers and cross-reference part numbers were obtained from AppliancePartsPros.com.
