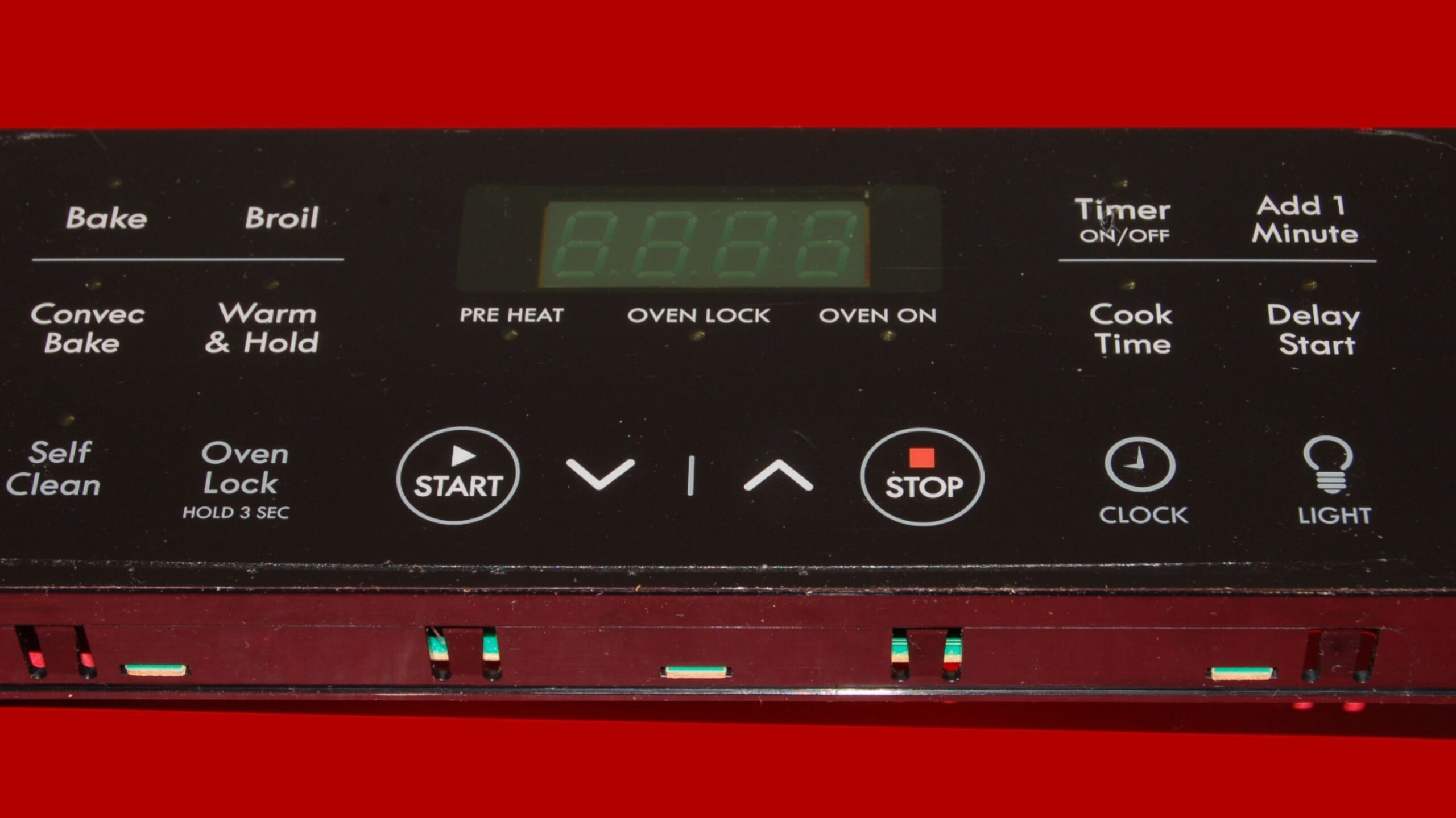

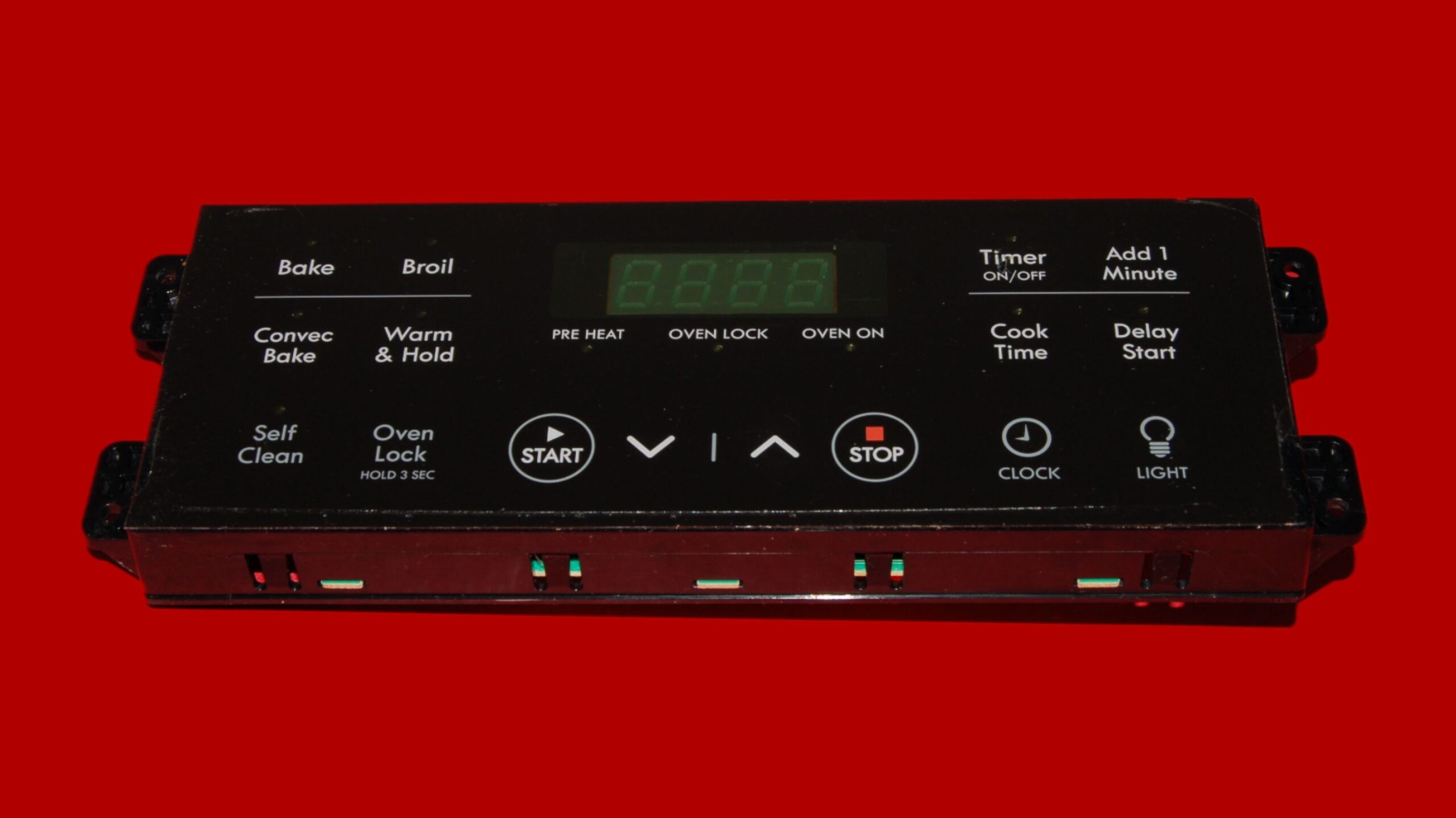

Frigidaire Oven Control Board 316630003 | OEM Used Tested (overlay fair – Black)
$109.00
Frigidaire, Kenmore Oven Control Board – Part Number 316630003 (Pre-Owned / Tested)
This is a genuine factory original pre‑owned oven control board, expertly tested, cleaned, and fully inspected to ensure proper operation.
Only units that meet our performance standards are offered for sale.
Cross-Reference Part and Model Number Information:
Alternate / Compatible Part #: 316630003 replaces 3016954, AP5788415, EAP8746794, PS8746794, SF5390-S00003-E, AFR16452, PD00027678.
Compatible Model Numbers:
790.96182711
790.96183712
KF204KDW1
KF214KDW0
790.96184712
790.92573810
KF204KDD0
KF214KDD1
790.96189714
790.96182714
790.94199313
790.94192313
GF504KXD1
GF504KXD1
790.94192314
790.94159310
790.94159312
790.96189710
790.96183715
GF204KXW0
790.94193312
KF214KDW1
790.96182710
790.96183710
790.96182715
KF204KDD1
790.94199310
790.94192315
790.94199315
790.94193314
790.94153312
KF204KDW1
KF214KDD1
KF204KDW0
790.94153310
790.96184711
GF504KXW0
790.96182712
790.96197711
790.94193313
GF204KXW0
790.96189711
790.94152311
KF204KDD1
790.96189713
790.94192311
790.96197710
790.96189715
790.94193315
790.94159311
790.94152312
790.96183711
790.94199311
790.94153311
790.94193317
790.94192316
790.94199314
KF214KDW0
KF214KDD0
790.94152310
790.94193316
790.94199312
790.94192317
790.94053310
790.96182713
790.96189712
KF204KDW0
790.96184710
790.94192312
GF204KXD0
790.96183713
790.96183714
790.94193311
KF214KDW1
790.96197712
Item Condition
Pre-Owned / Used.
Condition: Overlay Fair: This item does show noticeable wear; it will have marks, scratches, cracks, small nicks, or dings.
Color: Black
Power: Electric Appliance
Important Fitment Information
⚠️ Match the part number on your original oven control board exactly to 316630003 before ordering — many oven control boards look identical but are NOT interchangeable, and model numbers alone don’t guarantee compatibility.
What’s Included
1 × Oven Electronic Control Board – 316630003
No additional hardware or accessories included.
Common Reasons for Failure
- Power surges or electrical spikes can damage the oven control circuitry.
- Heat-related stress causes relay or component failure.
- Burned or stuck bake/broil relays are preventing proper heating operation.
- Worn or cracked solder joints from repeated high-temperature cycles.
- Failed internal components affecting temperature regulation or timing.
Common Symptoms This Part May Fix
- Oven not heating or heating inconsistently.
- Oven shutting off unexpectedly or fails to turn on.
- No display or partial display on the control board.
- Unresponsive buttons or keypad inputs (when the keypad is separate).
- Error codes related to temperature or electronic control faults.
(Symptoms vary by model and application)
BEFORE YOU BUY – VERIFY:
- Check your appliance’s model number – from the list of compatible Model Numbers provided.
- Compare our Part Number EXACTLY to your failed board – must match 100% – removal of your control board is required to find part number sticker.
- Verify board appearance matches our photos front AND back – wiring ports can differ even when the front looks identical – check both sides.
- Not sure? Message us your model # before purchasing – we’ll confirm compatibility.
Shipping Options
Fast and free shipping options are available at checkout.
Warranty And Assurance
6-Month Warranty included for peace of mind.
Specializing in appliance control boards since 2014.
All orders are carefully packaged for safe delivery.
A+ Accredited Business with the BBB.
