Kenmore Oven Control Board 316560127 | OEM Used Tested (overlay fair – Black)
$109.00
Kenmore Oven Control Board – Part Number 316560127 (Pre-Owned / Tested)
This is a genuine factory original pre‑owned oven control board, expertly tested, cleaned, and fully inspected to ensure proper operation.
Only units that meet our performance standards are offered for sale.
Item Condition
Pre-Owned / Used.

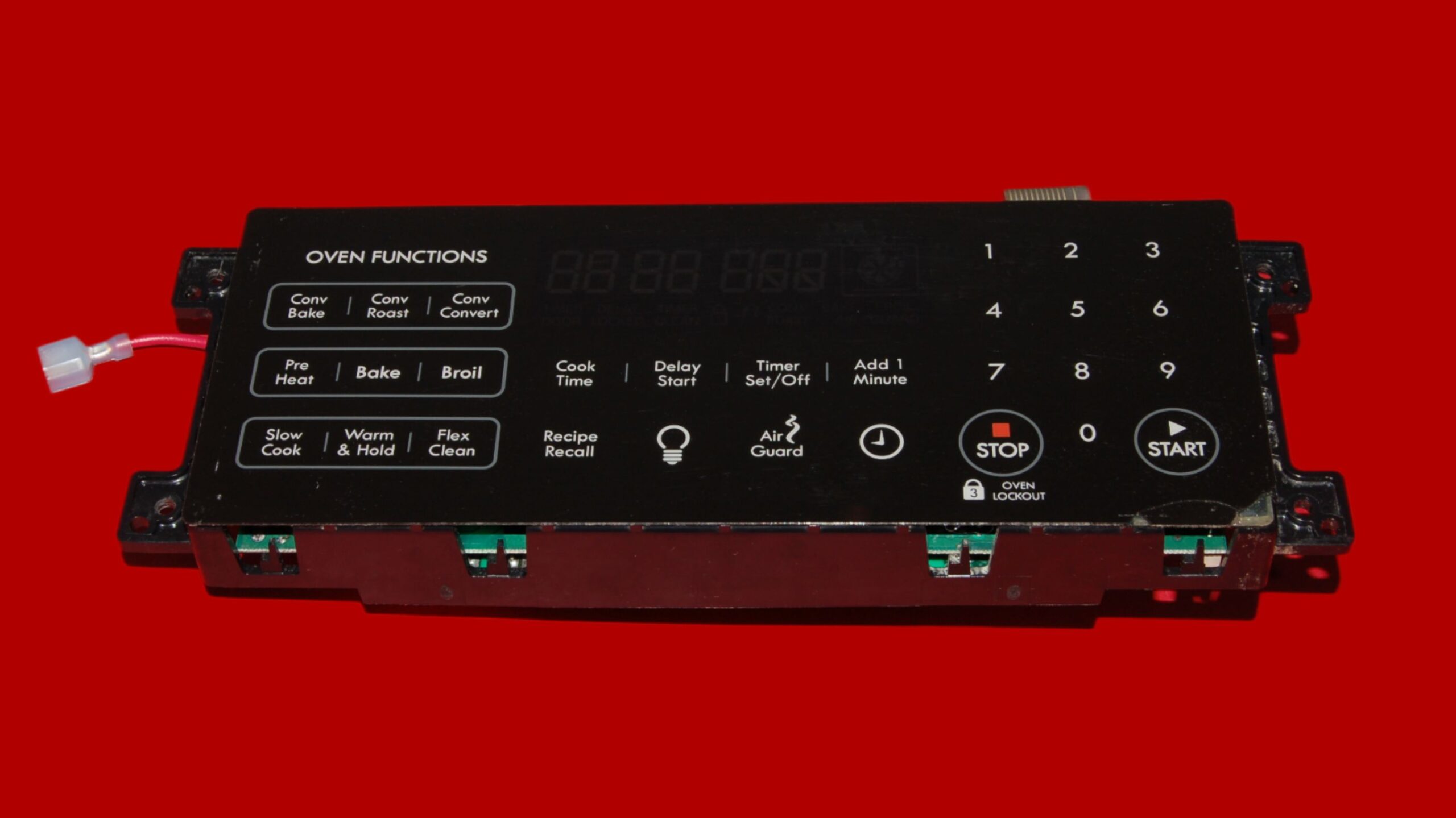

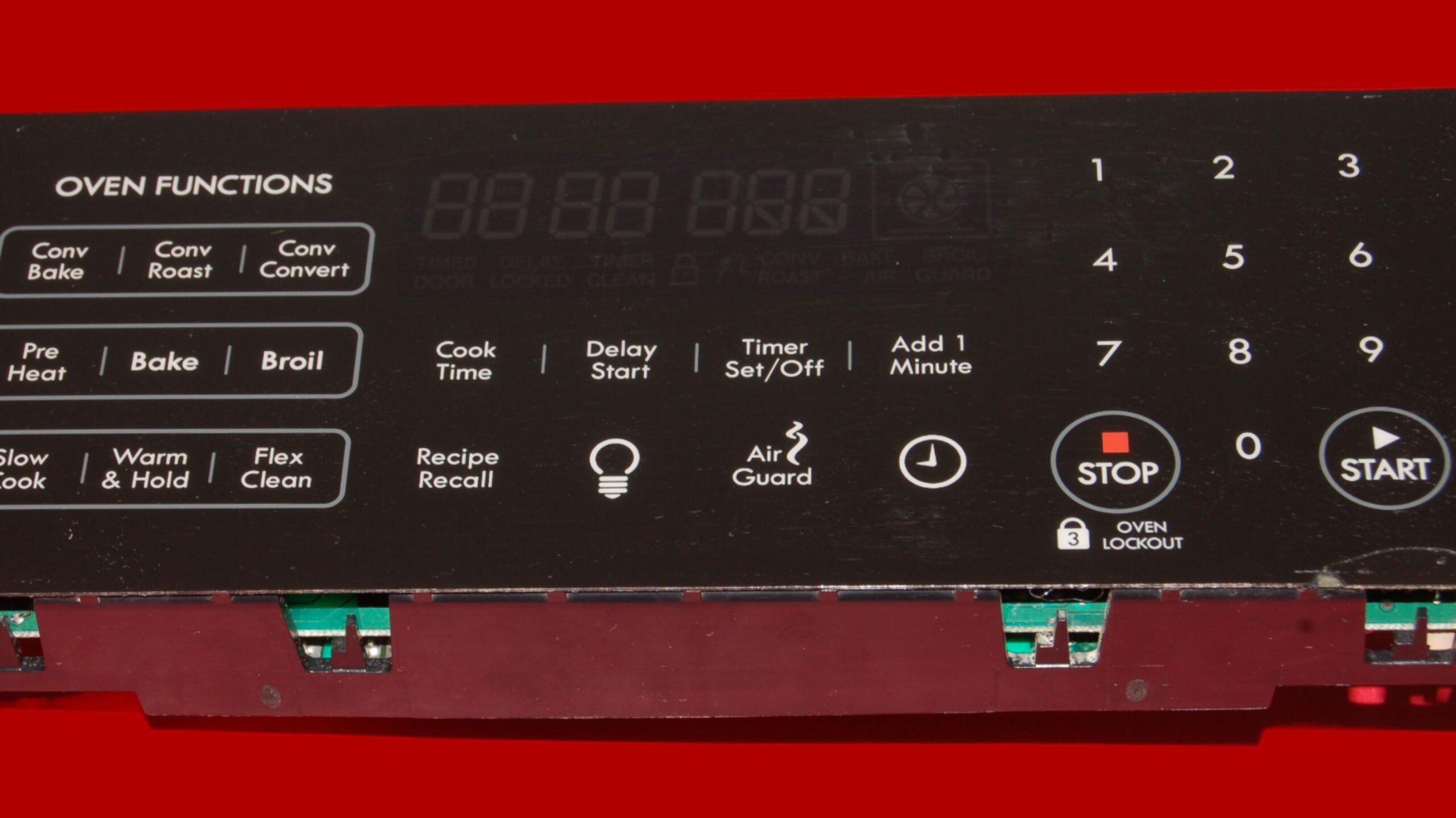

Condition: Overlay Fair: This item does show noticeable wear; it will have marks, scratches, cracks, small nicks, or dings.
Color: Black
Power: Electric Appliance
Common Reasons for Failure
- Power surges or electrical spikes can damage the oven control circuitry.
- Heat-related stress causes relay or component failure.
- Burned or stuck bake/broil relays are preventing proper heating operation.
- Worn or cracked solder joints from repeated high-temperature cycles.
- Failed internal components affecting temperature regulation or timing.
Common Symptoms This Part May Fix
- Oven not heating or heating inconsistently.
- Oven shutting off unexpectedly or fails to turn on.
- No display or partial display on the control board.
- Unresponsive buttons or keypad inputs (when the keypad is separate).
- Error codes related to temperature or electronic control faults.
(Symptoms vary by model and application)
Important Fitment Information
⚠️ Please match the part number on your original oven control board exactly to 316560127 before ordering.
Many oven control boards look identical but are NOT interchangeable.
Appliance model numbers alone are not sufficient to guarantee compatibility.
Cross-Reference Part and Model Number Information:
Alternate / Compatible Part #: 316560127 replaces AP5325528, 2026245, AH3504421, EA3504421, PS3504421
Compatible Model Numbers:
790.92802013
790.92802014
790.92802015
790.92803014
790.92803015
790.92803016
790.92804013
790.92804014
790.92809013
790.92809014
790.92809015
790.92902013
790.92902014
790.92902015 790.92903014
790.92903015
790.92903016
790.92909013
790.92909014
790.92909015
What’s Included
1 × Oven Electronic Control Board – 316560127
No additional hardware or accessories included.
BEFORE YOU BUY – VERIFY:
☐ Check your appliance’s model number (from the list of compatible Model Numbers provided).

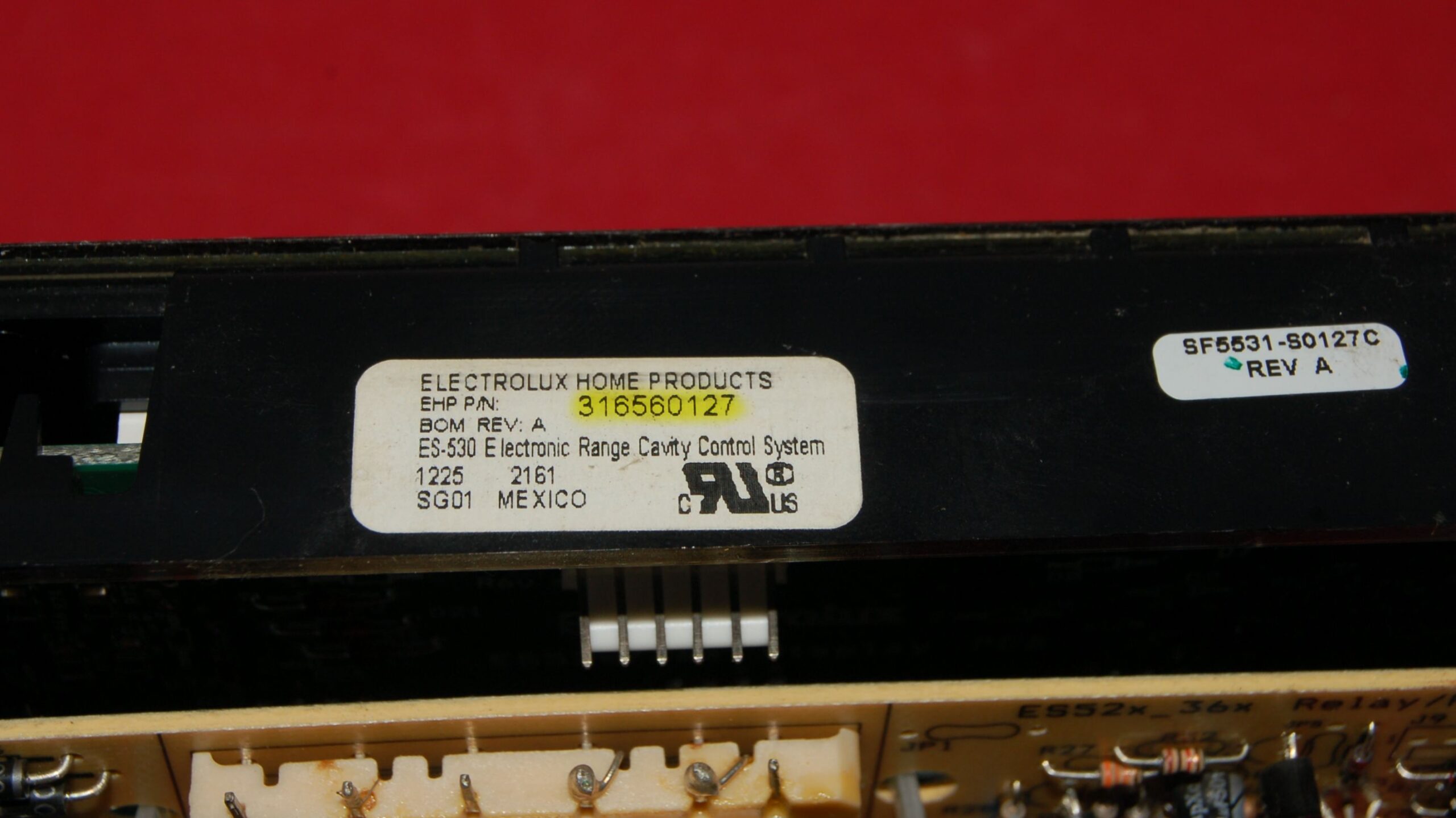

☐ Compare our Part Number EXACTLY to your failed board – must match 100% (removal of your control board is required to find part number sticker).

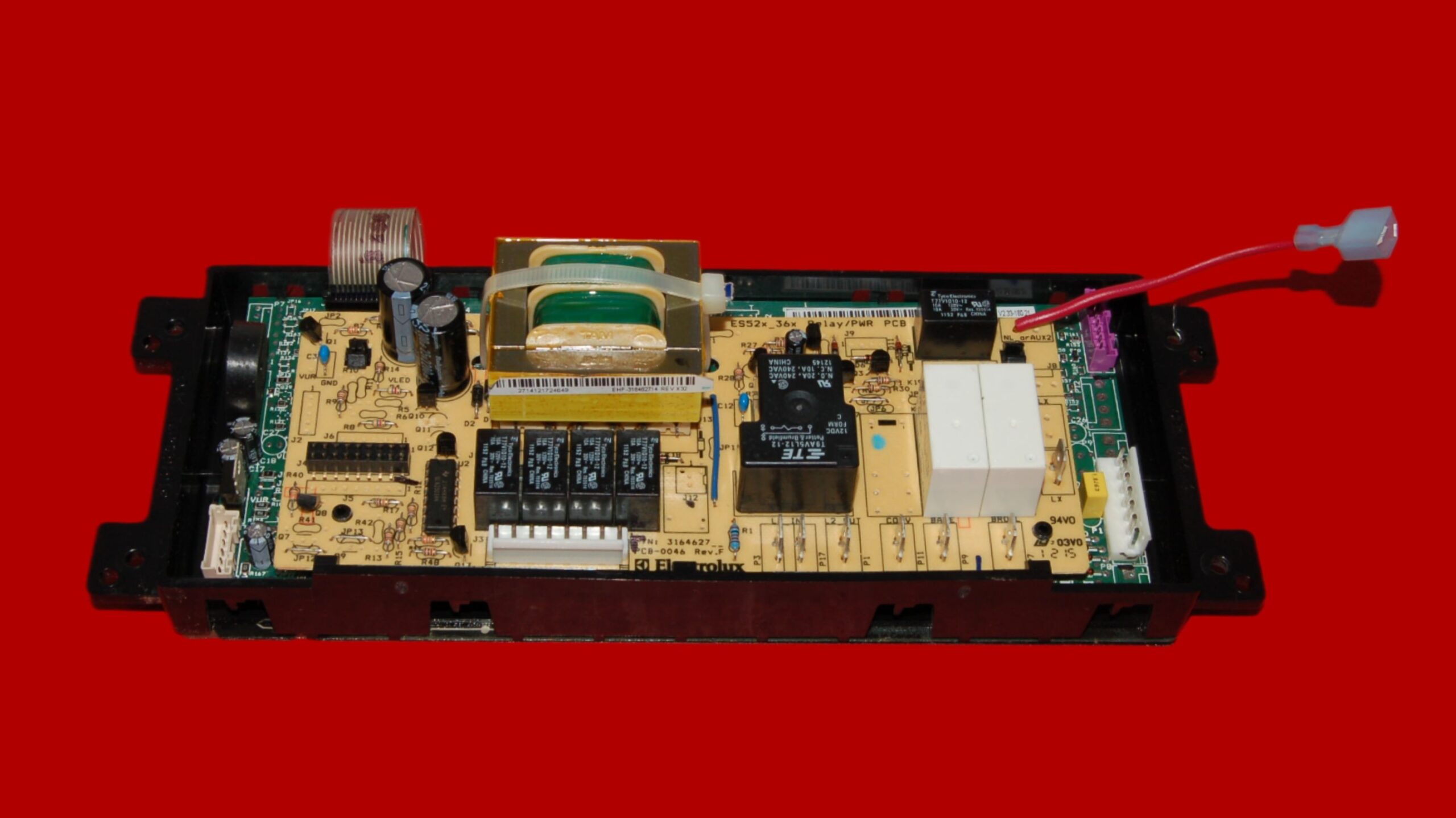

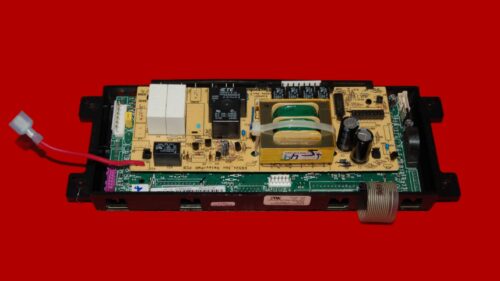

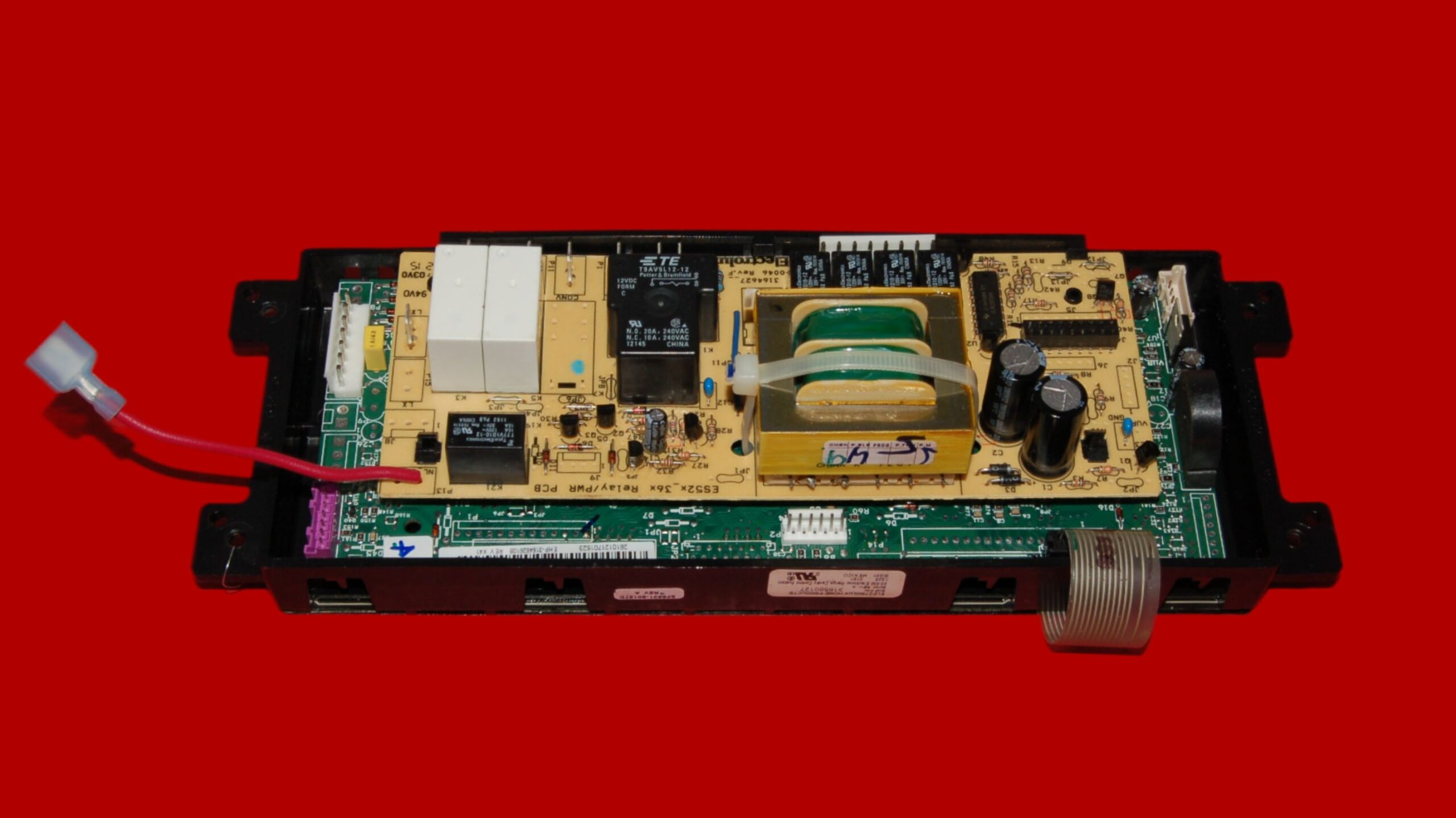

☐ Verify board appearance matches our photos front AND back (wiring ports can differ even when the front looks identical – check both sides).
☐ Not sure? Message us your model # before purchasing – we’ll confirm compatibility.
Shipping Options
Fast and free shipping options are available at checkout.
Warranty And Assurance
6-Month Warranty included for peace of mind.
Specializing in appliance control boards since 2014.
All orders are carefully packaged for safe delivery.
A+ Accredited Business with the BBB.
