Kenmore Gas Oven Control Board 316630005 | OEM Used Tested (overlay fair – White)
$69.00

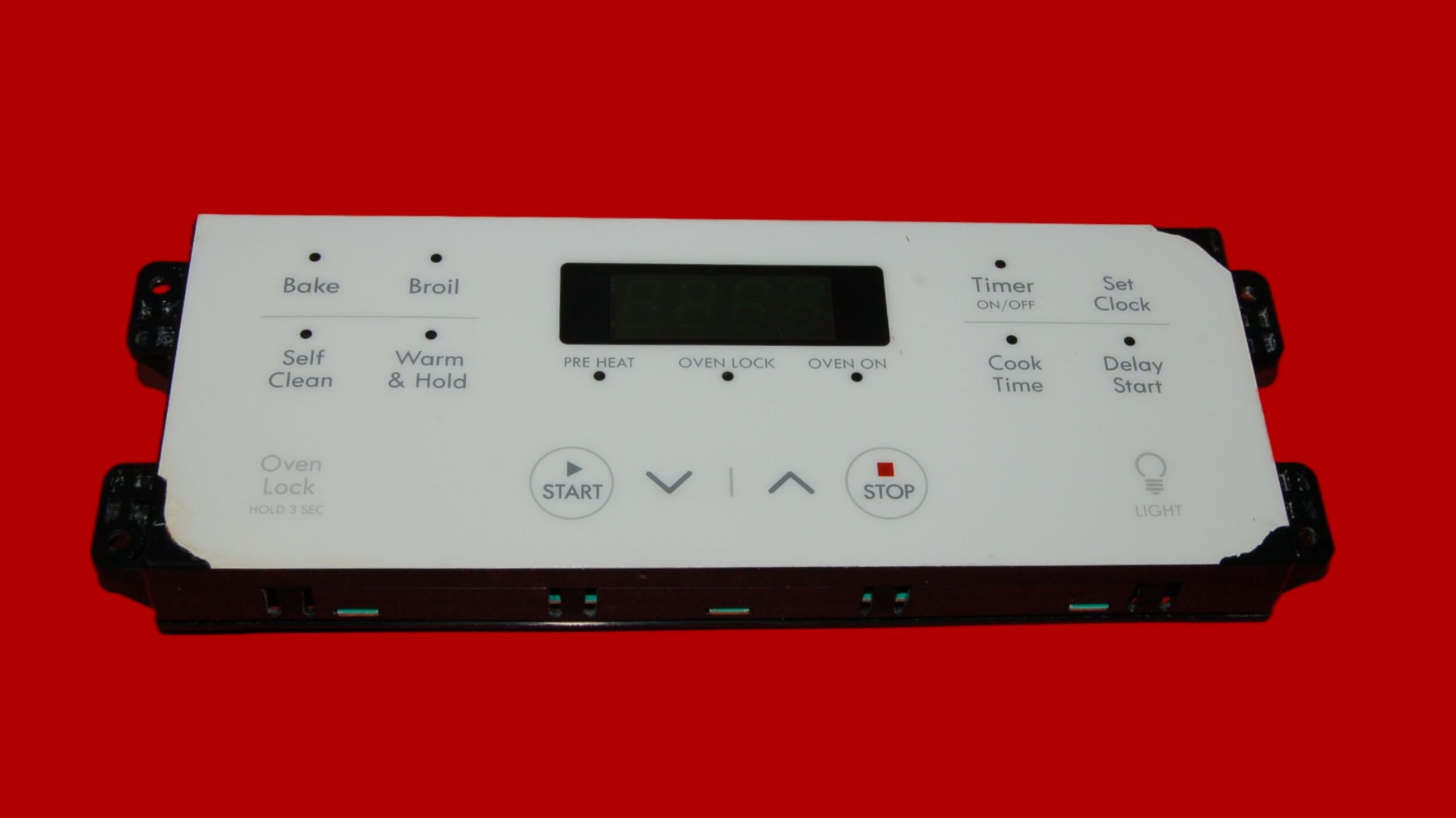

Kenmore Oven Control Board – Part Number 316630005 (Pre-Owned / Tested)
This is a genuine factory original pre‑owned oven control board, expertly tested, cleaned, and fully inspected to ensure proper operation.
Only units that meet our performance standards are offered for sale.
Cross-Reference Part and Model Number Information:
Alternate / Compatible Part #: 316630005 replaces AP5736344, 3016956, PS8689402
Compatible Model Numbers:
790.74032310
790.74032311
790.74032312
790.74033310
790.74033311
790.74033312
790.74033313
790.74039310
790.74039311
790.74039312
790.74043310
790.74132310
790.74132311
790.74132312
790.74132313
790.74132314
790.74133310
790.74133311
790.74133312
790.74133313
790.74133314
790.74134310
790.74134311
790.74134312
790.74134313
790.74134314
790.74139310
790.74139311
790.74139312
790.74139313
790.74139314
Item Condition
Pre-Owned / Used.

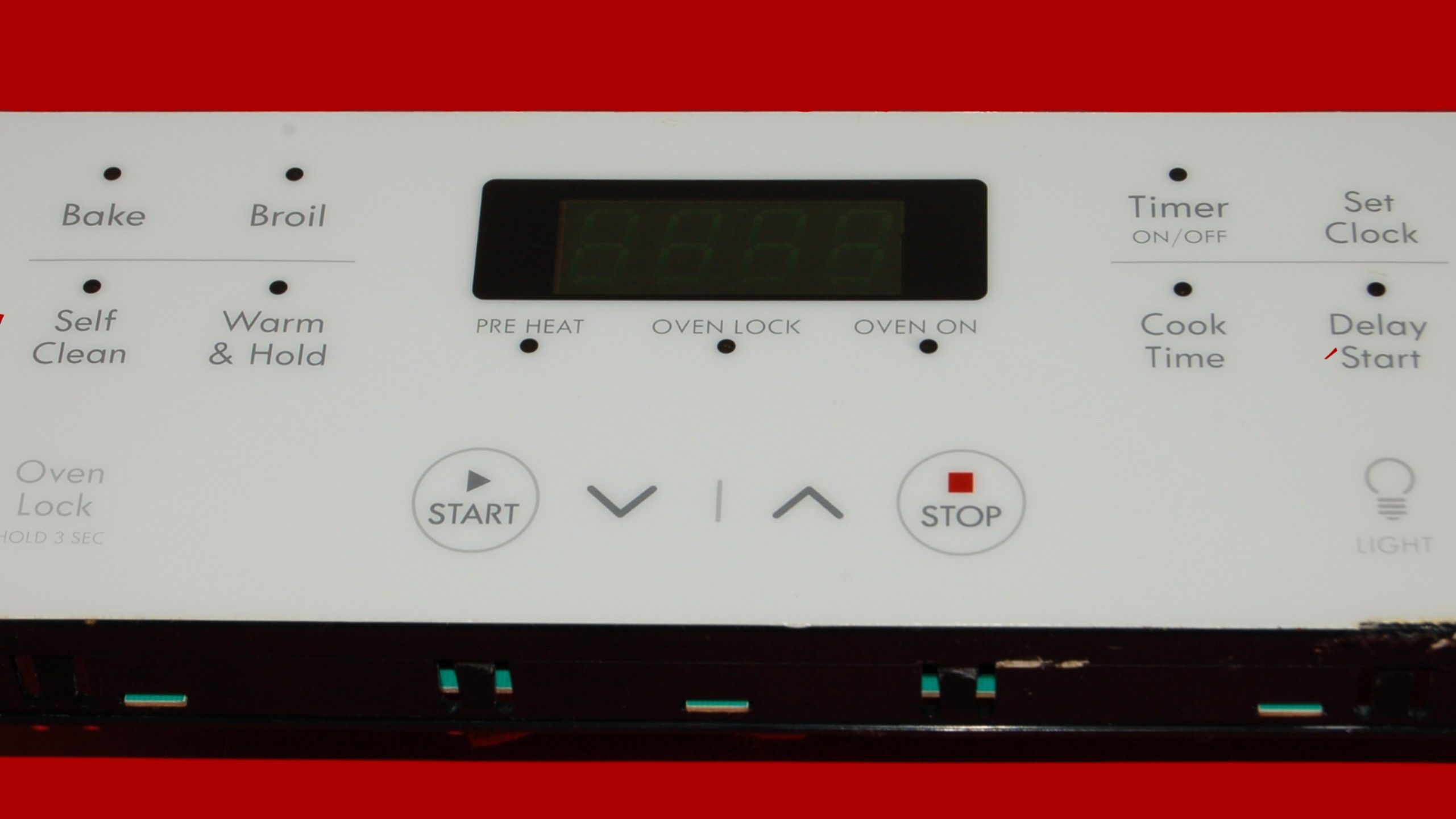

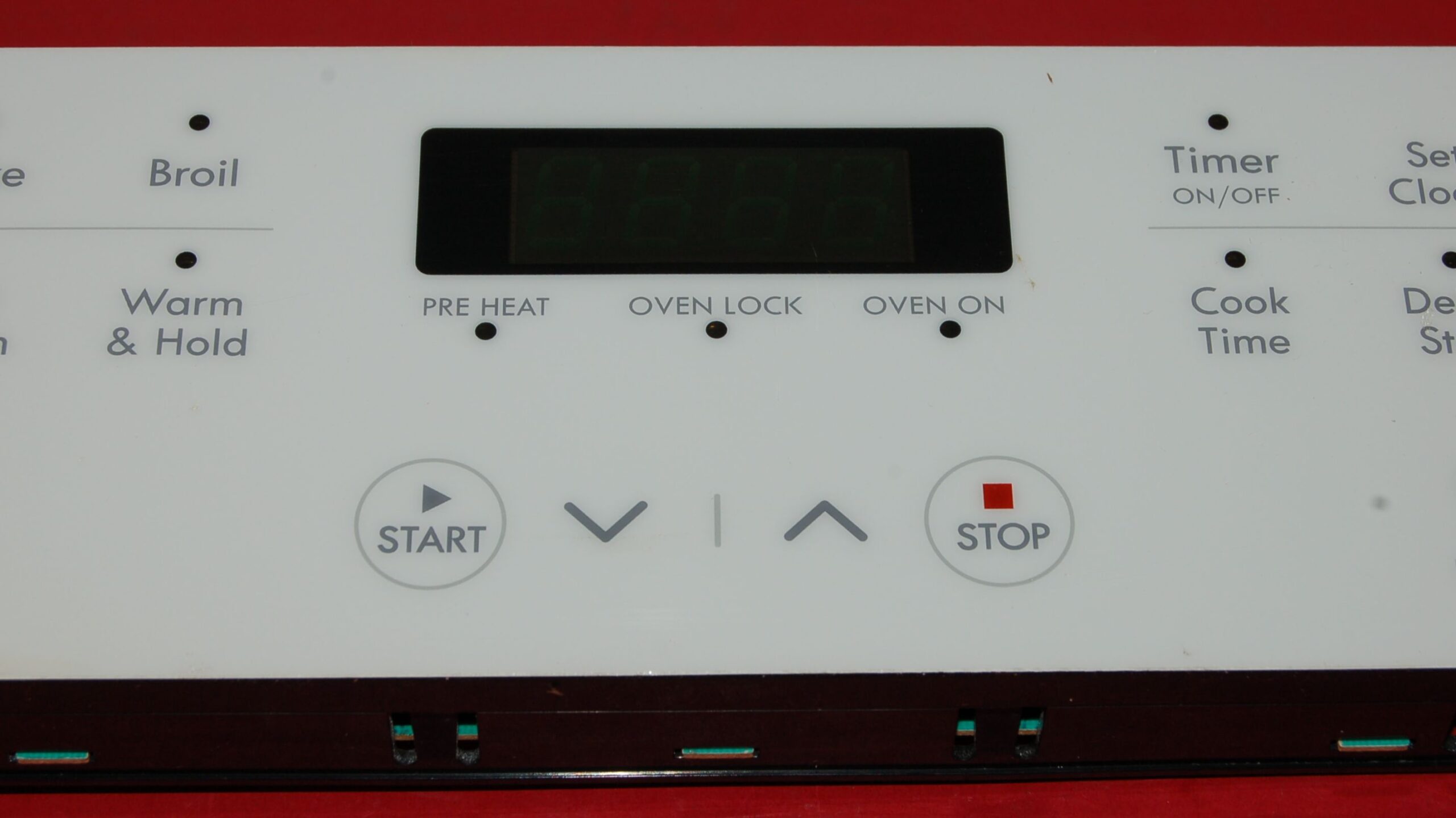

Condition: Overlay Fair: This item does show noticeable wear; it will have marks, scratches, cracks, small nicks, or dings.
Color: White
Power: Gas Appliance
Important Fitment Information
⚠️ Match the part number on your original oven control board exactly to 316630005 before ordering — many oven control boards look identical but are NOT interchangeable, and model numbers alone don’t guarantee compatibility.
What’s Included
1 × Oven Electronic Control Board – 316630005
No additional hardware or accessories included.
Common Reasons for Failure
- Power surges or electrical spikes can damage the oven control circuitry.
- Heat-related stress causes relay or component failure.
- Burned or stuck bake/broil relays are preventing proper heating operation.
- Worn or cracked solder joints from repeated high-temperature cycles.
- Failed internal components affecting temperature regulation or timing.
Common Symptoms This Part May Fix
- Oven not heating or heating inconsistently.
- Oven shutting off unexpectedly or fails to turn on.
- No display or partial display on the control board.
- Unresponsive buttons or keypad inputs (when the keypad is separate).
- Error codes related to temperature or electronic control faults.
(Symptoms vary by model and application)
BEFORE YOU BUY – VERIFY:
- Check your appliance’s model number – from the list of compatible Model Numbers provided.

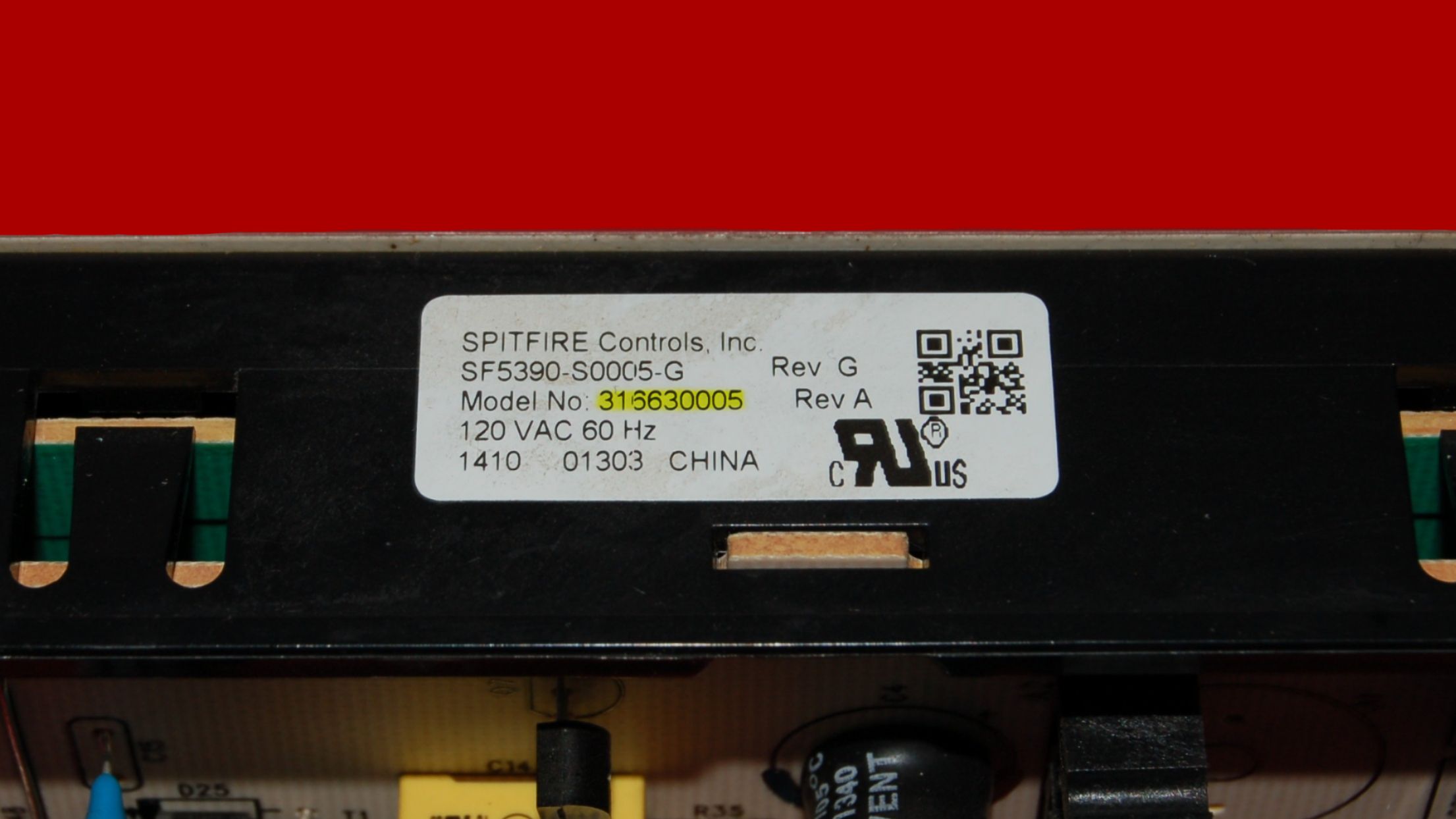

- Compare our Part Number EXACTLY to your failed board – must match 100% – removal of your control board is required to find part number sticker.

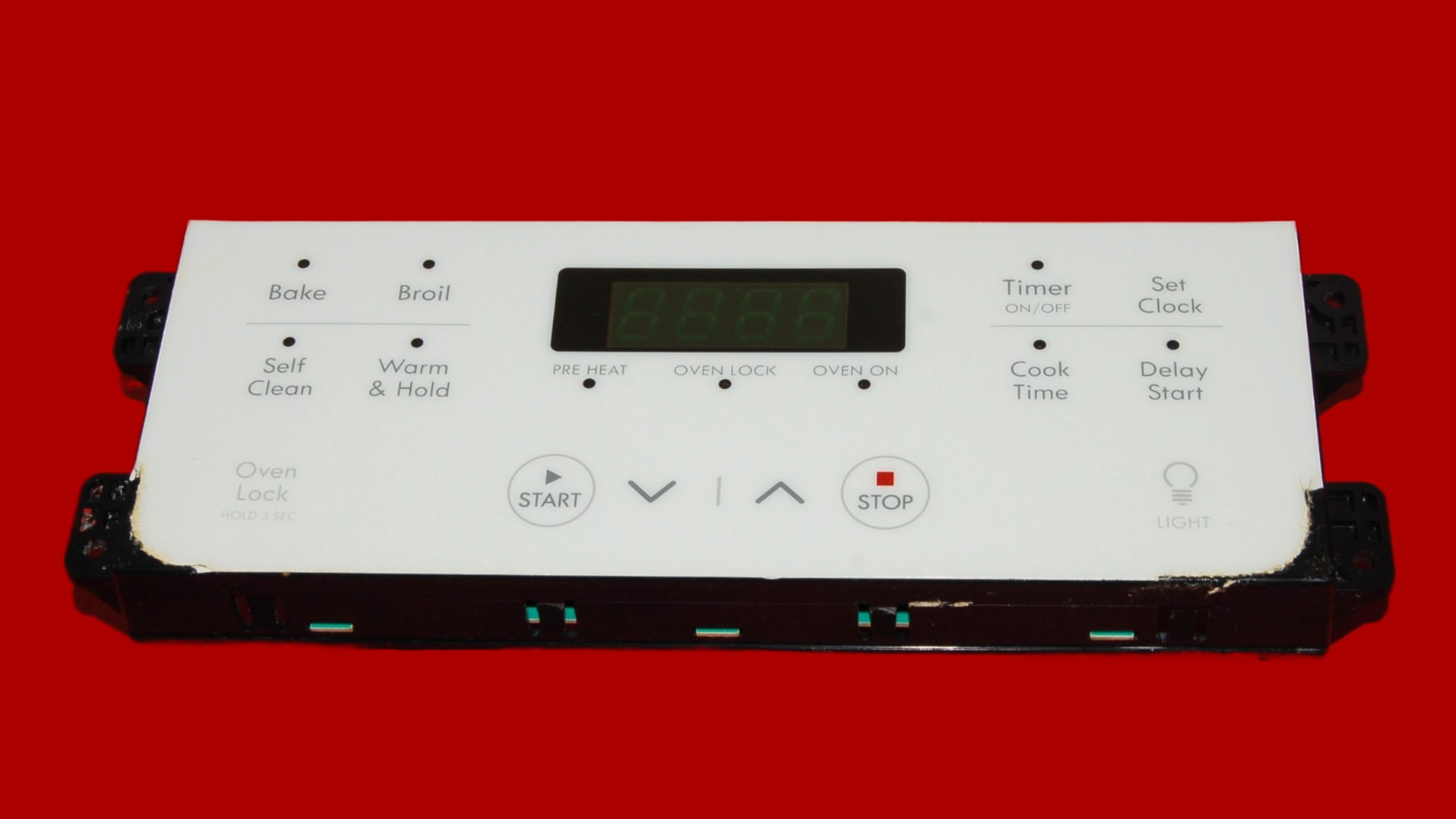

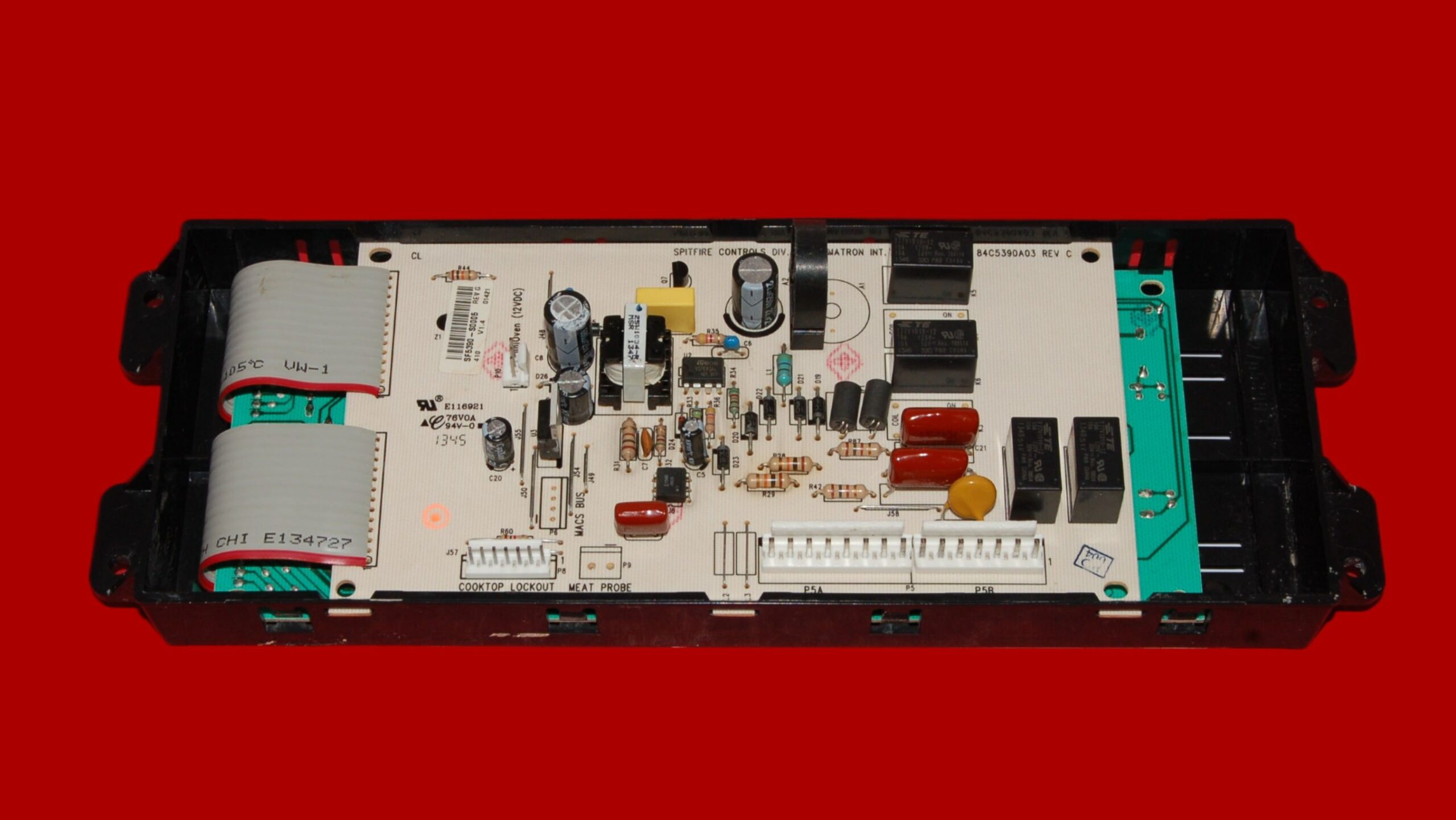

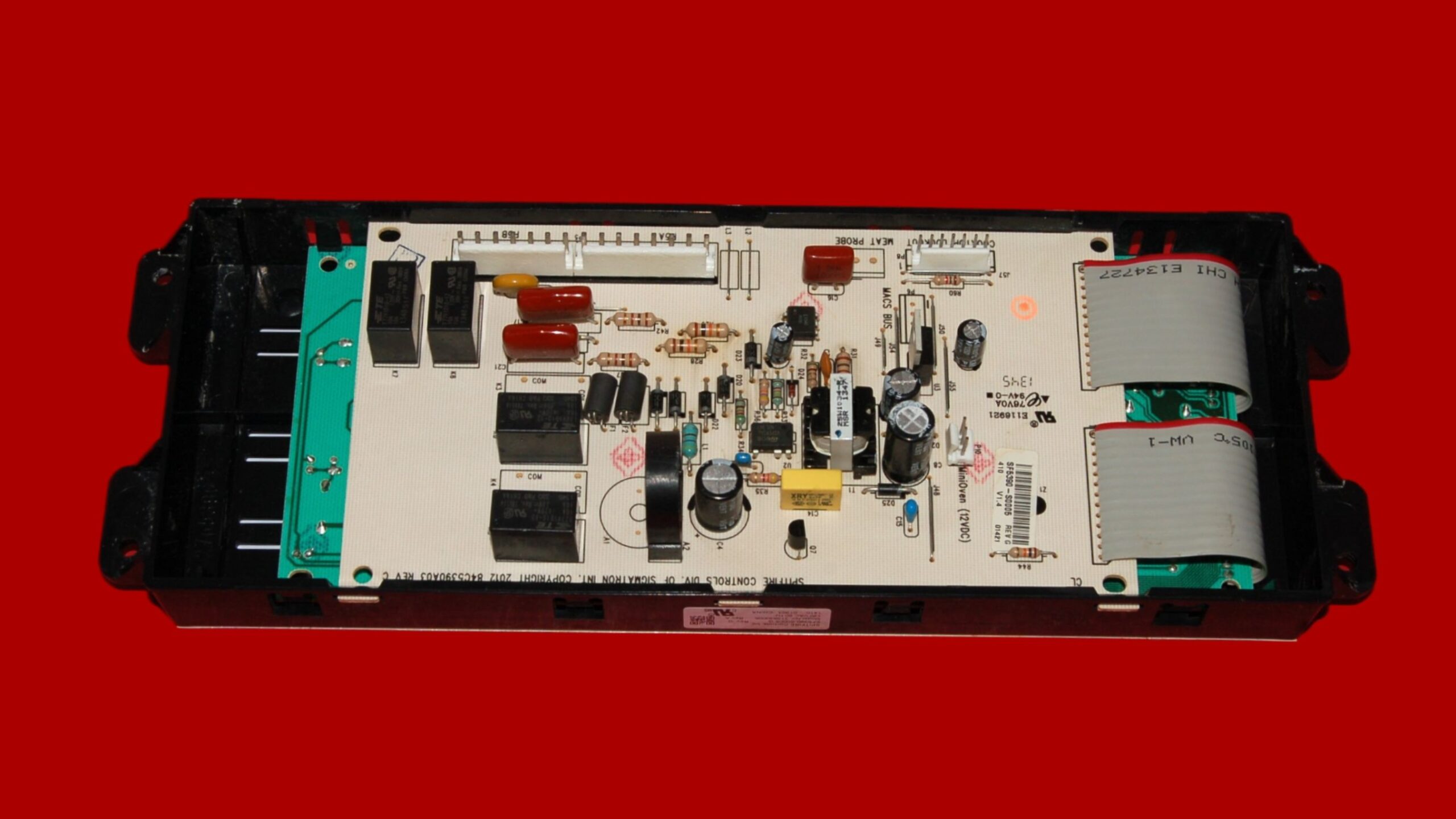

- Verify board appearance matches our photos front AND back – wiring ports can differ even when the front looks identical – check both sides.
- Not sure? Message us your model # before purchasing – we’ll confirm compatibility.
Shipping Options
Fast and free shipping options are available at checkout.
Warranty And Assurance
6-Month Warranty included for peace of mind.
Specializing in appliance control boards since 2014.
All orders are carefully packaged for safe delivery.
A+ Accredited Business with the BBB.
Shop with Confidence. All of our pre-owned appliance electronic control boards have been tested, cleaned, and are guaranteed to work. Every part comes with our standard 6-month warranty.
Model numbers and cross-reference part numbers were obtained from AppliancePartsPros.com.
