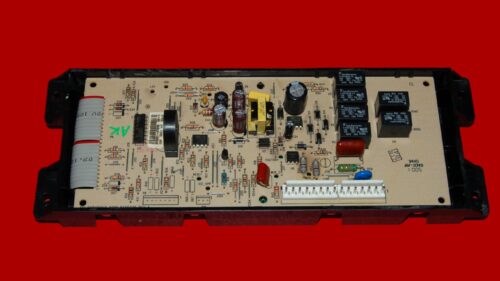

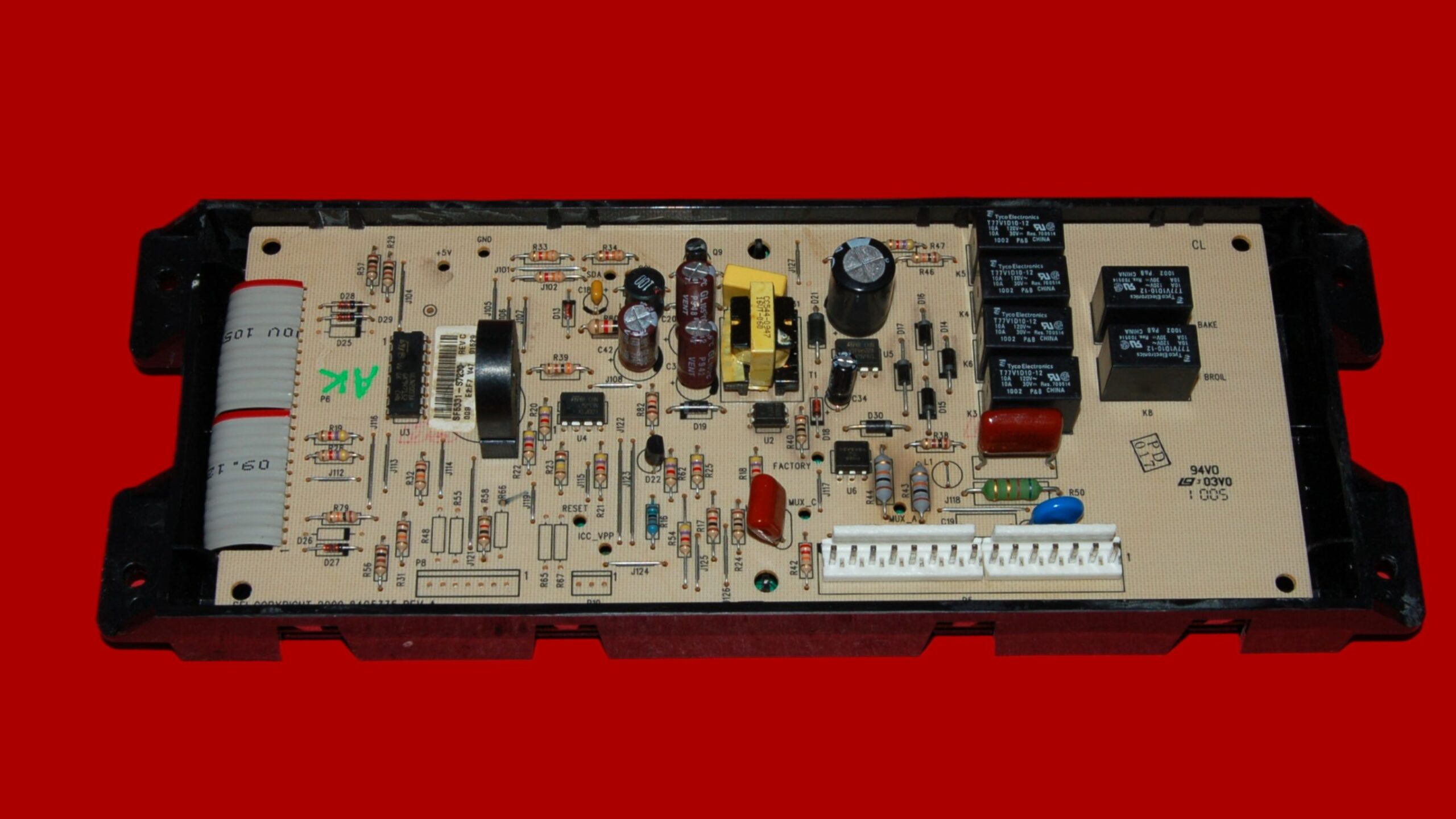

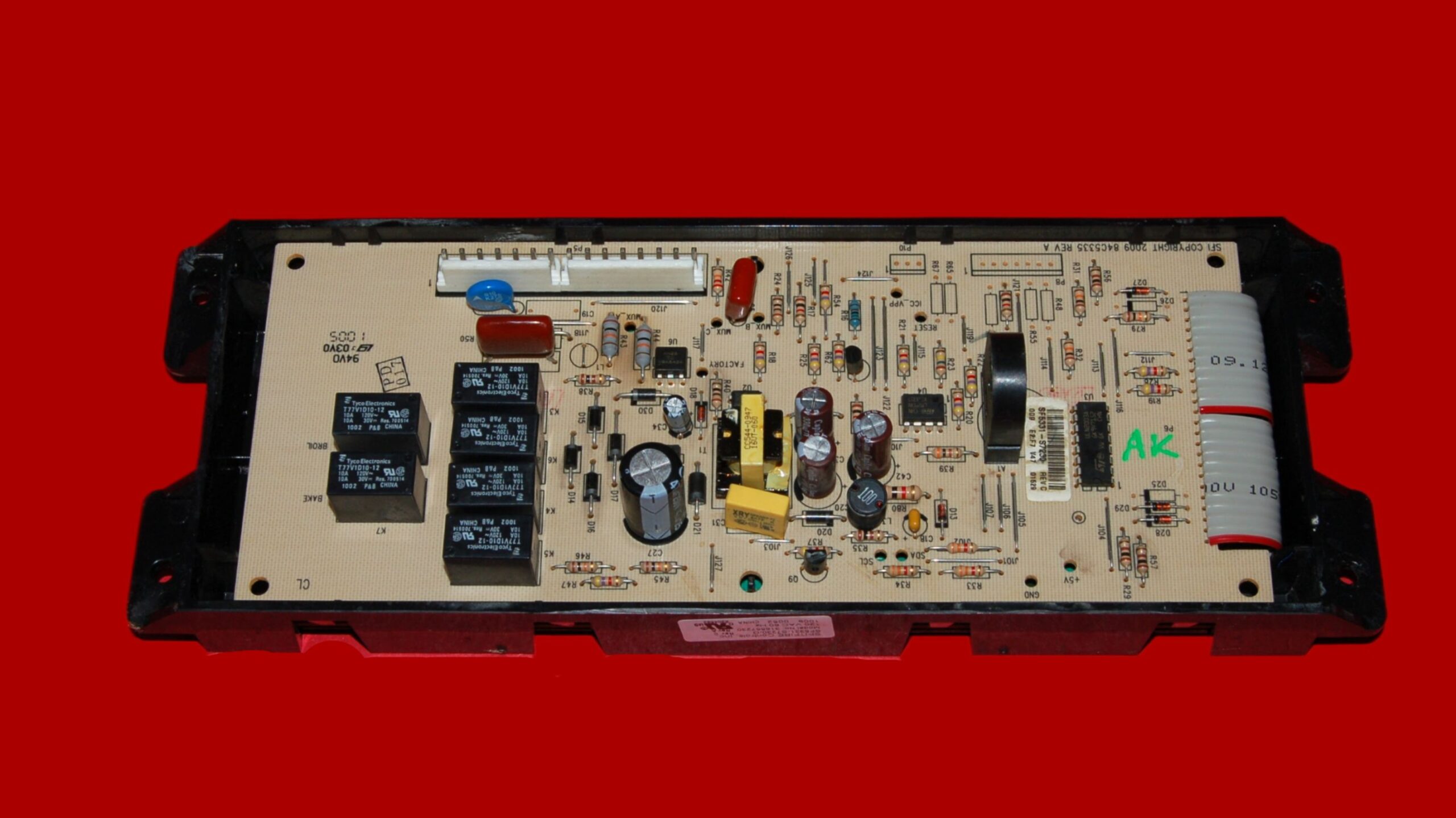

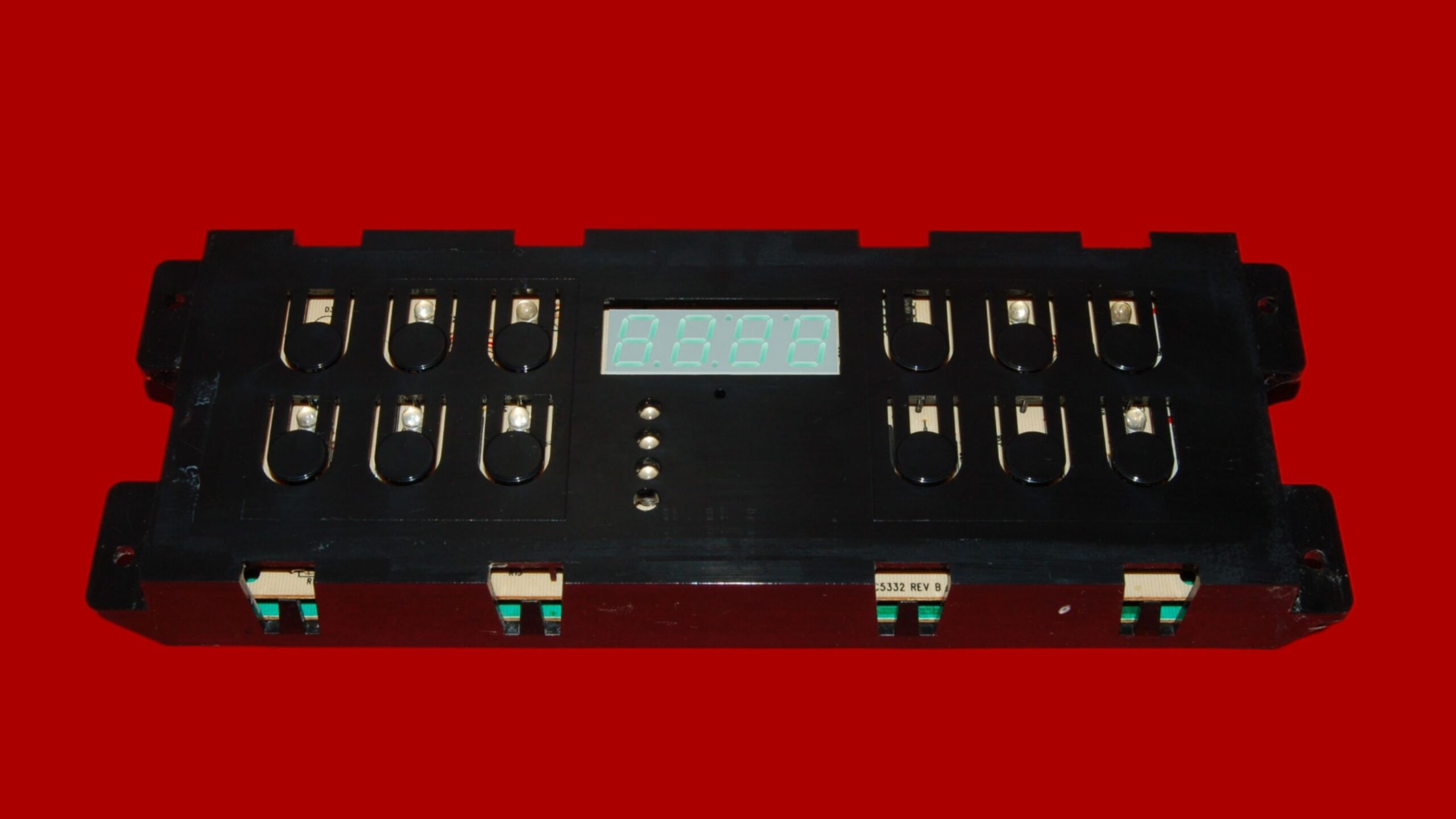

Kenmore Oven Control Board – Part Number 316557230 (Pre-Owned / Tested)

This is a genuine factory original pre‑owned oven control board, expertly tested, cleaned, and fully inspected to ensure proper operation.
Only units that meet our performance standards are offered for sale.

Item Condition

Pre-Owned / Used.

Power: Gas Appliance

Common Reasons for Failure

• Power surges or electrical spikes can damage the oven control circuitry.
• Heat-related stress causes relay or component failure.
• Burned or stuck bake/broil relays are preventing proper heating operation.
• Worn or cracked solder joints from repeated high-temperature cycles.
• Failed internal components affecting temperature regulation or timing.

Common Symptoms This Part May Fix

• Oven not heating or heating inconsistently.
• Oven shutting off unexpectedly or fails to turn on.
• No display or partial display on the control board.
• Unresponsive buttons or keypad inputs (when the keypad is separate).
• Error codes related to temperature or electronic control faults.

(Symptoms vary by model and application)

Important Fitment Information

⚠️ Please match the part number on your original oven control board exactly to 316557230 before ordering.

Many oven control boards look identical but are NOT interchangeable.
Appliance model numbers alone are not sufficient to guarantee compatibility.

Cross-Reference Part and Model Number Information:

Alternate / Compatible Part #: 316557230 replaces AP4510794, 1564997, 316418330, AH2378937, EA2378937, PS2378937



Compatible Model Numbers:

790.72712210
790.72712211
790.72712212
790.72713210
790.72713211
790.72713212
790.72719210
790.72719211
790.72719212
790.72902010
790.72902011
790.72902012
790.72902013
790.72902014
790.72902015
790.72903010
790.72903011
790.72903012
790.72903013
790.72903014
790.72903015
790.72904010
790.72904011
790.72904012
790.72904013
790.72904014
790.72904015
790.72909010
790.72909011
790.72909012
790.72909013
790.72909014
790.72909015
790.77482800
790.77482801
790.77482802
790.77482803
790.77482804
790.77482805
790.77483800
790.77483801
790.77483802
790.77483803
790.77483804
790.77483805
790.77483806
790.77483807
790.77484800
790.77484801
790.77484802
790.77484803
790.77484804
790.77484805
790.77489800
790.77489801
790.77489802
790.77489803
790.77489804
790.77489805

What’s Included

1 × Oven Electronic Control Board – 316557230
No overlay, keypad, or membrane included.
No additional hardware or accessories included.

BEFORE YOU BUY – VERIFY:

☐ Check your appliance’s model number (from the list of compatible Model Numbers provided).

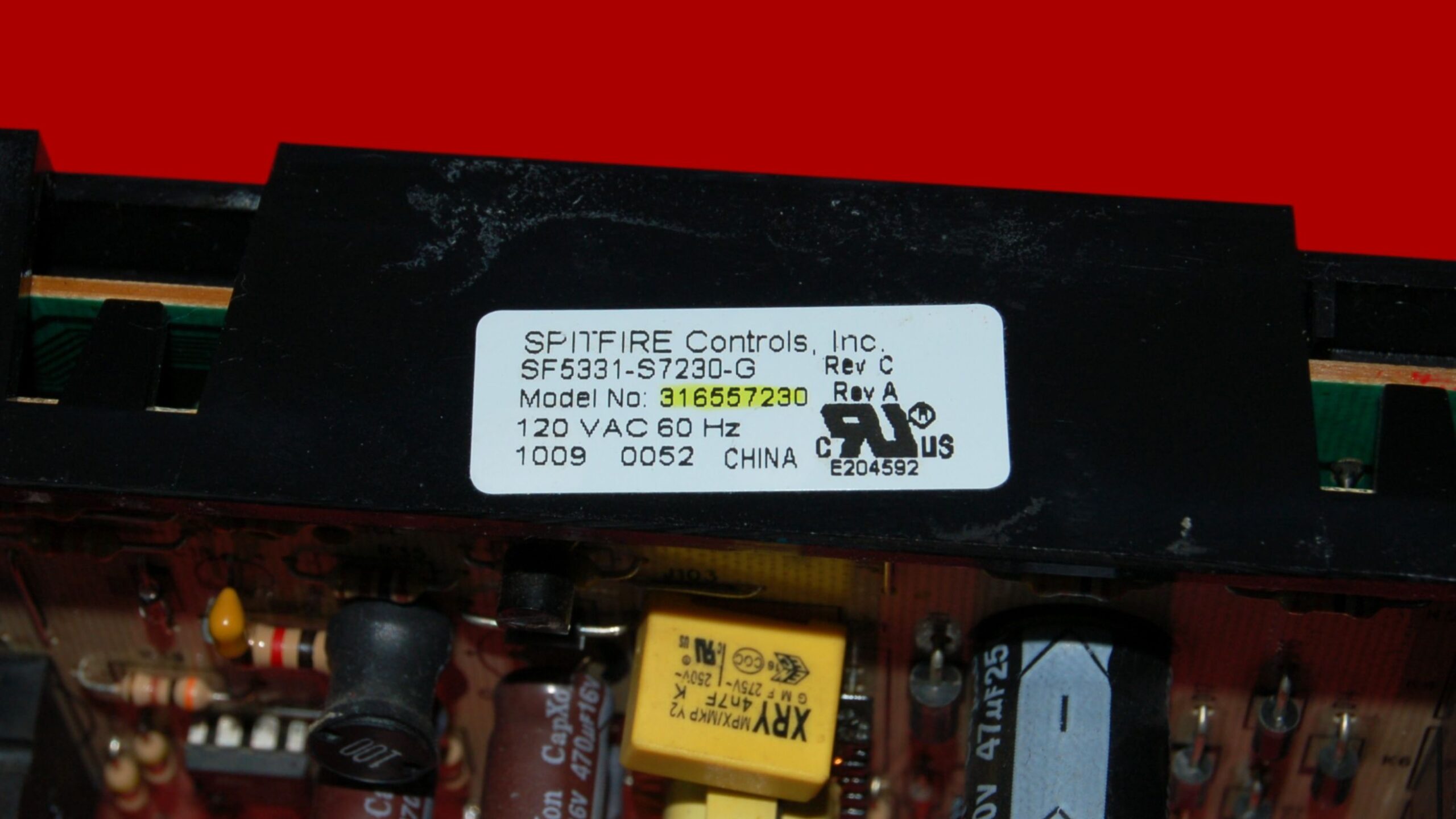

☐ Compare our Part Number EXACTLY to your failed board – must match 100% (removal of your control board is required to find part number sticker).

☐ Verify board appearance matches our photos front AND back (wiring ports can differ even when the front looks identical – check both sides).

☐ Not sure? Message us your model # before purchasing – we’ll confirm compatibility.

Shipping Options

Fast and free shipping options are available at checkout.
Priority Mail (Recommended): Orders placed before 2 PM ship the same business day—best choice for time-sensitive repairs and buyers who want the most reliable handling.
Ground Shipping (Free): Ships within 1 business day. Delivery times may be similar for nearby locations; however, delivery times are generally longer than Priority Mail.

Warranty And Assurance

6-Month Warranty included for peace of mind.
Specializing in appliance control boards since 2014.
All orders are carefully packaged for safe delivery.
A+ Accredited Business with the BBB.

Model numbers and cross-reference part numbers were obtained from
AppliancePartsPros.com.
